Fancom VLR.6 Manual page 15

Only for US and
Canada models
220-240Vac
L/L1 (H)
L
220-240Vac
(110-120Vac)
N/L2 (N)
N
50-60Hz
50-60Hz
3x2,5mm 2
12AWG
* ) Factory setting
IMPORTANT!!!
All the equipment
must be grounded correctly
Connect Fancom equipment according to the prevailing
standards of the local electricity company.

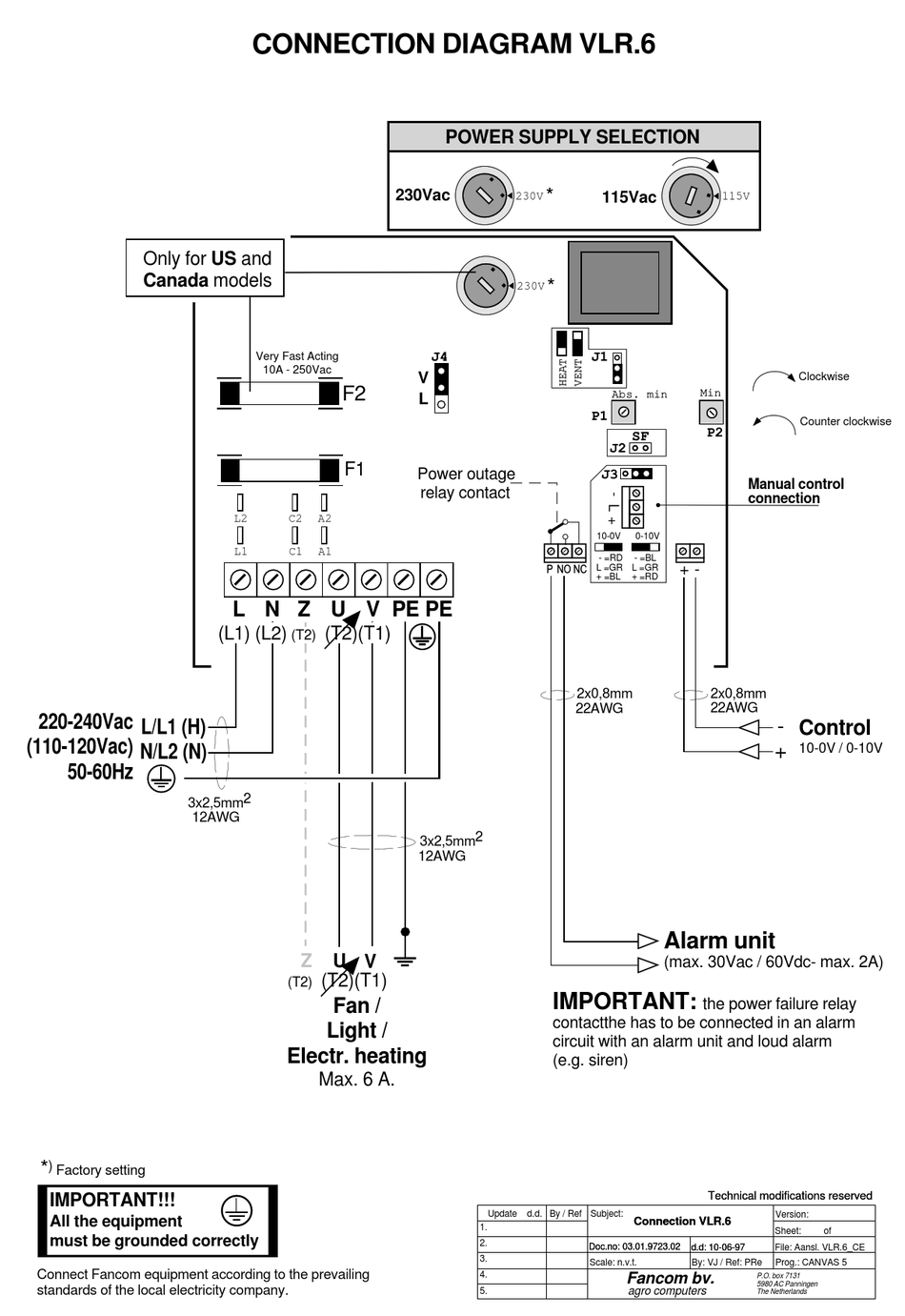

CONNECTION DIAGRAM VLR.6
Very Fast Acting
10A - 250Vac
F2
F1
L2 C2 A2
L1 C1 A1
L N Z U V
(L1) (L2) (T2)(T1)
(T2)
Z U V
(T2)(T1)
(T2)
Fan /
Light /
Electr. heating
Max. 6 A.
POWER SUPPLY SELECTION
*
230Vac
230V
*
230V
J4
V
L
Power outage
relay contact
P NO NC
PE PE
3x2,5mm 2
12AWG
IMPORTANT:
contactthe has to be connected in an alarm
circuit with an alarm unit and loud alarm
(e.g. siren)
Update d.d. By / Ref
1.
2.
3.
4.
5.
115Vac
115V
J1
Min
Abs. min
P1
P2
SF
J2
J3
10-0V 0-10V
- =RD - =BL
+ -
L =GR L =GR
+ =BL + =RD
2x0,8mm 2x0,8mm
22AWG 22AWG
Alarm unit
(max. 30Vac / 60Vdc- max. 2A)
the power failure relay
Technical modifications reserved Technical modifications reserved
Subject:
Connection VLR.6 Connection VLR.6
Doc.no: 03.01.9723.02 Doc.no: 03.01.9723.02 d.d: 10-06-97 d.d: 10-06-97
Scale: n.v.t. By: VJ / Ref: PRe
Fancom bv.
agro computers
Clockwise
Counter clockwise
Manual control
connection
-
Control
+ 10-0V / 0-10V
Version:
Sheet: of
File: Aansl. VLR.6_CE
Prog.: CANVAS 5
P.O. box 7131
5980 AC Panningen
The Netherlands
