88 5601 20

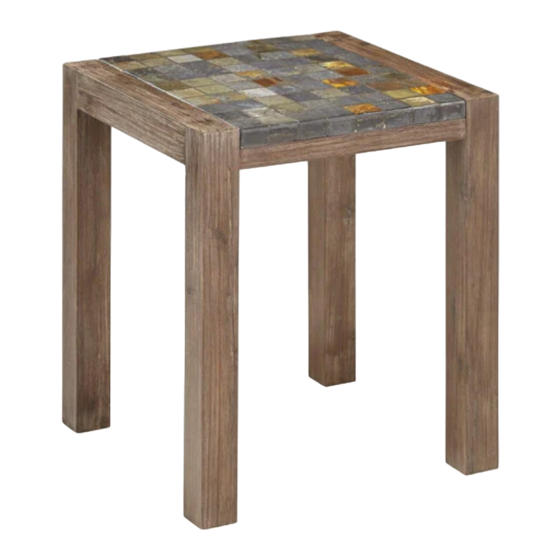

End Table
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
Hardware List
Hex Wrench
1 Pc.
Small Hex Wrench
1 Pc.
Tools required for assembly : Phillips screwdriver
A.
Top
1 Pc.
C.
Frame
1 Pc.
M8x50
Head Cap Bolt (short)
2 Pcs. (+1 extra)
M8x60
Head Cap Bolt (long)
4 Pcs. (+1 extra)
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
B.
Leg
2 Pcs.
Flat Washer
4 Pcs. (+1 extra)
Spring Washer
4 Pcs. (+1 extra)
Tools recommended for assembly : Level
M6x15
Tapered Head Cap Bolt
4 Pcs. (+1 extra)
Connector
4 Pcs.
