88 5601 22

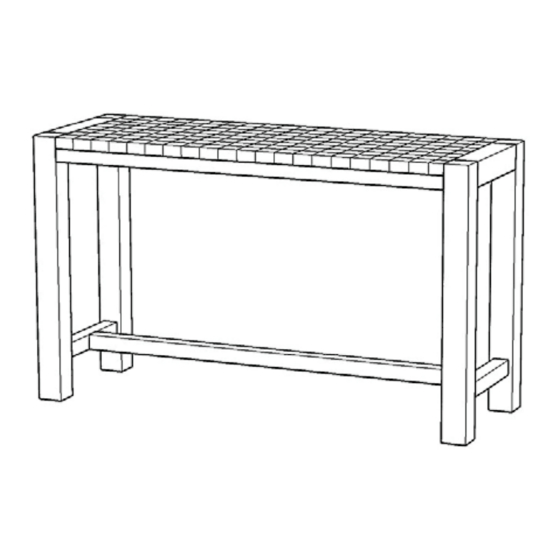

Console Table
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
Hardware List
Hex Wrench
1 Pc.
Small Hex Wrench
1 Pc.
Tools required for assembly : Phillips screwdriver
A.
Top
1 Pc.
C.
Frame
1 Pc.
D.
Stretcher
1 Pc.
M8x50
Head Cap Bolt (short)
2 Pcs. (+1 extra)
M8x60
Head Cap Bolt (long)
4 Pcs. (+1 extra)
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
Flat Washer
4 Pcs. (+1 extra)
M6x40
Spring Washer
Head Cap Bolt (small)
4 Pcs. (+1 extra)
4 Pcs. (+1 extra)
Tools recommended for assembly : Level
B.
Leg
2 Pcs.
M6x15
Tapered Head Cap Bolt
4 Pcs. (+1 extra)
Connector
4 Pcs.
Advertisement
Related Manuals for Home Styles 88 5601 22
Summary of Contents for Home Styles 88 5601 22
- Page 1 Head Cap Bolt (small) 4 Pcs. 1 Pc. 4 Pcs. (+1 extra) 4 Pcs. (+1 extra) 4 Pcs. (+1 extra) Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2 IMPORTANT * Please keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Do not tighten up all the Head Cap Bolts until each part is properly assembled. * Use a soft cloth between these parts and the fl...
