88 5601 32

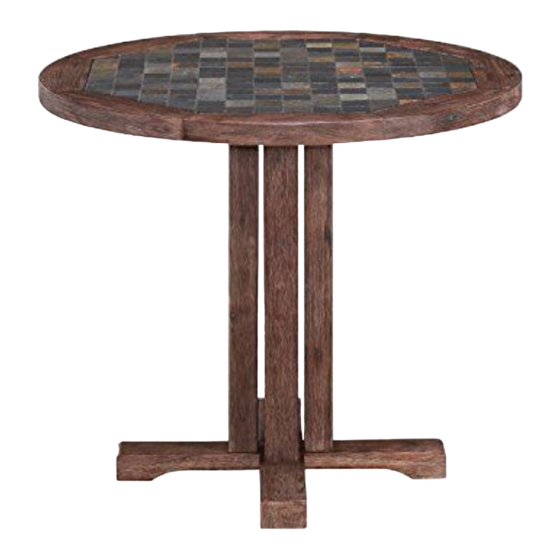

Dining Table
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

Part List

B.
Support
1 pc.
E.
Base
1 pc.

Hardware List

Small
Key Wrench
Hex Wrench
1 pc.
1 pc.
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
A.
Top
1 pc.
Support
1 pc.
M6x40
Head Cap Bolt
Flat Washer
(long)
4 pcs.(+1 extra)
4 pcs.(+1 extra)
C.
F.
Base
1 pc.
M8x40
Head Cap Bolt
8 pcs.(+1 extra)
Tools recommended for assembly : Level
D.
Leg
4 pcs.
M6x20
Head Cap Bolt
(short)
1 pc. (+1 extra)
