88 5
600 0
8

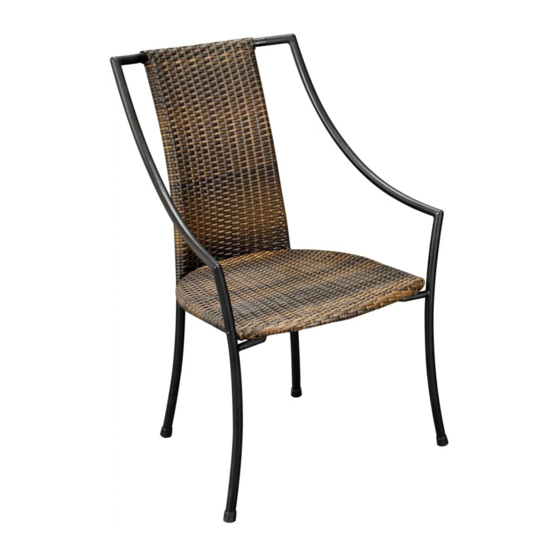

Laguna Chair
(Walnut Brown Woven Vinyl)
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Unit Part List
B.
A.
Leg
Seat
1 pc.
1 pc.
STEP 1
Attach Seat (A) and Leg (B)
to Back Frame (D) with
Head Cap Bolts.
E
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319
D.
C.
Leg
Back Frame
1 pc.
1 pc
the tie-downs on back of Cushion (E) to attach to chair.
servicedesk@homestyles-furniture.com
E.
Cushion
.
1 pc
.
B
Head Cap Bolt
C
Turn the Chair to its' upright position.
Place Cushion (E) onto seat. Use
Hardware List
Head Cap Bolt
6 pcs.(+1 extra)
A
D
STEP 2
Attach Leg (C) to unit
with Head Cap Bolts.
