3.5 MODULE ADDRESS SWITCH

For digital interface applications the module address switch (or Modbus node) must be set per Table 3-2:
For Sentry applications only sensor addresses 1-8 are allowed. If using Modbus output sensor
addresses 1-15 are available. Position 0 allows the Modbus Address to be set by software
P A
OSITION DDRESS
1 Sensor 1
2 Sensor 2
3 Sensor 3
4 Sensor 4
5 Sensor 5
6 Sensor 6
7 Sensor 7
8 Sensor 8
Table 3-2
Sensor Module Address Switch Positions
N
OTE
menu, in the range 16-254.

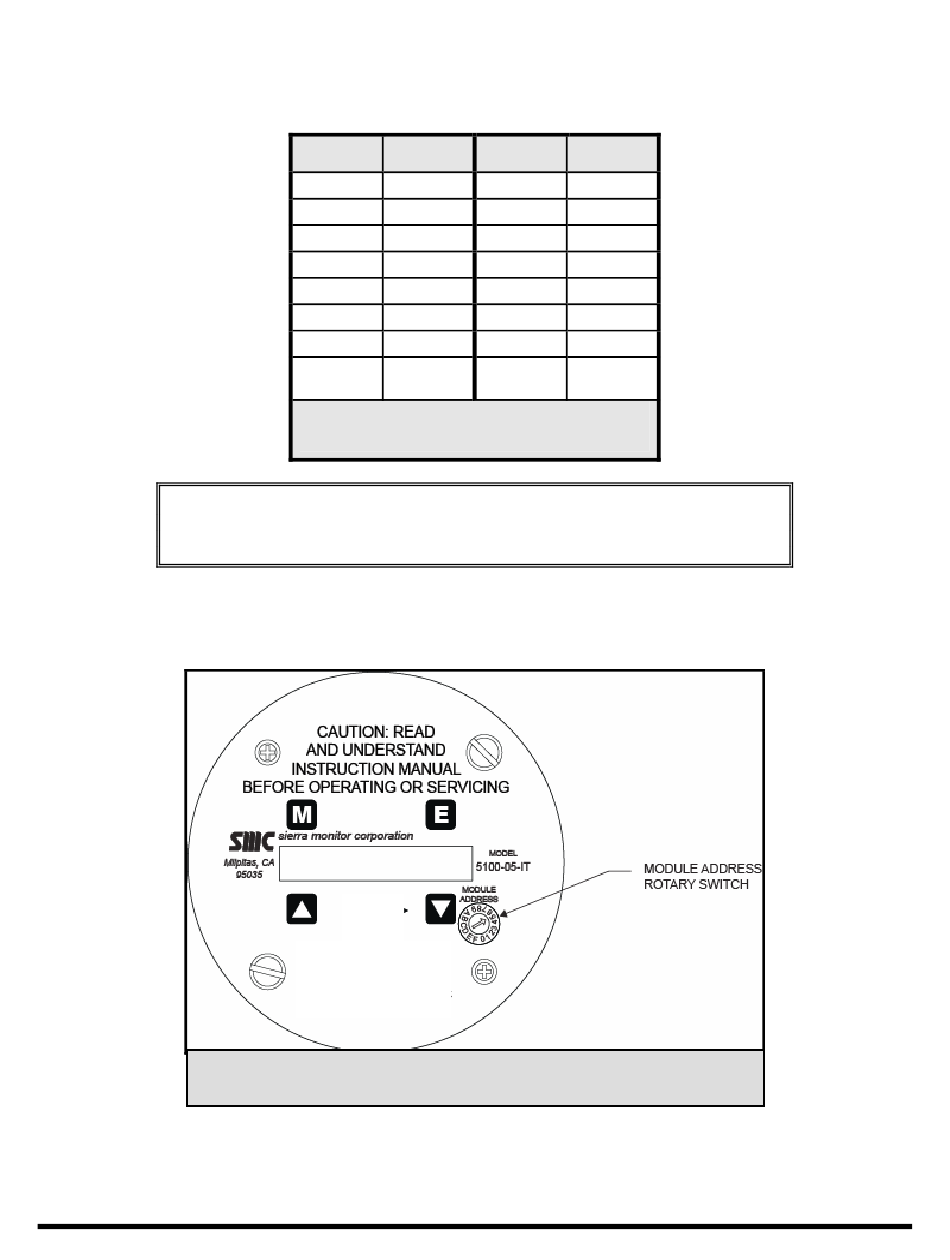

Figure 3-1
Transmitter Face Plate
Page: 10
P A
OSITION DDRESS
9 Sensor 09
A Sensor 10
B Sensor 11
C Sensor 12
D Sensor 13
E Sensor 14
F Sensor 15
0 Software
Menu
