4.1 INTRODUCTION – HUMAN-MACHINE INTERFACE SYSTEM
The Gas Sensor Module utilizes a visual menu system operated by means of a magnet. A magnetic tool
(5358-50) is supplied for this purpose. The menu system is used to configure alarm set-points, calibrate the
sensor module, and for maintenance procedures and alarms acknowledge.

4.2 HUMAN-MACHINE INTERFACE

The module menu system is operated by means of directing the magnet stick toward each of four independent
hall-effect magnetic switches. Each switch functions as if it is a manually activated panel key. The keys are
located above and below the faceplate display and are labeled
key functions are as follows:
•
Key : MODE
M
•
Key : ENTER
E
•
Key ▲: UP (+)
•
Key ▼: DOWN (-)

4. OPERATION

Key M
Key /\

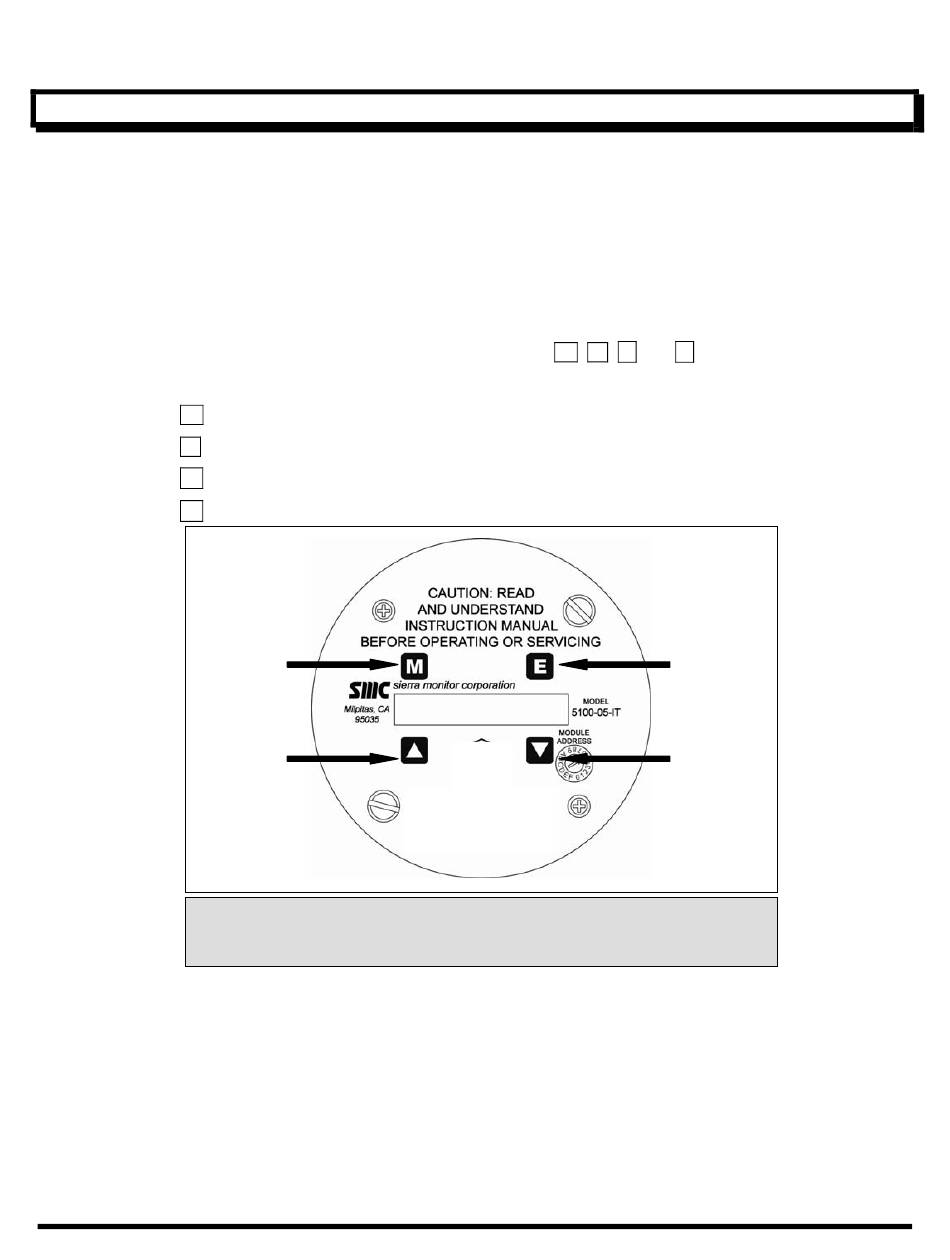

IT Module – Menu Switch Locations
, , ▲ and ▼as shown in Figure 4-1. The
M E
Figure 4-1:
Page: 17
Key E
Key \/
