EVALUATION SOFTWARE COMPONENTS

MAIN WINDOW

The AD9520 evaluation software is composed of subsections
that correspond to the major functional blocks of the AD9520.
These subsections are listed in the following sections, and each
of these subsections has its own window. From the main
window, each functional block can be accessed by clicking that
block in the main window.

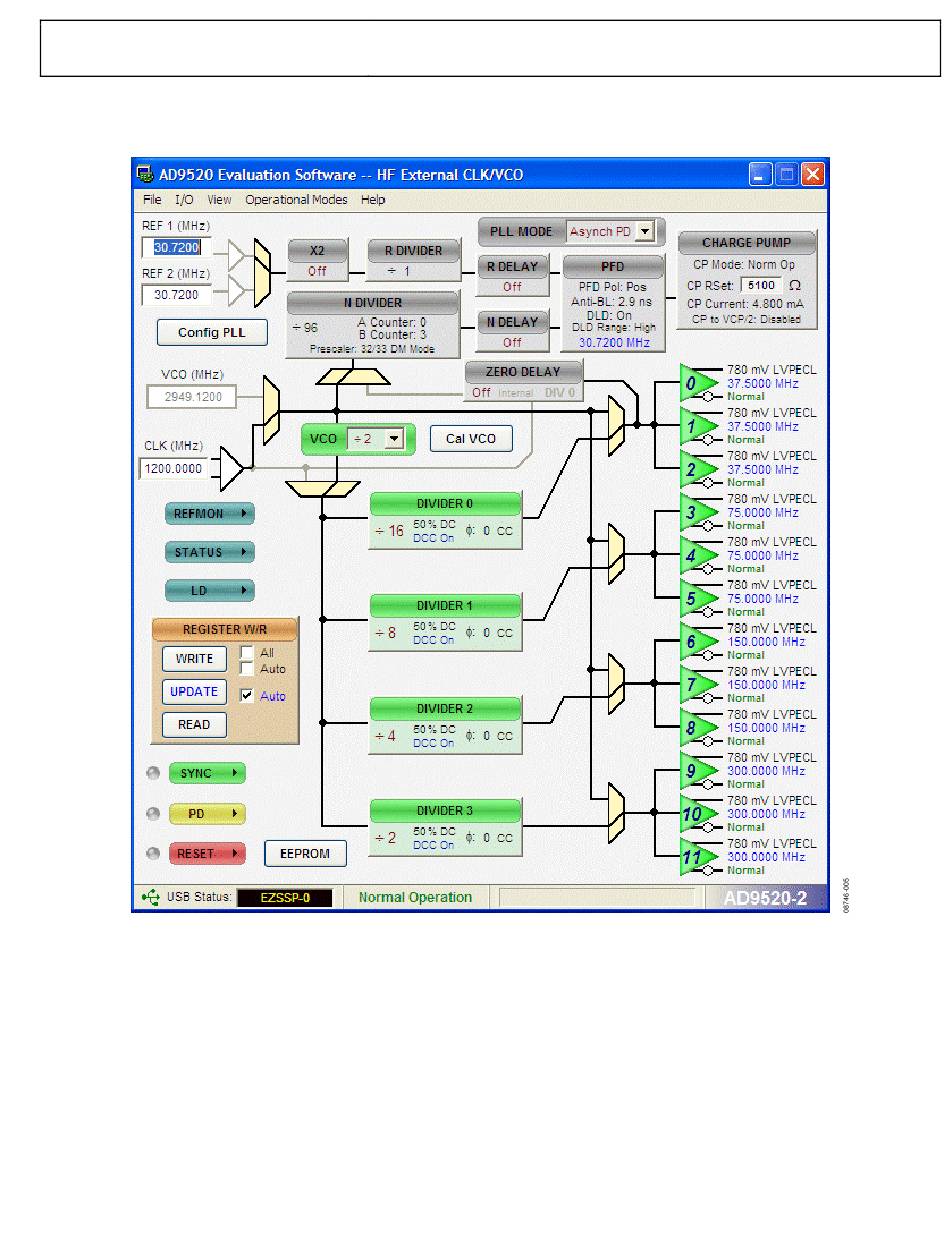

Figure 8. Evaluation Software Main Window
When a subwindow closes after clicking OK, the WRITE box
on the main window (under the REGISTER W/R section) may
blink red. This indicates that there are settings that have not been
loaded to the
red WRITE box loads these settings to the evaluation board.
Rev. A | Page 7 of 16
AD9520 evaluation board. Clicking the blinking
UG-076
