Evaluation Board User Guide
EVALUATION SOFTWARE MENU ITEMS
MENU BAR
File Menu
The file menu has the following options.
Load Setup
Clicking Load Setup loads a previously saved
(.stp). A setup file is a text file that contains the
setup file, plus any evaluation board settings. Note that the user
must still perform a VCO calibration.
Save Setup
Clicking Save Setup saves an
file is a text file that contains the
plus any evaluation board settings.
Generate Binary File
Click this menu option to generate binary setup files that can be
used by EEPROM programmers.
Exit
Click Exit to exit the evaluation software. No checking is
performed to ensure that the existing setup is saved.
I/O Menu
The I/O menu includes the following options.
Select Evaluation Board
The
AD9520
evaluation system allows one PC to control
multiple evaluation boards. This window allows the user to
select which evaluation board the software is controlling. Click
Refresh List to detect a recently connected evaluation board
(see Figure 25).
Figure 25. Select USB Device Window
AD9520
setup file
AD9520
register
AD9520
setup file (.stp). A setup
AD9520
register setup file,

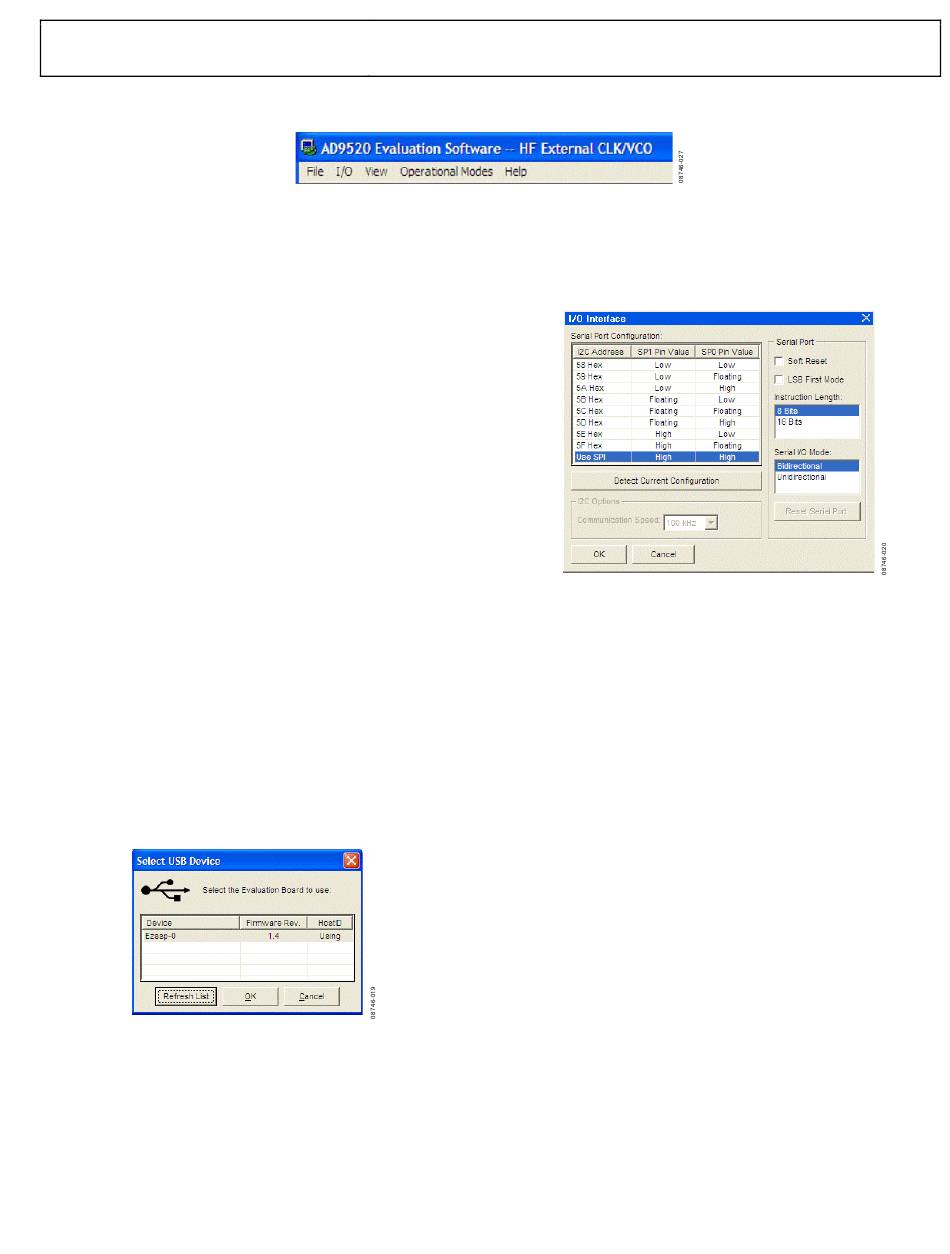

Figure 24. Menu Bar
Configure Serial Port
The I/O Interface window allows the user to control how the
USB controller interacts with the
Figure 26).
2
If using I
C mode, this window allows the user to select which
address to use. Note that it must correspond to the S5 and S6
jumper settings on the evaluation board. The user can also click
Detect Current Configuration to discover which I
active (see Figure 26).
However, if attempting to program an
board via a header cable from Connector P1, the I
the on-board
AD9520
remote
AD9520
View Menu
The View menu includes the following options.
Debug
This window (see Figure 23) allows the user to write and read
registers directly, as well as force the various configuration pins
high and low.
Options
This window allows the selection of Windows® XP visual styles.
Operational Modes Menu
This menu allows the user to select any of the three operational
modes in the
AD9520
Help Menu
Clicking Help opens the About AD9520 window, which
contains information such as revision number, region
information, and contact information.
Rev. A | Page 13 of 16
AD9520
serial port (see
Figure 26. I/O Interface Window
AD9520
2
must not match the I
C address of the
that the user is attempting to program.
data sheet.
UG-076
2
C address is
on a remote
2
C address of
