Summary of Contents for Advantech PAX-332 Series

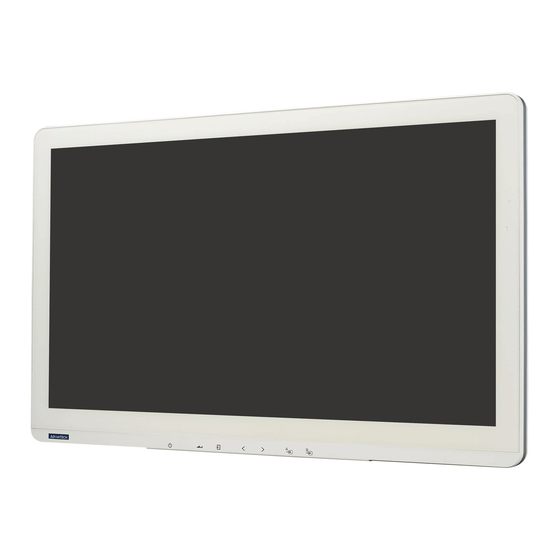

- Page 1 User Manual PAX-332 Series 32” FHD True-Flat Medical Monitor...
- Page 2 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.
- Page 3 Additional Information and Assistance Contact your distributor, sales representative, or an Advantech customer service cen- ter for technical support should you require additional assistance. Be sure to have the...
- Page 4 PAX-332 User Manual...
-
Page 5: Table Of Contents
1.3.2 Input/Output Terminals ..............3 1.3.3 General ..................4 1.3.4 Environmental ................4 1.3.5 AVAS - Advantech Video Archiving Solution (Optional) ....5 1.3.6 Input/Output Signal Connectors............ 5 Chapter Installation..........7 Unpacking ....................8 System Controls..................8 Figure 2.1 PAX-332 Monitor Front View ........8 2.2.1... - Page 6 Safety and Maintenance ................. 30 4.6.1 Radio Frequency ................ 31 4.6.2 Keep Away From Windows............31 4.6.3 Storage Temperature..............31 4.6.4 Image Persistence ..............31 4.6.5 Placement and Adjustment of the Monitor........32 Appendix A Cleaning..........33 Cleaning the LCD Panel ................. 34 Cleaning the Cabinet ................
- Page 7 Chapter Introduction...
-
Page 8: Chapter 1 Introduction
Introduction Advantech’s PAX-332 is a 32-inch TFT LCD monitor designed to serve as a medical imaging display. With DICOM GSDF calibration and 14-bit gamma correction for white balance, PAX-332 is optimized for displaying high-quality medical images and videos. Features True flat design with AR filter (optional) ... -
Page 9: Specifications
Specifications 1.3.1 Display Note! The specifications are subject to change without notice. Model Name PAX-332-C2B-NAS PAX-332-C2A-NAS PAX-332-C2F-NAS PAX-332-C2B-NAR Screen Size (Active Area) 31.55" (698.4(H) x 392.9(V) [mm]) Aspect Ratio 16:9 Number of Pixels 1920 (H) x 1080 (V) Pixel Pitch (H x V) 0.36375(H) x 0.36375(V) [mm] Display Colors 16.7 million (8 bit) -
Page 10: General
DVI Jack x 1 Digital RGB: TMDS DVI 1 Output (Type D) MAX: 1920 x 1080@60 Hz DVI Jack x 1 Digital RGB: TMDS DVI 2 Input (Type D) MAX: 1920 x 1080@60Hz DVI Jack x 1 Digital RGB: TMDS DVI 2 Output (Type D) MAX: 1920 x 1080@60Hz... -
Page 11: Avas - Advantech Video Archiving Solution (Optional)
1.3.5 AVAS - Advantech Video Archiving Solution (Optional) 1 x RJ45 jack 1 x GbE SFP+ Module SFP+ 10 Gbps Built-in LEDs indicate the AVAS status, as explained below. Blinking green: operating as normal Blinking orange: warning notification Continuous orange: FPGA is starting up... - Page 12 IEC 60601-1 and IEC 60601-1-1 standard specifications. If in doubt, contact a qualified technician or your local representative. Note: The specifications of Advantech products are subject to change without notice. Type of protection against electric shock: Class l equipment...
-
Page 13: Chapter 2 Installation
Chapter Installation... -
Page 14: Unpacking
Unpacking Before unpacking the LCD monitor, prepare a suitable, level, and clean workspace near a power outlet. The LCD monitor should be installed in a location with sufficient airflow and away from direct sunlight. After unpacking the LCD monitor, check to ensure that the following items have been included in the shipment: 1 x PAX-332 LCD monitor ... -
Page 15: I/O Ports
2.2.1 I/O Ports PAX-332-C2F-NAS (AVAS optional) (1) (2) (3) (4) (6) (7) (10) (11) (12) (13) (14) PAX-332-C2B-NAS, PAX-332-C2B-NAR (RGB optional) (1) (2) (3) (4) (6) (7) (10) (11) (12) (13) PAX-332-C2A-NAS 2.2.2 Display PAX-332 features a 32-inch TFT LCD. The screen supports a maximum resolution of 1920 x 1080 @ 60 Hz. -
Page 16: Input/Output Signal Ports
Right Key Move and adjust values in main OSD menu. Used to activate Display Mode hot menu by holding the key for longer than 3 sec. when main OSD menu is not displayed. Wake up in DPMS mode. PIP Main input selection function. Port A Key Only available when using the PIP function. -
Page 17: Interface On Avas Back Panel
PAX-332-C2A-NAS DC switch DC power input: +24V power connector DVI 1 input/output DP/HDMI input USB up 2.2.5 Interface on AVAS Back Panel Name Function SFP+ SFP+ port for SFP+ modules only Status LED, will indicate the AVAS operational status: a. Blinking green: operating as normal b. -
Page 18: Connecting Ac/Dc Power
Connecting AC/DC Power Plug the female end of the AC/DC power adapter into the DC power connector. Plug the female end of the power cord into the AC power connector on the adapter. Plug the male end of the power cord into a power outlet socket. ... -
Page 19: Chapter 3 Osd Menu
Chapter OSD Menu... -
Page 20: Osd Menu Controls
OSD Menu Controls This chapter refers to the On Screen Display (OSD) controls. Using the OSD controls the user can adjust contrast, brightness, display clarity, color temperature and etc. Please read this chapter carefully to get the most out of this monitor. 3.1.1 Display Mode Menu... -
Page 21: Display Function
3.1.2 Display Function Menu Description Default Remarks Disp Rotate Used to rotate the screen. 0° Apply in 1P mode Disp Latency Not applicable. Used to adjust the ratio for the left LR Ratio and right displays. Apply in 2P LR mode Used to swap input sources for the Input Swap... -
Page 22: Select Region
3.1.3 Select Region Menu Description Default Remarks Left Side Select one region to control: Apply in 2P LR Right Side Left side Left side, Right side or Full. mode Full Top Side Select one region to control: Apply in 2P TB Bottom Side Top Side Top Side, Bottom Side or Full. -
Page 23: Picture
3.1.4 Picture Menu Description Default Remarks Backlight Used to adjust the backlight luminance. Used to adjust the screen brightness. Independent of Brightness Press the ˂ or > button to adjust. each input Used to adjust the screen contrast. Independent of Contrast Press the <... -
Page 24: Analog (Option)
3.1.5 Analog (Option) Menu Description Default Remarks Automatically adjust the Horizontal position, Vertical position, Horizontal size, Auto Adjust and Phase Window's background or characters should be displayed on your Full screen prior to proceed this function Used to adjust the horizontal position of H Position the screen. -
Page 25: Color
3.1.6 Color Menu Description Default Remarks Panel Uniformity Not applicable. Independent Gamma Used to select one of the various gammas. of each input Used to select one of the various color tem- peratures. Independent Temperature Clear * Set Gamma to OFF to adjust the red, green, of each input and blue values in the user mode. -
Page 26: Advance
3.1.7 Advance Menu Description Default Remarks RGB (Option) HDMI Full DVI 1 Used to select one of the various screen DVI2 (Option) Aspect Ratio aspect ratios. SDI1 (Option) AVAS (Option) Auto VIDEO (Option) Mode S-VIDEO (Option) RGB (Option) HDMI DVI 1 Used to activate/deactivate the over scan DVI 2 (Option) Over Scan... -
Page 27: Advance
3.1.8 Advance Menu Description Default Remarks Used to configure the ultra vivid screen. Ultra Vivid [OFF, L, M, H] RGB (Option) HDMI DVI 1 Used to adjust screen over-scan ratio. DVI 2 (Option) Over Scan Ratio * After adjusting the over-scan ratio, set SDI 1 (Option) the Over Scan menu from Off to On. -
Page 28: Input
3.1.9 Input Menu Description Default Remarks RGB (Option), DP, HDMI, DVI 1, DVI 2 (Option), SDI 1 (Option), Used to select the monitor’s display input Auto Apply in 1P AVAS (Option), sources. Select mode S-VIDEO (Option), VIDEO (Option), Auto Select Left Side Used to select the input sources for the Apply in 2P... -
Page 29: Audio (Option)
3.1.10 Audio (Option) Menu Description Default Remarks Used to adjust the speaker volume on Volume the monitor. Used to activate/deactivate the mute Mute function. [ON, OFF] Don't Switch Audio Source if Line In is Currently Playing unless a Digital Stand Alone Source is found. -
Page 30: Other
3.1.11 Other Menu Description Default Remarks Used to activate/deactivate the Reset monitor reset function. [YES, NO] Used to set the duration of the OSD Menu Time menu display. Used to adjust the horizontal posi- OSD H Position tion of the OSD menu. Used to adjust the vertical position OSD V Position of the OSD menu. -
Page 31: Information
3.1.12 Information Menu Description Default Remarks Used to access monitor infor- Information mation. 3.1.13 OSD Input Source RGB (Option) HDMI DVI 1 This allows users to select the main input source. DVI 2 (Option) SDI 1 (Option) * Auto Select cannot be selected in Multi-Display Mode. AVAS (Option) S-VIDEO (Option) VIDEO (Option) - Page 32 PAX-332 User Manual...
-
Page 33: Chapter 4 Safety Information
Chapter Safety Information... -
Page 34: Symbols
Symbols Symbol Title This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” of sufficient magnitude to constitute a risk of electric shock. -
Page 35: Ce Marking
CE Marking This marking is a declaration of conformity in accordance with Article 10(1) of the CE directive. This product has passed the CE test for environmental specifications. Test conditions for passing include the equipment being operated within an indus- trial enclosure. -
Page 36: Safety And Maintenance
Safety and Maintenance Caution! To ensure optimum performance, follow the safety instructions outlined below when setting up or using the equipment. Do not open the monitor. There are no user-serviceable parts inside. Opening or removing the cover may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel. -
Page 37: Radio Frequency
Note! As with all personal display devices, Advantech recommends using a moving screen saver whenever the screen is idle and turning off the monitor when not in use. -
Page 38: Placement And Adjustment Of The Monitor
The configuration of the device should mainly be done by the user using the provided hardware keypad. Note! If software tools are provided by Advantech they should be operated using the specific instructions provided. Any software tools provided should only be installed on a computer with appropriate systems to pre- vent unauthorized access. -
Page 39: Appendix A Cleaning
Appendix Cleaning... -
Page 40: Cleaning The Lcd Panel
Cleaning the LCD Panel When the LCD panel becomes dusty or dirty, wipe it gently with a soft cloth. Do not rub the LCD panel with cloth of a hard or coarse material. Do not apply pressure to the LCD surface. ... -
Page 41: Appendix B Troubleshooting
Appendix Troubleshooting... -
Page 42: Non-Responsive Power Button
Note! As with all personal display devices, Advantech recommends using a moving screen saver whenever the screen is idle and turning off the monitor when not in use. - Page 43 PAX-332 User Manual...
- Page 44 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2021...
