Summary of Contents for Advantech POC-WP242

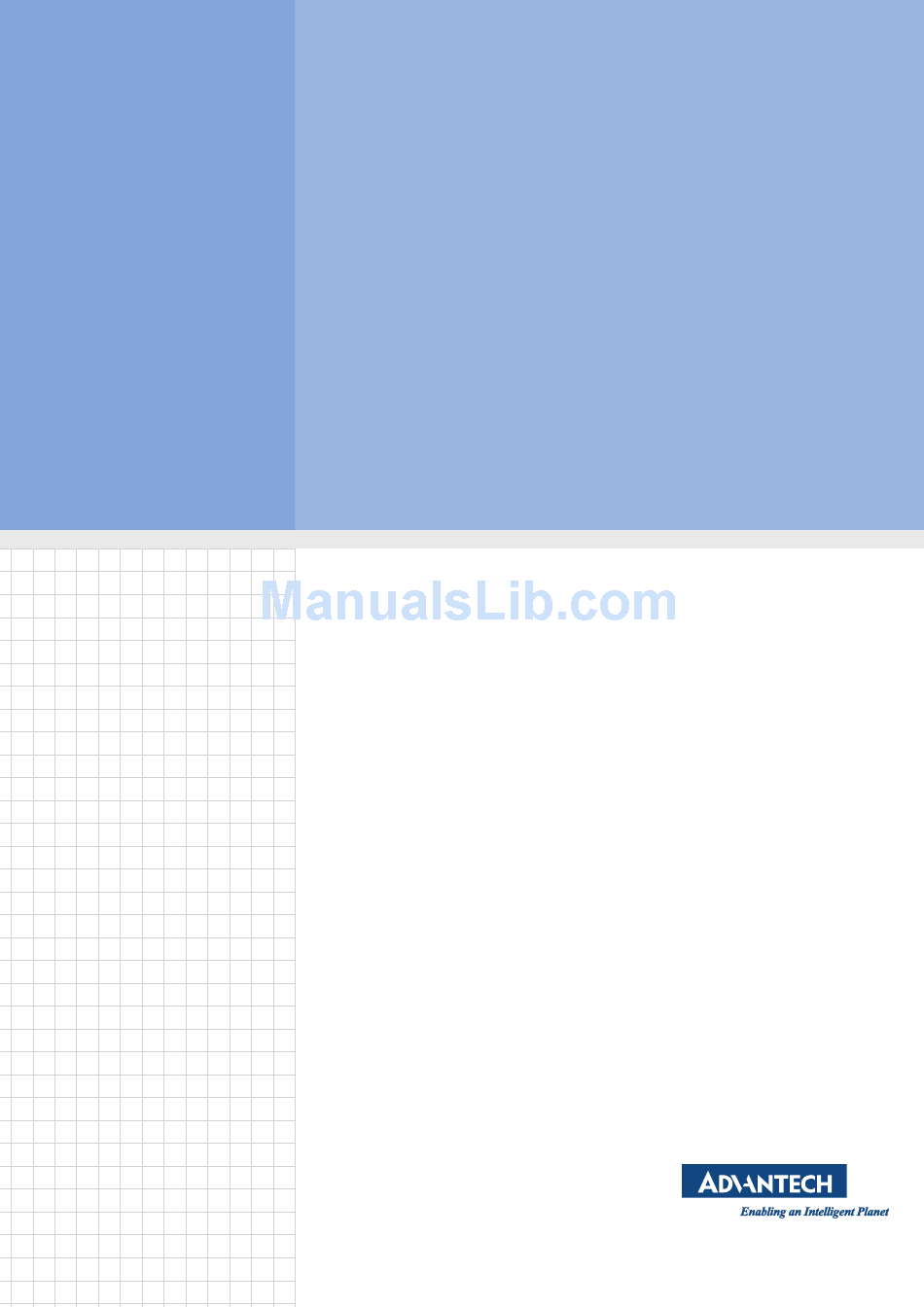

- Page 1 User Manual POC-WP242 Point-of-Care Terminal with Intel® Core™ i7/i5 Processor and 23.8’’ Full HD IPS LCD...
-
Page 2: User Instructions
The device should only be repaired by trained service personnel. Advantech recommends that a service contract be obtained with Advantech Service and all repairs be conducted by Advantech; otherwise, the correct functioning of the device may be compromised. - Page 3 Discard used batteries according to the manufacturer’s instructions. Caution! A battery charging indicator is not included with this device. Instead, it should be added to the device during assembly to complete the entire system. POC-WP242 User Manual...
- Page 4 To maintain and clean the surfaces, use only approved cleaning products or a dry applicator. Caution! When servicing the device, always use replacement parts that are quali- fied to Advantech standards. Advantech cannot warrant or endorse the safe performance of third-party replacement parts for use with our medi- cal devices.
- Page 5 IEC 60601-1-certified equipment in the patient environment and IEC 60XXX-certified equipment outside of the patient environment. If in doubt, consult Advantech’s technical services department or your local sales representative. Caution! Use suitable mounting apparatus to avoid injury.
-
Page 6: Explanation Of Graphical Symbols
The above mark for electrical and electronic products only applies in current European Union member states. POC-WP242 User Manual... -
Page 7: Accessories List
Only the accessories included in the above list have been tested and approved for use with the device. Accordingly, Advantech strongly recommends that only these accesso- ries be used in conjunction with the device. Otherwise, the correct func- tioning of the device may be compromised. - Page 8 Additional Information and Assistance Contact your distributor, sales representative, or Advantech's customer service cen- ter for technical support if you need additional assistance. Please have the following information ready before you call: Product name and serial number Description of your peripheral attachments ...
-
Page 9: Table Of Contents
......1 Introduction ....................2 Specifications .................... 2 Dimensions ....................4 Figure 1.1 POC-WP242 System Dimensions ......4 Figure 1.2 POC-WP242 VESA Mount ......... 4 Figure 1.3 POC-WP242 Front Panel ........... 5 Figure 1.4 POC-WP242 Front Functions........5 Figure 1.5 POC-WP242 Rear ............5 1.3.1... - Page 10 Chapter PCM-8715 Jumper Setting List ..27 Motherboard.................... 28 Figure 6.1 POC-WP242 Motherboard Top Side......28 I/O Board....................28 Figure 6.2 POC-WP242 Motherboard I/O ......... 28 Table 6.1: Jumper Settings ............29 Chapter Front Bezel Button......33 Introduction ..................... 34 7.1.1...
-
Page 11: Chapter 1 General Information
Chapter General Information... -
Page 12: Introduction
POC solution for patients and medical professionals. The POC-WP242 is intended to serve as a POC solution that can be integrated with existing hospital systems. However, POC-WP242 should not be used as a life-sup- port system. - Page 13 Shock Resistance 20G peak acceleration (11 ms duration) Dimensions 583.38 x 386.75 x 69.42 mm Physical (W x H x D) (22.96 x 15.22 x 2.73") Characteristics Weight 7 kg (15.24 lb) Platform and Utility Windows 8, 7 POC-WP242 User Manual...
-
Page 14: Dimensions
Dimensions Dimensions (W x H x D): 583.38 x 386.75 x 69.42 mm Figure 1.1 POC-WP242 System Dimensions VESA Mount Option: 75 x 75 mm/100 x 100 mm Figure 1.2 POC-WP242 VESA Mount Warning! Use suitable mounting apparatus to avoid injury. -
Page 15: Optional Modules
Figure 1.3 POC-WP242 Front Panel (1) Power (2) Volume Up/Down (3) Touchscreen Status control (4) Read Light control (5) Brightness Increase/Decrease Figure 1.4 POC-WP242 Front Functions (1) Speaker Out (2) Mic In (3) 2 x USB 2.0 Figure 1.5 POC-WP242 Rear... -
Page 16: Poc Terminal Cleaning And Disinfecting
Do not use disinfectants that contain phenol. Do not autoclave or clean the POC terminal or peripherals with strong aromatic, chlori- nated, ketone, ether, or esther solvents, nor sharp tools or abra- sives. Never immerse electrical connectors in water or other liquid. POC-WP242 User Manual... -
Page 17: Chapter 2 System Setup
Chapter System Setup... -
Page 18: Quick Tour Of Poc-Wp242
Before setting up POC-WP242, familiarize yourself with the locations and purposes of the controls, drives, connections, and ports, as illustrated in the figures below. When placed upright on a desktop, the POC-WP242 front panel appears as shown in Figure 2.1. -
Page 19: Rear View
2.1.3 Rear View Located at the bottom of the rear of the POC terminal is a recessed I/O section, as shown below. (1) PCIe x4 card slot (2) Equipotential terminal pin (3) 1 x RS-232/422/485 (isolated) serial port (4) 2 x USB 3.0 (5) 2 x USB 2.0 (6) 1 x VGA port (7) 1 x RS-232 (isolated) -
Page 20: Installation Procedures
Connect the 3-pin male plug of the power cord to an electrical outlet. Figure 2.2 Connecting a Power Cord POC-WP242 uses an IEC 60320 C5 coupler power cord. Users are reminded to pur- chase the correct power cord for your power outlet. -
Page 21: Connecting The Grounding Pin
Connect the grounding cable plug to the equipotential terminal pin. Running the BIOS Setup Program The POC-WP242 is likely to have been properly set up and configured by your dealer prior to delivery. Nonetheless, you may still find it necessary to use the Basic Input- Output System (BIOS) setup program to adjust the system information, such as the date/time or hard drive type. -
Page 22: Installing System Software
The setup program will guide users through the hard drive preparation and OS installation processes. Troubleshooting If any of the following system function abnormalities occur, contact Advantech or your local sales representative: Failure to power on Failure to power off... - Page 23 Guidance and Manufacturer’s Declaration – Electromagnetic Emissions The POC-WP242 model is intended for use in the electromagnetic environment specified below. Users of POC-WP242 should ensure the system is used in such an environment. Electromagnetic Environment – Emissions Test Compliance Guidance POC-WP242 uses RF energy only for its internal function.
- Page 24 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The POC-WP242 model is intended for use in the electromagnetic environment specified below. Users of POC-WP242 should ensure the system is used in such an environment. IEC 60601 Test Compliance Electromagnetic Environ- Immunity Test...
- Page 25 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The POC-WP242 model is intended for use in the electromagnetic environment specified below. Users of POC-WP242 should ensure the system is used in such an environment. Immunity IEC 60601 Test Compliance Electromagnetic Environment –...
- Page 26 To assess the electromagnetic environment caused by fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location where POC-WP242 is used exceeds the applicable RF compliance level explained above, the terminal should be observed to verify normal operation.
-
Page 27: Chapter 3 Driver Installation
Chapter Driver installation... -
Page 28: Introduction
Introduction The POC-WP242 supports single-key driver installation. This allows users to install all the system drivers by clicking just one button. Warning! Use a clean OS for this single-key installation function. Otherwise, an unexpected error may occur. Windows Driver List Refer to the specific OS version (Win 7 32/64 bit, Win 8) to ensure the correct drivers are installed. -
Page 29: Chapter 4 Operation And Safety Information
Chapter Operation and Safety Information... -
Page 30: General Safety Guide
Do not block the holes/ vents with any material. When the POC-WP242 is in operation, it is normal for the rear metal heatsink to become warm. The POC-WP242’s rear metal heatsink functions as a cooling surface that dissipates heat from inside the computer into the cooler air outside. -
Page 31: Appropriate Handling
Handle POC-WP242 with care. This POC terminal is made from metal, glass, and plastic and equipped with sensitive internal electronic components. Do not use an obviously damaged POC-WP242 terminal, such as one with a cracked screen, as this may result in injury. - Page 32 POC-WP242 User Manual...
-
Page 33: Chapter 5 Pcm-8715 Connector Map And Table
Chapter PCM-8715 Connector Map and Table... -
Page 34: Motherboard Top View
Motherboard Top View POC-WP242 User Manual... -
Page 35: Motherboard Underside View
DDR3L SODIMM 1 socket SATA 1 connector SATA 1 power connector PCAP touch USB connector Camera/USB (12V and 3.3V) connector USB (5V) connector Mini PCIe (half size) socket 5-wire resistive touch connector Mini PCIe (full size) socket POC-WP242 User Manual... -
Page 36: I/O Board
Smart card/USB (5V) connector USB ISO/USB (12V/5V) connector USB connector (5V) COM4 (3.3V TTL level, 5V power, reserved) Internal power 12V input connector Reset EC button COM1 (RS232/422/485) USB 3.0 USB 2.0 COM2 (RS232) LAN1 (iAMT) LAN2 HDMI POC-WP242 User Manual... -
Page 37: Chapter 6 Pcm-8715 Jumper Setting List
Chapter PCM-8715 Jumper Setting List... -
Page 38: Motherboard
Motherboard * All jumpers are located top side. Figure 6.1 POC-WP242 Motherboard Top Side I/O Board * All jumpers located top side. Figure 6.2 POC-WP242 Motherboard I/O POC-WP242 User Manual... -
Page 39: Table 6.1: Jumper Settings
(1-2) ME manufacturing mode (No connection) Normal operation (default) CN14 LVDS Voltage Setup Description Select panel LVDS voltage setting Setting Function (1-3) Panel LVDS voltage 5V (default) (2-4) Panel LVDS voltage 12V (3-5) Panel LVDS voltage 3.3V POC-WP242 User Manual... - Page 40 Panel resolution: 24 bits, single-channel 1366 x 768 (1-2)(3-4) Panel resolution: 24 bits, single-channel 1920 x 1200 (No connection) Reserved CN44 Board Setup Description Select different board setting Setting Function (7-8) (9-10) Reserved (7-8) Reserved (9-10) Reserved (No connection) Default POC-WP242 User Manual...
- Page 41 (default) CN11 (IO) COM1 RS232/422/485 Output Type Setting Description COM1 RS232/422/485 output type setting Setting Function (5-6), (7-9), (8-10), (13-15), RS232 (default) (14-16) (3-4), (9-11) (10-12), (15-17) RS422 (16-18) (1-2), (9-11) (10-12), (15-17) RS485 (16-18) POC-WP242 User Manual...
- Page 42 POC-WP242 User Manual...
-
Page 43: Chapter 7 Front Bezel Button
Chapter Front Bezel Button... -
Page 44: Introduction
Introduction This chapter provides a description of the functions located in the POC-WP242 front bezel. 7.1.1 Front Bezel Button Layout Button Description Press this button to power the system on/off. When the system is on, this icon will emit a green light. When the Power button system is off, the LED will also be off. -
Page 45: Chapter 8 Poc-Wp242 Advanced Bios
Chapter POC-WP242 Advanced BIOS... -
Page 46: Introduction
Introduction This chapter explains the advanced functions of the POC-WP242 BIOS menu. Power Button Function Enable/Disable Users can enable/disable the power button function via the BIOS menu. If the power button is disabled during SO (System On) mode, the power button will be immediately disabled, preventing users from turning off the using the power button. - Page 47 BIOS Menu location: BIOS Menu - Boot - SETUP POPUP MENU F12 Enable: Pressing F12 key at bootup can display the popup menu (Default) Disable: Pressing F12 key at bootup cannot display the popup menu POC-WP242 User Manual...
- Page 48 POC-WP242 User Manual...
-
Page 49: Appendix Avesa Mounts
Appendix VESA Mounts... -
Page 50: Vesa Mount Installation
Instructions for VESA mount installation are provided below. First, attach the wall mounts to the POC-WP242 heat sink, securing them in place using the four Phillips-head screws provided. Mount the device onto a wall, stand, or flat surface. -
Page 51: Energy Star
Appendix ENERGY STAR... -
Page 52: What Is Energy Star
ENERGY STAR certification, and those that do are made more efficient than ever. Advantech is honored to be providing users with such products. What is ENERGY STAR? ENERGY STAR is a U.S. Environmental Protection Agency (EPA) voluntary program that helps businesses and individuals save money and protect our climate through superior energy efficiency. - Page 53 POC-WP242 User Manual...
- Page 54 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2016...
