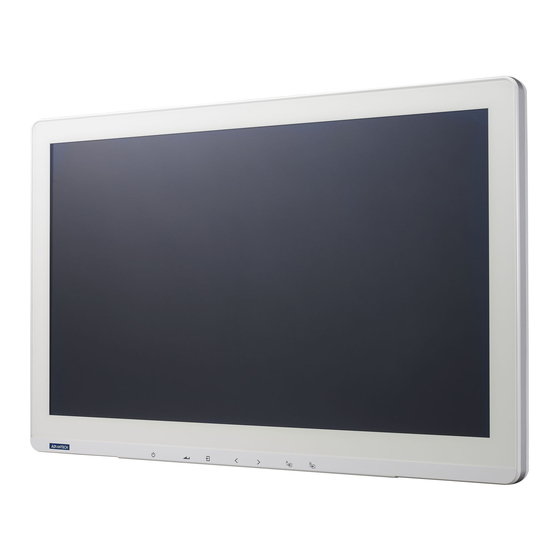

- Page 1 User Manual PAX-327 Series 27” FHD True-Flat Medical Monitor...
- Page 2 The documentation and the software included with this product are copyrighted 2020 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to improve the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd.
- Page 3 Additional Information and Assistance Contact your distributor, sales representative, or an Advantech customer service cen- ter for technical support if you need additional assistance. Please have the following information ready before calling: ...
- Page 4 PAX-327 User Manual...
-
Page 5: Table Of Contents
1.3.1 Display ..................3 1.3.2 General ..................3 1.3.3 Environmental ................3 1.3.4 AVAS - Advantech Video Archiving Solution (Optional) ....4 1.3.5 Input/Output Signal Connectors............ 4 Chapter Installation..........7 Unpacking ....................8 System Controls..................8 Figure 2.1 PAX-327 Monitor Front View ........8 2.2.1... - Page 6 4.6.3 Storage Temperature..............31 4.6.4 Image Persistence ..............31 4.6.5 Placement and Adjustment of the Monitor........32 Appendix A Cleaning..........33 Cleaning the LCD Panel ................. 34 Cleaning the Cabinet ................34 Appendix B Troubleshooting........ 35 Non-Responsive Power Button............... 36 No Picture ....................
- Page 7 Chapter Introduction...
-
Page 8: Chapter 1 Introduction
DICOM clear and blue modes Variable gamma and DICOM (color temperature) modes Variable picture control Variable image size Variable multi-picture display mode IP-based monitor with Advantech AVAS built in (optional) Integrated touchscreen (optional) PAX-327 User Manual... -
Page 9: Specifications
Specifications 1.3.1 Display Model Name PAX-327-C2B-HAS PAX-327-C2B-LAS PAX-327-C2B-HAR PAX-327-C2B-LAR PAX-327-C2F-HAS Screen Size (Active Area H x V) 27" (597.88 x 336.31 mm/23.53 x 13.24 in) Aspect Ratio 16:9 Number of Pixels (H x V) 1920 x 1080 Pixel Pitch (H x V) 0.3114 x 0.3114 mm/0.012 x 0.012 in Display Colors 1.07 billion (10 bit) -
Page 10: Avas - Advantech Video Archiving Solution (Optional)
1.3.4 AVAS - Advantech Video Archiving Solution (Optional) 1 x RJ45 jack 1 x GbE SFP+ Module SFP+ 10 Gbps Built-in LEDs indicate the AVAS status, as explained below. Blinking green: operating as normal Blinking orange: warning notification Continuous orange: FPGA is starting up... - Page 11 IEC 60601-1 and IEC 60601-1-1 standard specifications. If in doubt, contact a qualified technician or your local representative. Note: The specifications of Advantech Kostec products are subject to change without notice. Type of protection against electric shock: Class l equipment.
- Page 12 PAX-327 User Manual...
-
Page 13: Chapter 2 Installation
Chapter Installation... -
Page 14: Unpacking
Unpacking Before unpacking the LCD monitor, prepare a suitable, level, and clean workspace near a power outlet. The LCD monitor should be installed in a location with sufficient airflow and away from direct sunlight. After unpacking the LCD monitor, check to ensure that the following items have been included in the shipment: 1 x PAX-327 LCD monitor ... -
Page 15: I/O Ports
2.2.1 I/O Ports *PAX-327-C2F-HAS (AVAS optional) (1) (2) (3) (4) (5) (6) (9) (10) (11) (12) (13) *PAX-327-C2B-HAS/PAX-327-C2B-HAR/PAX-327-C2B-LAS/PAX-327-C2B-LAR (1) (2) (3) (5) (6) (9) (10) (11) (12) 2.2.2 Display PAX-327 features a 27-inch TFT LCD. The screen supports a maximum resolution of 1920x1080 @ 60Hz. -
Page 16: Input/Output Signal Ports
Full Screen Mode Port A Key Used to change directly to the backup source input specified in A. Used to display the selectable OSD menu for backup source input A by holding the key for more than 5 seconds. PIP Mode Main input selection function. -
Page 17: Viewing Angle
Viewing Angle The PAX-327 LCD monitor can be vertically adjusted to the preferred viewing angle for maximum comfort. Caution! Do not force the monitor past its maximum extension in any direction as this may damage the monitor and the monitor stand. Positioning Before setting up your workstation, prepare a suitable installation space. -
Page 18: Connecting Video
Connecting Video Before connecting the monitor to a PC or other device, ensure all equipment is powered off. Connect one end of an HDMI 2.0 cable to the monitor’s HDMI port and the other end to the HDMI port of the PC or other device. A DP 1.2 cable can be con- nected to the monitor’s DP port and to the DP port of the PC or other device if equipped with a DP input port. - Page 19 PAX-327 User Manual...
- Page 20 PAX-327 User Manual...
-
Page 21: Chapter 3 Osd Menu
Chapter OSD Menu... -
Page 22: Osd Menu Controls
OSD Menu Controls PAX-327 features onscreen display (OSD) controls that can be used to adjust the display contrast, brightness, clarity, color temperature, etc. Read the information in this chapter carefully to get the most out of your monitor. 3.1.1 Display Mode Menu Description Default... -
Page 23: Display Function
3.1.2 Display Function Menu Description Default Remarks Allows users to rotate the screen Display Rotate 0° [0°, 90°, 180°, 270°]. Display Latency Not applicable In 2P LR (2 input signals [left/ right]) mode, this allows users to LR Ratio adjust the left and right display area ratios. -
Page 24: Select Region
3.1.3 Select Region Menu Description Default Remarks This allows users to select the screen/display area for configuration Select Region Full when more than one screen is dis- played [left, right, full]. In 2P LR (2 input signals [left/right]) mode, this allows users to configure 2P LR Left the left and right screens [left, right,... -
Page 25: Picture
3.1.4 Picture Menu Description Default Remarks This allows users to adjust the backlight Backlight luminance. This allows users to adjust the screen Brightness brightness [< or >]. This allows users to adjust the screen Contrast contrast [< or >]. This allows users to adjust the screen Sharpness sharpness [<... -
Page 26: Color
3.1.5 Color Menu Description Default Remarks Panel Uniformity Not applicable This allows users to set the variable gamma. Gamma [Off, custom, 2.0, 2.2, DICOM] This allows users to adjust the color tempera- ture [D95, D75, D65, blue, clear, user defined]. Temperature Clear In user-defined mode, <... -
Page 27: Advanced
3.1.6 Advanced Menu Description Default Remarks This allows users to adjust the screen RGB (optional) aspect ratio. Use < or > to select the desired aspect ratio. HDMI RGB (optional) Full DVI 1, 2 Aspect Ratio Auto Mode SDI 1 HDMI AVAS (optional) DVI 1, 2... -
Page 28: Input
3.1.7 Input Menu Description Default This allows users to select the monitor’s display input sources [RGB, DP, HDMI, DVI Input Auto 1, DVI 2, SDI 1, AVAS, S-video, video, auto]. In 2P LR (2 input signals [left/right]) mode, 2P LR this allows users to select the input sources for the left and right screens. -
Page 29: Audio
3.1.8 Audio Menu Description Default Remarks This allows users to adjust the Volume speaker volume on the monitor. This allows users to activate/deacti- Mute vate the mute function [on, off]. This allows users to activate/deacti- Stand Alone vate the stand alone sound function. This allows users to select the audio Audio Source Analog... -
Page 30: Other
3.1.9 Other Menu Description Default Remarks This allows users to reset the moni- Reset tor. This allows users to set the OSD Menu Time 20 seconds menu display duration time. This allows users to adjust the OSD OSD H Position menu’s horizontal position. -
Page 31: Osd Input Source
3.1.11 OSD Input Source HDMI DVI 1 DVI 2 This allows users to select Main Source SDI 1 the main input source. AVAS S-Video Video Auto Select 3.1.12 PIP Table Main HDMI DVI 1 DVI 2 SDI 1 AVAS S-Video Video HDMI DVI 1... - Page 32 PAX-327 User Manual...
-
Page 33: Chapter 4 Safety Information
Chapter Safety Information... -
Page 34: Symbols
Symbols Symbol Title This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” of sufficient magnitude to constitute a risk of electric shock. -
Page 35: Ce Marking
CE Marking This marking is a declaration of conformity in accordance with Article 10(1) of the CE directive. This product has passed the CE test for environmental specifications. Test conditions for passing include the equipment being operated within an indus- trial enclosure. -
Page 36: Safety And Maintenance
Safety and Maintenance Caution! To ensure optimum performance, follow the safety instructions outlined below when setting up or using the equipment. Do not open the monitor. There are no user-serviceable parts inside. Opening or removing the cover may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel. -
Page 37: Radio Frequency
Note! As with all personal display devices, Advantech recommends using a moving screen saver whenever the screen is idle and turning off the monitor when not in use. -
Page 38: Placement And Adjustment Of The Monitor
4.6.5 Placement and Adjustment of the Monitor For optimum performance, a one hour warm-up time is recommended. Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen. -
Page 39: Appendix A Cleaning
Appendix Cleaning... -
Page 40: Cleaning The Lcd Panel
Cleaning the LCD Panel When the LCD panel becomes dusty or dirty, wipe it gently with a soft cloth. Do not rub the LCD panel with cloth of a hard or coarse material. Do not apply pressure to the LCD surface. ... -
Page 41: Appendix B Troubleshooting
Appendix Troubleshooting... -
Page 42: Non-Responsive Power Button
Note! As with all personal display devices, Advantech recommends using a moving screen saver whenever the screen is idle and turning off the monitor when not in use. - Page 43 PAX-327 User Manual...
- Page 44 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2020...
