Summary of Contents for Advantech FPM1150GRVA1801-T

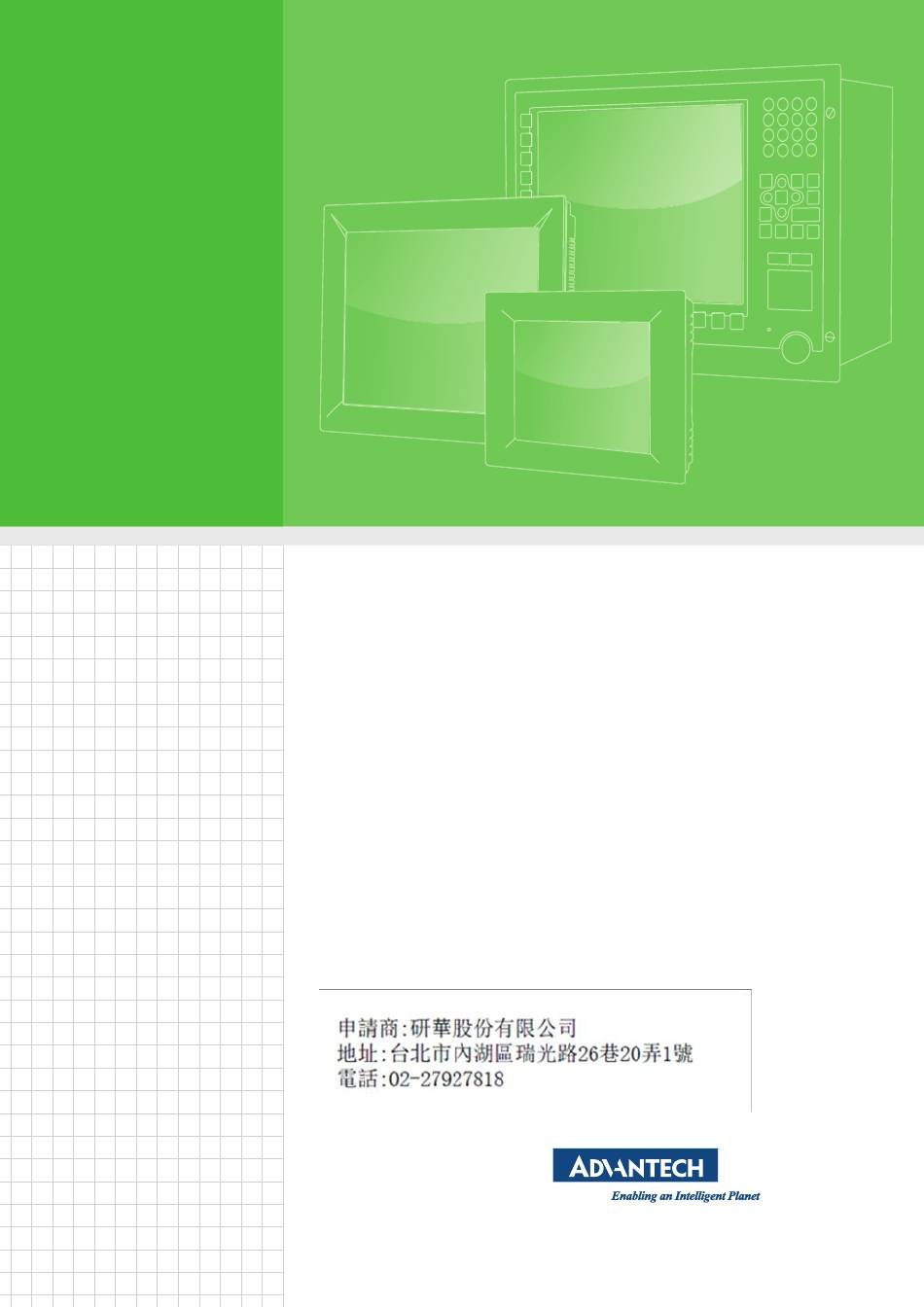

  • Page 1 User Manual FPM-1150G Series 15" XGA/Industrial LED Monitorwith Resistive Touchscreen, VGA or HDMI Display Port and DC12 V Input 顯示器...
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
  • Page 3 限用物質含有情況標示聲明書 Declaration of the Presence Condition of the Restricted Substances Marking PLM MDR NO: MDR-002819 設備名稱: 顯示器 型號(型式): FPM-1150G-RVAE Equipment name Type designation (Type) 限用物質及其化學符號 Restricted substances and its chemical symbols 六價鉻 多溴聯苯 多溴二苯醚 單元 Unit 鉛Lead 汞Mercury 鎘Cadmium Hexavalent Polybrominated Polybrominated (Pb)
  • Page 4 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
  • Page 5 Technical Support and Assistance Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance.
  • Page 6 The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
  • Page 7 Warning! If the customer user DC power by oneself for this product may cause the radio interference in which case, the customer must be to take adequate measures. Warning! If the customer needs to use power adapter, please use the power adapter listed on the product datasheet.
  • Page 8 安全指示 1. 請仔細閱讀此安全操作說明。 2. 請妥善保存此用戶手冊供日後參考。 3. 用濕抹布清洗設備前,請確認拔除電源線。請勿使用液體或去污噴霧劑清洗設備。 4. 對於使用電源線的設備,設備周圍必須有容易接觸到的電源插座。 5. 請勿在潮濕環境中試用設備。 6. 請在安裝前確保設備放置在可靠的平面上,意外摔落可能會導致設備損壞。 7. 設備機殼的開孔適用於空氣對,從而防止設備過熱。請勿覆蓋開孔。 8. 當您連接設備到電源插座前,請確認電源插座的電壓符合要求。 9. 請將電源線佈置在人們不易絆倒的位置,請勿在電源線上覆蓋任何雜物。 10. 請注意設備上所有的警告標示。 11. 如果長時間不使用設備,請拔除與電源插座的連結,避免設備被超標的電壓波動損 壞。 12. 請勿讓任何液體流入通風口,以免引起火灾或短路。 13. 請勿自行打開設備。為了確保您的安全,請透過經認證的工程師來打開設備。 14. 如遇下列情况,請由專業人員維修:  電源線或插頭損壞;  設備內部有液體流入;  設備曾暴露在過度潮濕環境中使用;  設備無法正常工作,或您無法透過用戶手冊來正常工作;  設備摔落或損壞; ...
  • Page 9 FPM-1150G Series User Manual viii...
  • Page 10: Table Of Contents

    Contents Chapter General Information ......1 Introduction ....................2 Specifications .................... 2 1.2.1 General ..................2 1.2.2 Touchscreen (Optional) ..............2 LCD Specification..................3 Connectors....................3 Dimensions ....................4 Figure 1.1 FPM-2120G Dimensions ..........4 Figure 1.2 FPM-2150G Dimensions ..........5 Figure 1.3 FPM-2170G Dimensions ..........
  • Page 11 FPM-1150G Series User Manual...
  • Page 12: Chapter 1 General Information

    Chapter General Information Sections include:  Introduction  Specifications  LCD Specification  Power Consumption  Connectors  Dimensions...
  • Page 13: Introduction

    Introduction The FPM-1150G is an industrial-grade 15 TFT LCD monitor with LED backlight flat panel with a changeable front bezel and updated appearance. FPM-1150G provides a really entry level industrial monitors for not only the industrial application scenarios. but also for all other applications under IoT scenario. In conclusion, FPM-1150G is the best option for those who is looking for the reliable and tough display solution with the best C/P ratio.
  • Page 14: Lcd Specification

    LCD Specification 15” LCD Specifications (LED Backlight) Display Type XGA TFT LCD Display Size 15” Max. Colors 16.7 M Max. Resolution 1024 x 768 View Angle 160°(V), 140°(H) (H/V°) Luminance 300 cd/m Storage -20 ~ 60°C Temperature Operating 0 ~ 50°C Temperature Contrast Ratio 2000:1 (Typical)
  • Page 15: Dimensions

    Dimensions Cut-out Dimensions: 381.4 x 302.5 mm Figure 1.1 FPM-1150G Dimensions I/O Views Figure 1.2 FPM-1150G I/O views FPM-2120G/2150G/2170G Series User Manual...
  • Page 16: Chapter 2 Mounting Methods

    Chapter Mounting Methods Sections include:  Wall Mounting  Panel Mounting  Desktop Stand Mounting...
  • Page 17 Mounting the Monitor The FPM-1150G Series can be mounted in many different ways. The versatility of the FPM-1150G enables it to be mounted on your desk or anywhere else. 2.1.1 VESA Mounting The FPM-1150G can be mounted on 75*75 VESA screw holes. Every arm or mount kit with standard 75*75 VESA defining can be mounted by FPM-1150G eas- ily.
  • Page 18: Panel Mounting

    2.1.2 Panel Mounting If you need to install the FPM-1150G series in a panel, release the mounting brackets by detaching four screws on rear side and fix them on the top and bottom with screws. To implement the panel mount completely, it required 10 clampers with M6 * 21mm screws, with a cut-out on the cabinet with 381.4 x 302.5mm Noted: Below are the details of the hook on FPM-1150G (step by step) 2.
  • Page 19 Appendix Touchscreen...
  • Page 20: Appendix A Touchscreen

    The driver manual are examples only. You must follow the flow chart instructions and pay attention to the instructions which then appear on your screen. Note! If there is any other OS driver need, you could download at the web site: http://support.advantech.com/Support/ DownloadSRDetail_New.aspx?SR_ID=1-WQR- PJM&Doc_Source=Download FPM-1150G Series User Manual...
  • Page 21 Appendix OSD Operation Keypad...
  • Page 22: Osd Board Overview

    OSD Board Overview The OSD keypad, including two keys and a three color indicator, is designed as the OSD operation interface. 1.Move the selector to 1.Activate Indication light the previous option. the OSD 2.Increase & De- 2. Enter/ crease Loop gauge confirm the value of the selected selected...
  • Page 23: Hot Keys

    B.1.3 Hot Keys (Brightness) Press directly without the OSD menu, it will be the hot keys for adjusting the brightness FPM-2120G/2150G/2170G Series User Manual...
  • Page 24 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2016...
