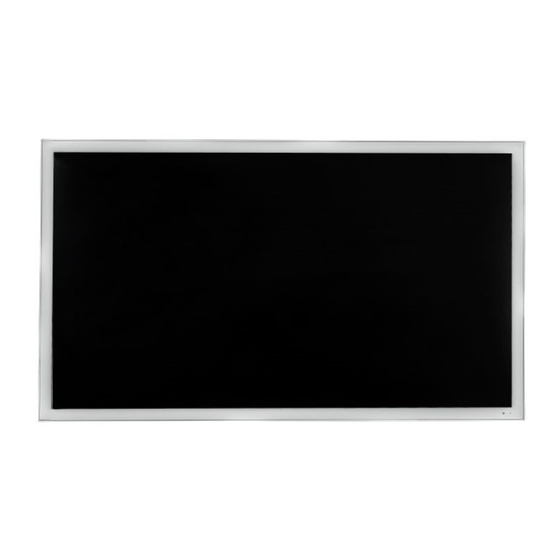

- Page 1 User Manual PAX-355-C8 Series 55" UHD True-Flat Medical Monitor...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
- Page 3 Class I, Division 2, Groups A, B, C and D indoor hazards. Technical Support and Assistance Visit the Advantech website at http://support.advantech.com where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance.
- Page 4 Warnings, Cautions and Notes Warning! Warnings indicate conditions, which if not observed, can cause personal injury! Caution! Cautions are included to help you avoid damaging hardware or losing data. e.g. Note! Notes provide optional additional information. Document Feedback To assist us in making improvements to this manual, we would welcome comments and constructive criticism.
- Page 5 The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
- Page 6 Disconnect power before making any configuration changes. The sudden rush of power as you connect a jumper or install a card may damage sensitive elec- tronic components. Advantech Service-IoT Co., Ltd. No. 1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 11491, Taiwan, R.O.C.
-
Page 7: Table Of Contents
Contents Chapter Introduction & Installation ....1 The LCD monitor PAX-355-C8..............2 1.1.1 Features..................2 1.1.2 Unpacking ..................2 Identifying Components ................3 1.2.1 Input/Output Signal Connectors............ 4 1.2.2 Display Module ................4 1.2.3 OSD Key Functions ..............5 1.2.4 Input/Output Signal Ports.............. 5 Adjusting the Viewing Angle.............. - Page 8 Chapter Troubleshooting........ 31 No Picture ....................32 Power Button does not Respond ............32 Image Persistence .................. 32 Unstable, Unfocused or Swimming Image..........32 Display Image is not Properly Sized ............32 No Video ....................32 PAX-355-C8 User Manual viii...
-
Page 9: Chapter 1 Introduction & Installation
Chapter Introduction & Installation... -
Page 10: The Lcd Monitor Pax-355-C8
The LCD monitor PAX-355-C8 The LCD monitor PAX-355-C8 is a 55-inch TFT LCD monitor designed for the needs of medical image display. With the DICOM GSDF and the 14-bit gamma correction for white balance, PAX-355-C8 is optimized for the display of medical images, allow- ing high-quality medical video images. -
Page 11: Identifying Components
Identifying Components The LCD monitor is designed to provide easy and convenient access to all the control keys and the peripheral ports. Before you begin with installation, please identify the controls and ports through the following figures. LCD Monitor View Anti-reflective Filter or Touch Screen (Option) MENU/ENTER Key EXIT/INPUT Key... -
Page 12: Input/Output Signal Connectors
1.2.1 Input/Output Signal Connectors PAX-355-C8A-NBS, PAX-355-C8A-NBR (8)) PAX-355-C8E-NBS, PAX-355-C8E-NBR PAX-355-C8E-NAS, PAX-355-C8E-NAR PAX-355-C8D-NAS, PAX-355-C8D-NAR 1.2.2 Display Module The display is a 55” diagonal TFT LCD display. The screen supports the maximum resolution of 3840x2160@ 60Hz (UHD). PAX-355-C8 User Manual... -
Page 13: Osd Key Functions
1.2.3 OSD Key Functions Key Name Function Select main OSD menu. MENU/ENTER Key Select sub menu. Apply adjustments (save). Wake up in DPMS mode. Exit menu / Back to previous menu in main OSD menu. EXIT/INPUT Key Used to activate Input hot menu when main OSD menu isn't dis- played. -
Page 14: Adjusting The Viewing Angle
PAX-355-C8D-NAS, PAX-355-C8D-NAR (SDI Quad 3G Option) (1) AC SWITCH (2) AC POWER Input: AC Power Cord (3) DC POWER Output: +5V/+12V Power Connector (4) RS-232C (5) DVI Input (Down) / Output (Up) (6) HDMI Input (Left) / Output (Right) (7) DP Input (8) USB UP (9) SDI Input / Output (Option) -
Page 15: Connecting Video
Connecting Video Before connecting the monitor to the PC or the equipment, please power off the both devices. Connect one end of HDMI 2.0 cable to the PC’s or the equipment’s HDMI port and the other end to the monitor HDMI port. You may also connect the DP 1.2 cable to the DP port if the PC or the equipment are equipped with DP input.. - Page 16 PAX-355-C8 User Manual...
-
Page 17: Chapter 2 Osd Menu Controls
Chapter OSD Menu Controls... -
Page 18: Introduction
Introduction This chapter refers to the On Screen Display (OSD) controls. Using the OSD controls the user can adjust contrast, brightness, display clarity, color temperature and etc. Please read this chapter carefully to get the most out of this monitor. Display Mode MENU DESCRIPTION... -
Page 19: Display Function
Display Function MENU DESCRIPTION DEFAULT REMARKS Disp Rotate Used to rotate the screen. 0° Apply in 1P mode Disp Latency Not applicable. Used to adjust the ratio for the left LR Ratio and right displays. Apply in 2P LR mode Used to swap input sources for the Input Swap left and right displays... -
Page 20: Select Region
Select Region MENU DESCRIPTION DEFAULT REMARKS Left Side Select one region to control: Apply in 2P Right Side Left Side Left side, Right side or Full. LR mode Full Top Side Select one region to control: Apply in 2P Bottom Side Top Side Top Side, Bottom Side or Full. -
Page 21: Picture
Picture MENU DESCRIPTION DEFAULT REMARKS Backlight Adjust the target Luminance. Adjusts the brightness of the screen. Independent of Brightness Press the ˂ or > button to adjust brightness. each input Adjusts the contrast of the screen. Independent of Contrast Press the < or > button to adjust contrast. each input Adjusts the sharpness of the screen. -
Page 22: Color
Color MENU DESCRIPTION DEFAULT REMARKS Panel Uniformity Not applicable. Independent Gamma Used to select one of the various gammas. of each input Used to select one of the various color temperatures. Independent Temperature Clear * Set Gamma to OFF to adjust the red, green, of each input and blue values in the user mode. -
Page 23: Advance
Advance MENU DESCRIPTION DEFAULT REMARKS Used to select one of the various screen aspect Aspect Ratio Full ratios. Used to activate/deactivate the over scan func- Over Scan tion. [ON,OFF] Switching Time Used to set the screen switching time. Display Data Used to activate/deactivate the DDCCI function. -
Page 24: Input
Free Sync Not applicable. Used to activate/deactivate the screen freeze Freeze function. [ON,OFF] Input MENU DESCRIPTION DEFAULT REMARKS HDMI Used to select the monitor’s display Apply in 1P AUTO input sources. mode AVAS Auto Select Used to select the input sources for Left Side Apply in 2P the left and right screens. -
Page 25: Audio (Option)
Audio (Option) MENU DESCRIPTION DEFAULT REMARKS Volume Used to adjust the volume on the monitor. Used to activate/deactivate the mute Mute function. [ON, OFF] Don't Switch Audio Source if Line In is Currently Playing unless a Digital Source is Stand Along found. -
Page 26: Other
2.10 Other MENU DESCRIPTION DEFAULT REMARKS Reset Used to reset. Used to set the duration of the OSD Menu Time menu display. OSD H Used to adjust the horizontal position Position of the OSD menu. OSD V Used to adjust the vertical position of Position the OSD menu. -
Page 27: Osd Input Source
2.12 OSD Input Source HDMI Used to select the Input source. SDI(Option) * Auto Select cannot be selected in Multi-Display Mode. AVAS (Option) AUTO SELECT 2.13 PIP Table Main Source HDMI SDI (Option) AVAS (Option) Source HDMI SDI (Option) AVAS (Option) O PAX-355-C8 User Manual... - Page 28 PAX-355-C8 User Manual...
-
Page 29: Chapter 3 Technical Information
Chapter Technical Information... -
Page 30: Display
Display Specifications Item PAX-355-C8A-NBS PAX-355-C8E-NBS PAX-355-C8E-NAS PAX-355-C8D-NAS PAX-355-C8A-NBR PAX-355-C8E-NBR PAX-355-C8E-NAR PAX-355-C8D-NAR Screen Size 54.64" (1209.6(H) x 680.4(V) [mm]) (Active Area) Aspect ratio 16: 9 Number of Pixels 3840(H) x 2160(V) Pixel Pitch 0.315(H) mm x 0.315(V) [mm] Displayable Colors 1.07 Billion (10-bit) Brightness 500 cd/m (Typical) -
Page 31: Input/Output Terminals
Input/Output Terminals Specifications Item PAX-355-C8A-NBS PAX-355-C8E-NBS PAX-355-C8E-NAS PAX-355-C8D-NAS PAX-355-C8A-NBR PAX-355-C8E-NBR PAX-355-C8E-NAR PAX-355-C8D-NAR DC Power DC Jack DC5V or DC12V Output D-Sub Jack RS-232C Service Port DVI Jack Digital RGB: TMDS DVI Input MAX: 3840 x 2160@30Hz (Type D) DVI Jack Digital RGB: TMDS DVI Output MAX: 3840 x 2160@30Hz... -
Page 32: General
Caution! Do not touch signal input, signal output or other connectors, and the patient simultaneously. External equipment intended for connection to signal input, signal output or other connectors, shall comply with relevant IEC Standard (e.g., IEC60950 for IT equipment and IEC60601-1 series for medical electrical equipment). -
Page 33: Chapter 4 Safety Precautions And Maintenance
Chapter Safety Precautions and Maintenance... -
Page 34: Safety Precautions
Safety Precautions Caution! FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN SETTING UP AND USING THE LCD MONITOR. DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. -
Page 35: Image Persistence
Note! As with all personal display devices, Advantech recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use. -
Page 36: Cleaning The Lcd Panel
Note! If software tools are provided by Advantech they should be operated using the specific instructions provided. Any software tools provided should only be installed on a computer with appropriate systems to pre- vent unauthorized access. It is recommended to install anti-virus soft- ware and not connect to unsafe external networks. -
Page 37: Safe Storage
Safe Storage Safe storage of the LCD Monitor is in a range of minus 20 to plus 60 Celsius (68°F - 149°F). Storing the LCD Monitor out of this range could result in perma- nent damage. Safe Disposal of Waste This marking shown n the product or its literature, indicates that it ... - Page 38 PAX-355-C8 User Manual...
- Page 39 Chapter Troubleshooting...
- Page 40 NOTE: As with all personal display devices, Advantech recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.
- Page 41 PAX-355-C8 User Manual...
- Page 42 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2021...
