Summary of Contents for Manhattan Comfort Hampton

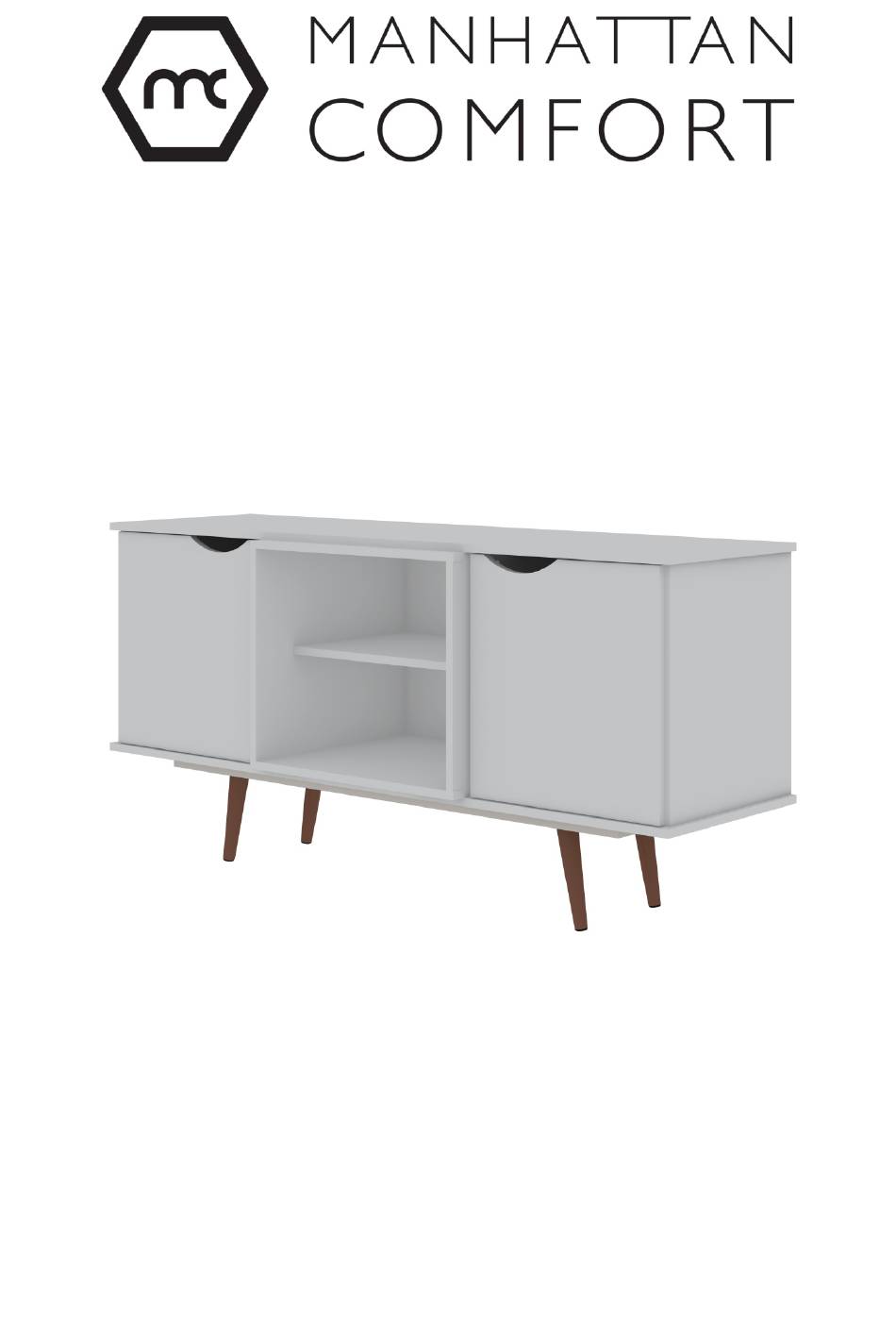

- Page 1 888-230-2225 help@manhattancomfort.com 319 RIDGE RD, DAYTON, NJ08810, NEW JERSEY - UNITED STATES Hampton TV stand 53.54"...
- Page 2 Technical information Maximum supported weight Dimension: W: 53.54" H: 26.57" D: 15.75" 44Lb 11Lb ASSEMBLY VIDEO Tools needed (not included)
- Page 3 FRONT VIEW REAR VIEW 09 10 PART DESCRIPTION QUANTITY RIGHT SIDE RIGHT PARTITION LEFT PARTITION LEFT SIDE BASE FEET STRUCTURE FEET TOP/ BASE NICHE SIDE NICHE SHELF NICHE BIGGER BACK COVER SMALLER BACK COVER RIGHT DOOR LEFT DOOR HARDWARE...
- Page 4 STEP 1 - Insert the hardware (B) in the part (01). STEP 2 - Connect the parts (01, 02, 03) with the hardware (C). STEP 3 - Connect the parts (01, 04, 05) with the hardware (C).
- Page 5 STEP 4 - Connect the part (06) onto the parts (02, 03,04, 05) with the hardware (A). STEP 5 USE THE GLUE (G) BEFORE FASTENING THE FEET (08). - Connect the parts (08) onto the parts (07) with the hardware (H). STEP 6 USE THE GLUE (G) BEFORE FASTENING...
- Page 6 STEP 7 - Connect the parts (09, 10, 11) with the hardware (A). STEP 8 - Connect the parts (09, 10, 11) with the hardware (A). STEP 9 - Insert the niche and connect onto the parts (03,04) with the hardware (J).
- Page 7 STEP 10 I48X - Connect the parts (12, 13) with the hardware (I). STEP 11 - Connect the hinges (E) into the parts (14, 15) with the hardware (D). STEP 12 - Connect the part (14) onto the part (02) and the part (15) onto the part (05) with the hardware (D).
