Manhattan Comfort 2GMCF Assembly Handbook

Fortress 31.5" mobile garage cabinet with drawer and shelves

Advertisement

Quick Links

1000008415 - 15/03/2018

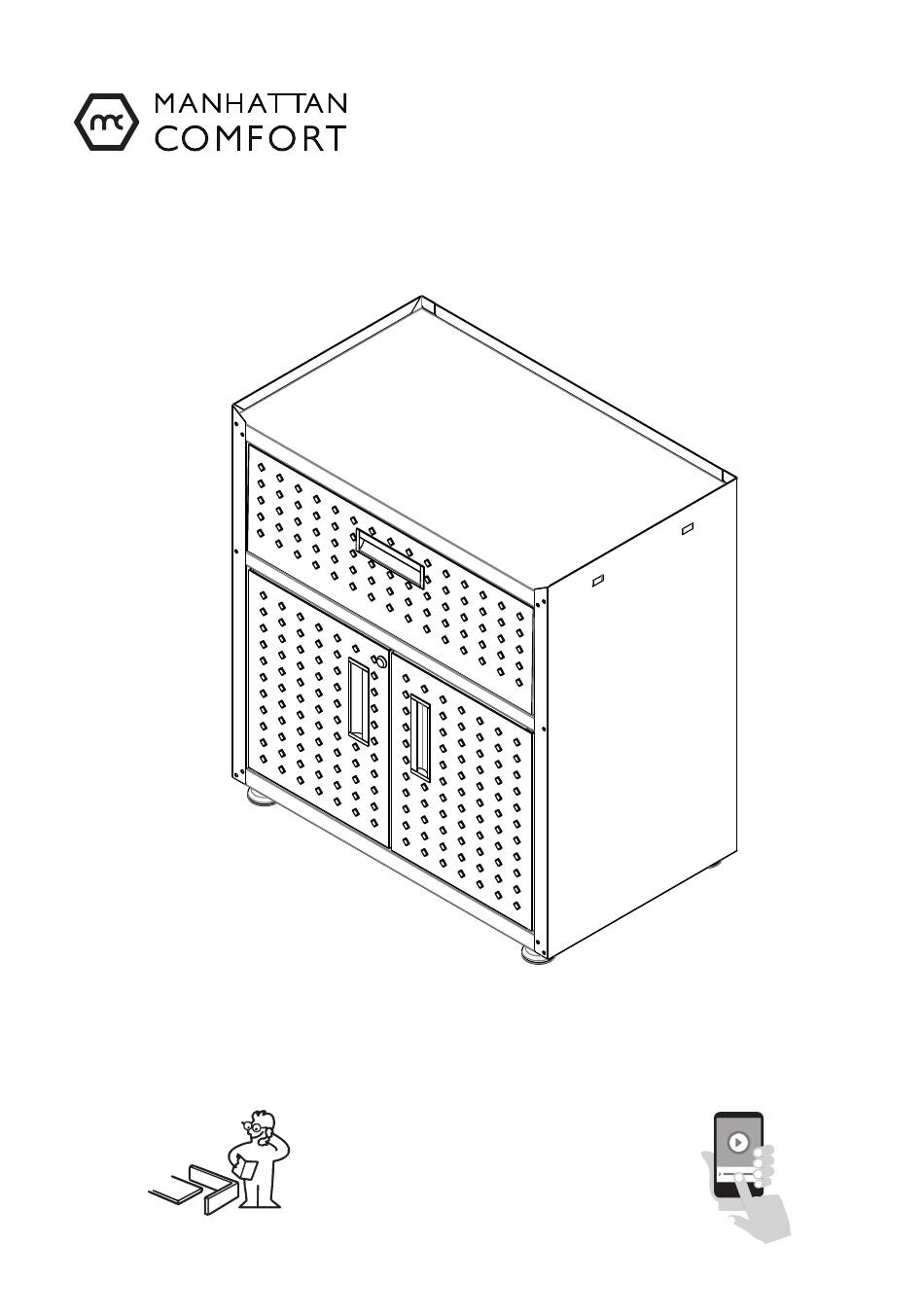

ASSEMBLY HANDBOOK –
FORTRESS 31.5" MOBILE
GARAGE CABINET WITH
DRAWER AND SHELVES
2GMCF
Stuck? Questions? We are here to help.
1-888-230-2225
View our assembly video online
help@manhattancomfort.com
www.manhattancomfort.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2GMCF and is the answer not in the manual?

Questions and answers

Summary of Contents for Manhattan Comfort 2GMCF

  • Page 1 1000008415 - 15/03/2018 ASSEMBLY HANDBOOK – FORTRESS 31.5" MOBILE GARAGE CABINET WITH DRAWER AND SHELVES 2GMCF Stuck? Questions? We are here to help. 1-888-230-2225 View our assembly video online help@manhattancomfort.com www.manhattancomfort.com...
  • Page 2 In order to ease the assembly, you should separate and identify the parts first Necessary hardware for the assembly * Included in the kit Do not place the parts directly onto the floor. Use a cardboard sheet or a mat to place the parts, during the separation and assembly.
  • Page 3: Hardware List

    ASSEMBLY HANDBOOK – FORTRESS 31.5" MOBILE GARAGE CABINET WITH DRAWER AND SHELVES Upper Back 3000007312 Left Side WARNING 3000007316 3000007270 Shelf 3000007311 Maximum weight supported by shelf and drawer Drawer Left Side Lower Back 3000007337 3000007366 Drawer Back 3000007365 Drawer Front 3000007355 Column 3000007344...
  • Page 4 STEP 1 1 - Fit part P7 inside part P3 2 - Fit both parts in the frontal side, with STEP 2 1 - Fit part P2 inside part P7 2 - Fit both parts in the frontal side, with...
  • Page 5 STEP 3 1 - Fit part P5 between part P2 and P3 2 - Check that all 4 tabs have been fitted 3 - Fit part P5 to parts P2 and P3, at the frontal side, with F1 STEP 4 1 - Turn the cabinet with the back side 2 - Fit parts P2 and P3 to parts P5 and P7 with upwards...
  • Page 6 STEP 5 1 - Fit part P10 into parts P2, P3 and P5 Check that all fits are supported over the bolts 2 - After fitting the parts, screw the bolts until locked WARNING Position part P10 on the P5 side for mounting the cabinet.
  • Page 7 STEP 7 1 - To assembly the cabinet with shoe fit the 2 - To assembly the cabinet with caster, align accessory F9 in part P7 as illustrated here the F10 and F11 to the holes in part P7 below and turn to screw. To level the and fix them with F3 height or the cabinet, turn the shoe either 3 - WARNING: Casters with lock (F11) must be...
  • Page 8 STEP 9 1 - Fit the lower part P19 in diagonal position to insert it inside the cupboard 2 - Lean part P19 in part P2, P3 and place it over the F7 detailed in the figure here below 3 - Lower the other side of part P19, leaning it over the left F7 STEP 10 1 - Insert part P17 inside the cabinet, in diagonal position.
  • Page 9 STEP 11 1 - To assembly the doors, fit door P26 lower hinge bolt inside the bushing fixed in part P7 2 - Then, pull down the pin of door P26 upper hinge; align the door and release the pin to fit the bushing fixed in part P17 3 - Repeat the step for part P27 1º...
  • Page 10 STEP 13 1 - Align parts P12 and P13 to part P15, until it leans against part P28 2 - Fit them with F1 STEP 14 1 - Insert part P14 over part P15 and between parts P12 and P13 2 - Then, fix part P14 to parts P12, P13 and P15, with F1...
  • Page 11 STEP 14 1 - Fit the drawers – already assembled – between parts P2 and P3, through the slidings 2 - Check that slidings of both sides are properly fitted. Move the drawer, opening and closing it, testing STEP 15 1 -Insert product log...
