The indicated values consider static weights and evenly distributed over the parts.
10
lb
10
lb
Plaza Panel 64.25
Model # 224BMC1, 224BMC12, 224BMC2, 224BMC21, 224BMC6,
888-230-2225
help@manhattancomfort.com
224BMC8, 224BMC9, 224BMC94
Ed. 002, 2019/07 - Manhattan Comfort.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Manhattan Comfort Plaza Panel 64.25 224BMC1
Summary of Contents for Manhattan Comfort Plaza Panel 64.25 224BMC1

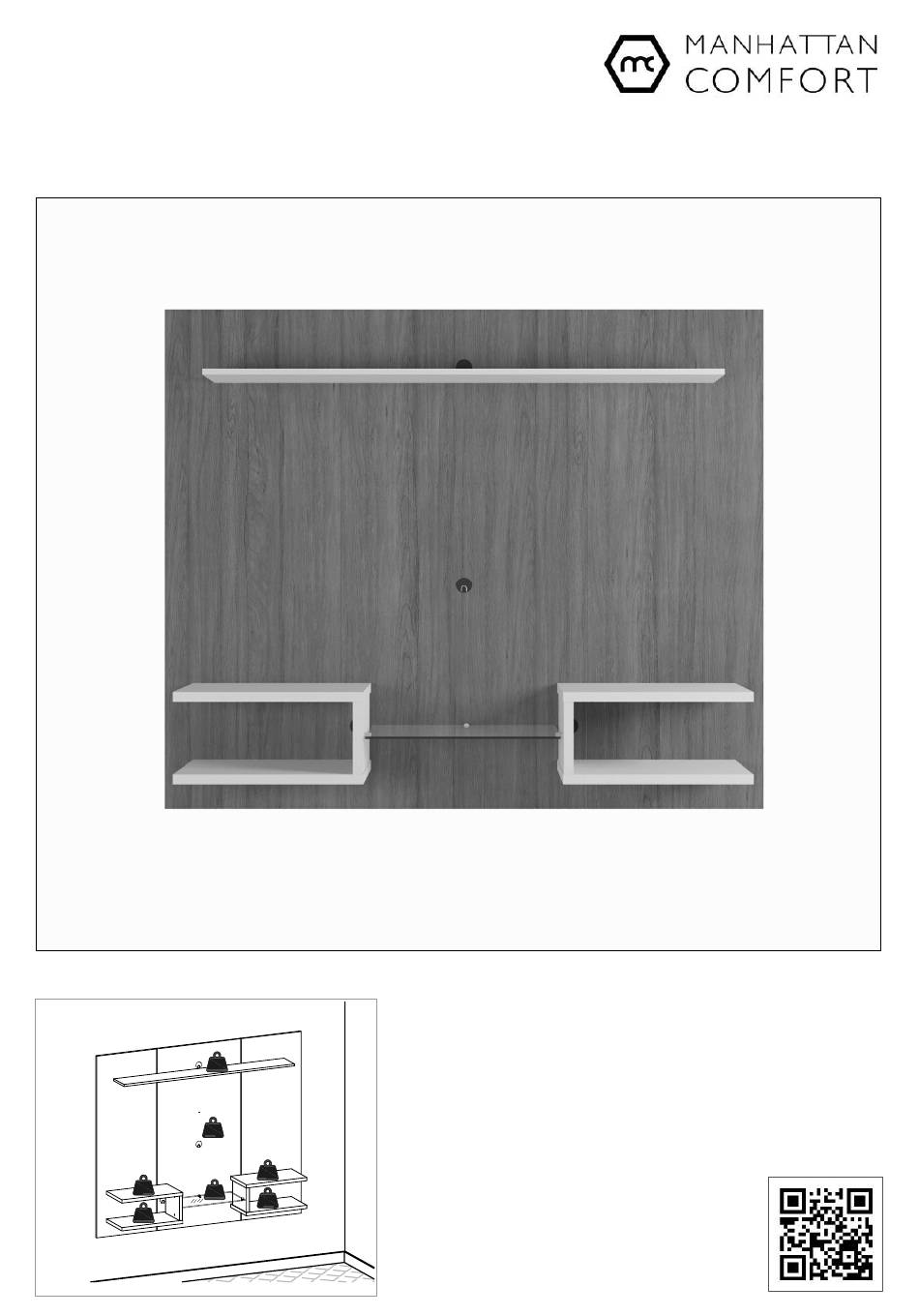

- Page 1 888-230-2225 help@manhattancomfort.com Plaza Panel 64.25 Model # 224BMC1, 224BMC12, 224BMC2, 224BMC21, 224BMC6, 224BMC8, 224BMC9, 224BMC94 The indicated values consider static weights and evenly distributed over the parts. Ed. 002, 2019/07 - Manhattan Comfort.
- Page 2 INCLUDED IN THE PACKAGE REAR VIEW For fixing behind the panel For fixing on the wall n.° ID Parts Identification (Description) Quantity Left and Right Panel Middle Panel Rear Column Upper Rear Bar Upper Shelf Left and Right Side Panel Left and Right Top Panel Left Base Right Base...
- Page 3 TOOLS NEEDED Simple and phillips Simple hammer. Level indicator. Drilling machine and electric screwdriver with screwdriver. drill bit Ø1/2 inche and phillips tips. IMPORTANT! Two people are recommended to assemble this product. INCLUDED IN THE PACKAGE TFA1...
- Page 4 STEP 1 • Line the floor with the foam DETAIL 1 mantle of the packing to protect the parts and arrange the Panels (01) and (02) with the rear face upwards, correctly checking the position of each according the holes and as shown in the drawing.
- Page 5 STEP 4 ATENTION! DETAIL 3 Before installing the panel, check the conditions of the wall for strength to 1/2" hole properly support and anchor the in the wall weight of the suspended furniture, including equipment and objects Kap Toggle that may be fixed to the panel. bushing (FKT) The Kap Toggle bushings (FKT) supplied with the product are for...
- Page 6 STEP 5 Fixed on the wall. • With the Panel already assembled, fit the Bar (04) fixed behind the panel in the Bar (11) fixed Fixed behind on the wall. the panel. STEP 6 • At the end of the installation, apply the security bolt (P30) in the indicated hole, to fix the Middle Panel (02) in the Bar (11)
