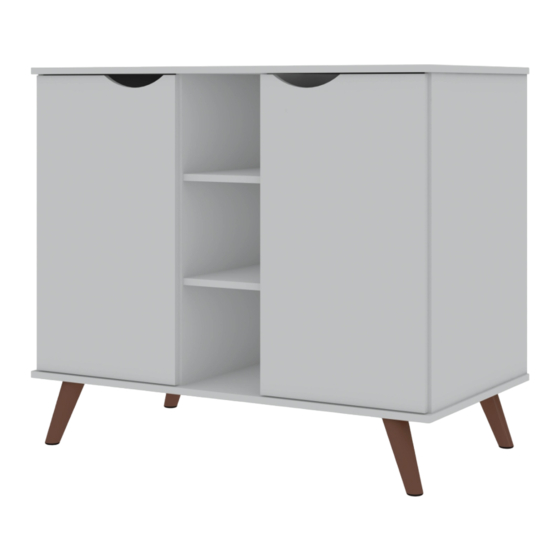

Technical information Maximum supported weight Dimension: W: 39.37" H: 33.86" D: 21.26" 22Lb 11Lb ASSEMBLY VIDEO Tools needed (not included)
Page 3
FRONT VIEW REAR VIEW PART DESCRIPTION QUANTITY RIGHT SIDE RIGHT PARTITION LEFT PARTITION LEFT SIDE BASE FEET BIGGER BACK COVER SMALLER BACK COVER CENTRAL SHELF RIGHT/ LEFT SHELF RIGHT DOOR LEFT DOOR HARDWARE...
Page 4
STEP 1 - Insert the hardware (B) into the part (01). - Insert the hardware (H) into the parts (03, 04). STEP 2 - Connect the parts (02, 03, 04, 05, 11) with the hardware (A). STEP 3 - Connect the parts (02, 03, 04, 05) onto the part (01) with the hardware (C).
Page 5
STEP 4 USE THE GLUE (L) BEFORE FASTENING THE FEET (07). - Connect the parts (07) under the part (06) with the hardware (A). STEP 5 - Connect the part (06) onto the parts (02, 03, 04, 05) with the hardware (A). STEP 6 G 06X - Connect the parts (08, 09) with the hardware (I+G).
Page 6
STEP 7 - Connect the hinges (F) into the parts (12, 13) with the hardware (D). STEP 8 - Connect the part (12) onto the part (02) and the part (13) onto the part (05) with the hardware (D). Attention! This step is very important! STEP 9 You need to attach the furniture on the wall to avoid any tip over risk.
Page 7
wings Press the hardware wings (E) to put in the hole that you drilled in the wall. wings Hardware (E), plugged in the wall. Connect the hardware (J) onto the wall with the hardware (M). Then fasten with the hardware (K) the hardware (J) on the part (01).
