In order to ease the assembly, you should separate and identify the parts first Do not place the parts directly onto the floor. Use a cardboard sheet or a mat to place the parts, during the separation and assembly. IMPORTANT In order to avoid severe or even fatal injuries, follow the instructions carefully.

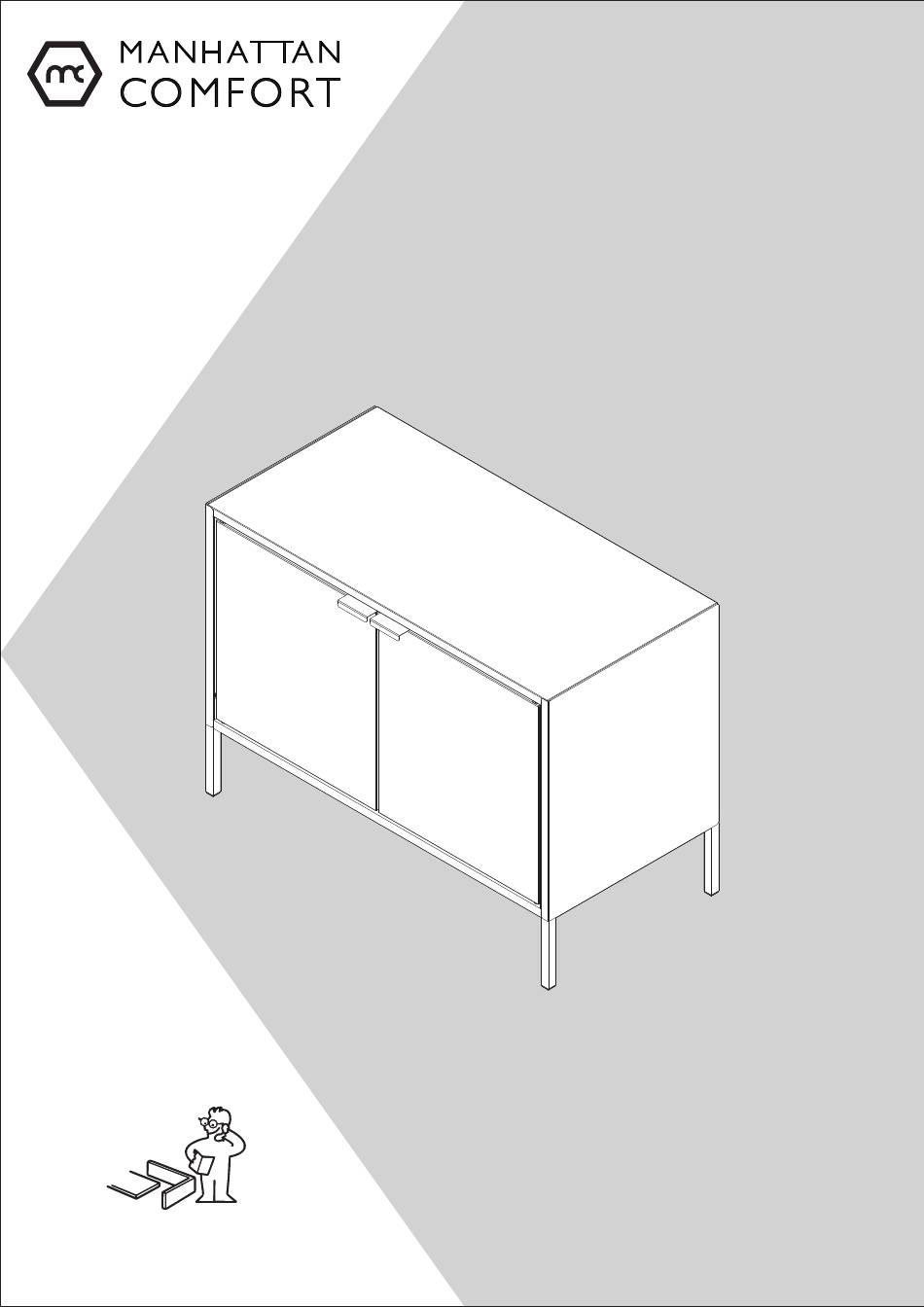

ASSEMBLED PRODUCT H: 20.07'' W:27.55'' L:13.77'' Maximum weight supported distributed Hardware list 1000008297 1000008616 1000009033 1000000281 - WHITE 1000007352 - BLACK 1000010221 - BLUE Qty. 2 Qty. 2 Qty. 1 Qty. 2 1000010136 1000008285 1000008285 3000009645 - WHITE 3000009643 - BLACK 3000009649 - BLUE 3000009647 - GREY Qty.
Page 4
1 - Identify the parts as figure below: P8 with hole and P9 without hole 1 - Attach the P9 part on the P1 and P2 parts in the indicated direction. 2 - Then attachthe P8 part on the P1 and P2 parts.
Page 5
1 - Check the alignment of the holes on the fitted parts. 2 - The hole in the horizontal bar of part P8, should be up. 1 - With the F3 end, smash the safety grappel, locking the P8 and P9 part to the P1 and P2 part.
Page 6
1 - Identify the cutout on the top end of the P5 part. 2 - Attach the P5 part on the P1, P2 and P9 parts. 3- Slide part P5 to support on parts P1 and P2. 1 - With the end of F3, smash the safety claw, locking part P5 to part P1 and P2.
Page 7
1 - Attach the joint of the front of the P4 part under the P8 part. 2 - Lower the P4 part as indicated. 1 - Check all the fittings before moving forward.
Page 8
1 - Attach the P3 part on the parts P1 and P2. 2 - Pull the front of the P3 part.
Page 9
1 - With the F3 end, smash the safety grappel, locking the P3 part to the P5 part. IMPORTANT: CABINET MUST BE ATTACHED TO THE WALL 1 - Lay the cabinet against the wall and mark the hole.
Page 10
1 - Drill the wall on the marked point, using a ½” drill bit. ½” 1 - Insert the metal part of the bushing into the hole until it overcomes the wall. WALL...
Page 11
1 - Pull the bushing driving it against the wall and then push the plastic ring until it leans close to the wall Plastic ring WALL 2 - Break the bushing's rods WALL WALL WALL...
Page 12
1 - Insert the screw F2 into the hole of part P5. 2 - Turn screw F2 with part F3 clockwise. 3 - Press part F4 against the heads of the F2 screws. 1 - Attach the F5 into the P8 part.
Page 13
1 - Attach the F7 handle to the doors P6 and P7 as indicated below 1 - Attach the F6 into the P6 and P7 holes.
Page 14
1 - Attach part P7 to the bottom of the cabinet through part F5 2 - Finish engaging part P7 through the pivoting wrench as shown below. 1 - Glue the sticker F8 in the lower right as indicated. 2 - Attach part P6 to the bottom of the cabinet through part F5 3 - Finish engaging part P6 through the pivoting wrench as shown below.
Page 15
TAKING GOOD CARE OF YOUR CABINET Cleaning and caring instructions: - Avoid dragging objects on top of the cabinet. They might scratch the finishing. - Only non-abrasive natural chemical products are recommended to clean your cabinet. Simply wipe the cabinet down with a wet cloth to remove the cleaning product excess.
Page 16
ITEMS EXCLUDED FROM WARRANTS This limited warranty does not cover: 1. In-home service including, but not limited to, service calls to correct the installation of any Manhattan Comfort Smart Diy products or to instruct the consumer on how to use or install them.
