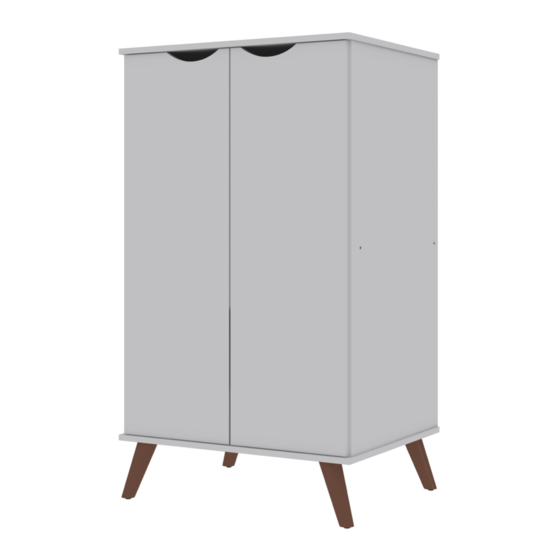

- Page 1 888-230-2225 help@manhattancomfort.com 319 RIDGE RD, DAYTON, NJ08810, NEW JERSEY - UNITED STATES Hampton shoe closet...
-
Page 2: Technical Information
Technical information Maximum supported weight Dimension: W: 26.77" H: 46.46" D: 21.26" 11Lb 11Lb ASSEMBLY VIDEO Tools needed (not included) - Page 3 FRONT VIEW REAR VIEW PART DESCRIPTION QUANTITY RIGHT SIDE SHELF LEFT SIDE BASE BACK COVER (DRILLED) BACK COVER FEET ADJUSTABLE SHELF LEFT DOOR RIGHT DOOR HARDWARE...
- Page 4 STEP 1 - Insert the hardware (H) into the parts (02, 04). - Insert the hardware (B) into the part (01). STEP 2 - Connect the part (02) onto the part (01) with the hardware (C). - Connect the part (03) onto the part (02) with the hardware (A).
- Page 5 STEP 4 - Connect the parts (06, 07) with the hardware (I+J). STEP 5 USE THE GLUE (L) BEFORE FASTENING THE FEET (08). - Connect the parts (08) under the part (05) with the hardware (A). STEP 6 - Insert the parts (09) as showed above.
- Page 6 STEP 7 - Connect the hinges (F) into the parts (10, 11) with the hardware (D). STEP 8 - Connect the part (11) onto the part (02) and the part (10) onto the part (04) with the hardware (D). Attention! This step is very important! STEP 9 You need to attach the furniture on the wall to avoid any tip over risk.
- Page 7 wings *Press the hardware wings (E) to put in the hole that you drilled in the wall. wings Hardware (E), plugged in the wall. Connect the hardware (M) onto the wall with the hardware (G). Then fasten with the hardware (K) the hardware (M) on the part (01).
