Manhattan Comfort Hampton Manual
Accent cabinet 33.46"
Hide thumbs
Also See for Hampton:
- Manual (11 pages) ,
- Quick start manual (8 pages) ,
- Technical information (7 pages)
Related Manuals for Manhattan Comfort Hampton
Summary of Contents for Manhattan Comfort Hampton

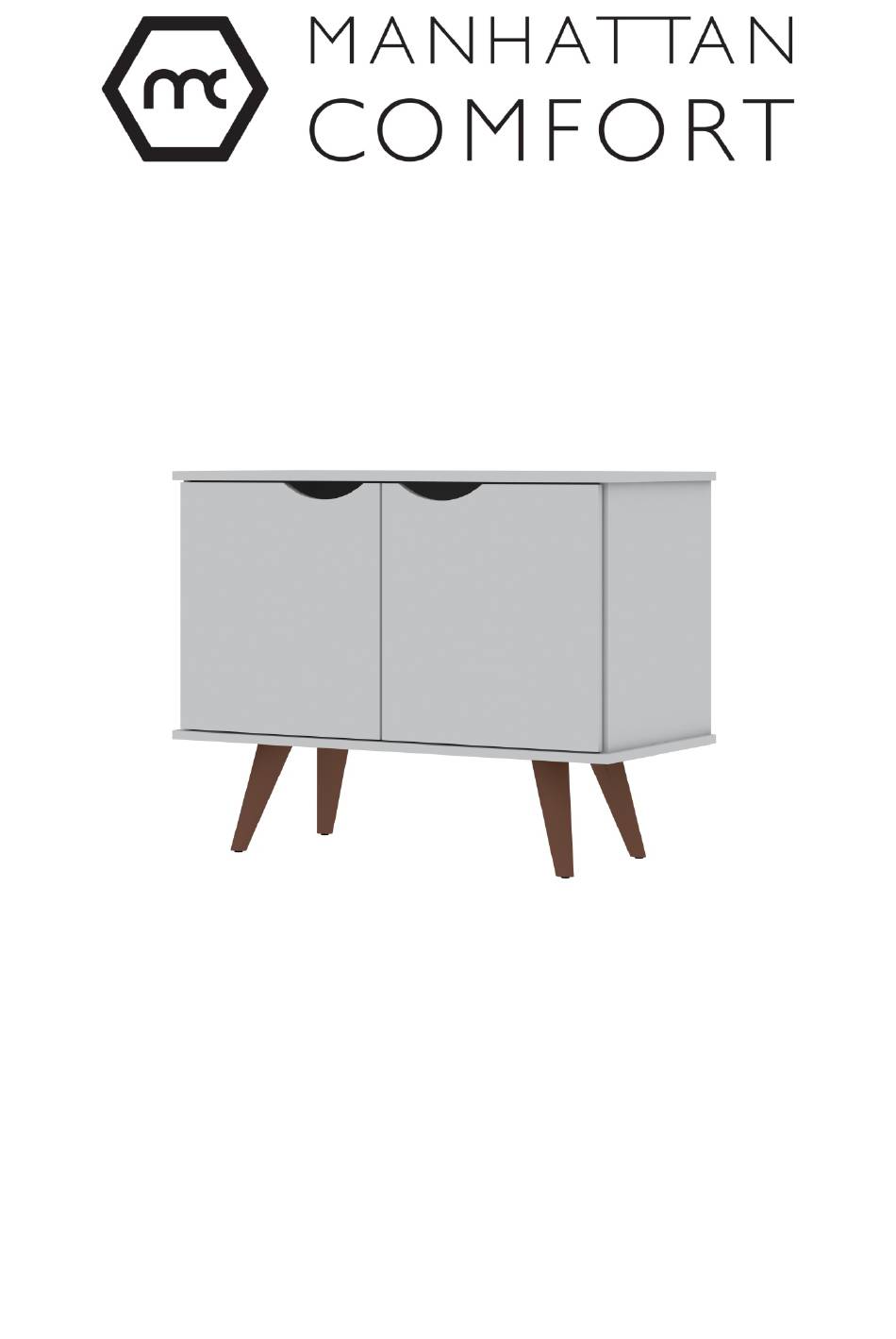

- Page 1 888-230-2225 help@manhattancomfort.com 319 RIDGE RD, DAYTON, NJ08810, NEW JERSEY - UNITED STATES Hampton accent cabinet 33.46"...
- Page 2 Technical information Maximum supported weight Dimension: W: 33.07" H: 25.59" D: 15.75" 11Lb 11Lb ASSEMBLY VIDEO Tools needed (not included)
- Page 3 FRONT VIEW REAR VIEW PART DESCRIPTION QUANTITY RIGHT SIDE LEFT SIDE BASE FEET BACK COVER SHELF RIGHT DOOR LEFT DOOR HARDWARE...
- Page 4 STEP 1 - Insert the hardware (B) in the part (01). - Insert the hardware (G) in the parts (02, 03). STEP 2 - Connect the parts (01, 02) with the hardware (C). STEP 3 - Connect the part (03) onto the part (01) with the hardware (C).
- Page 5 STEP 4 USE THE GLUE (J) BEFORE FASTENING THE FEET (05). - Connect the parts (05) under the part (04) with the hardware (H+F). STEP 5 - Connect the part (04) onto the parts (02, 03) with the hardware (A). STEP 6 I30x - Connect the hardware (K) as...
- Page 6 STEP 7 - Insert the part (07) as showed above. STEP 8 - Connect the hinges (E) into the parts (08, 09) with hardware (D). STEP 9 - Connect the part (08) onto the part (02) and the part (09) onto the part (03) with the hardware (D).
