Summary of Contents for Manhattan Comfort Hampton

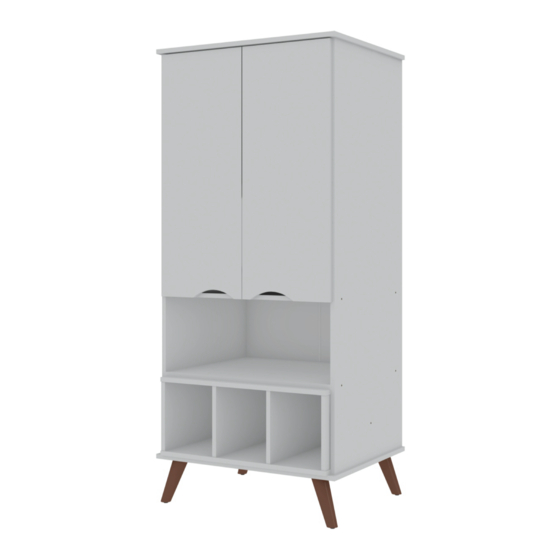

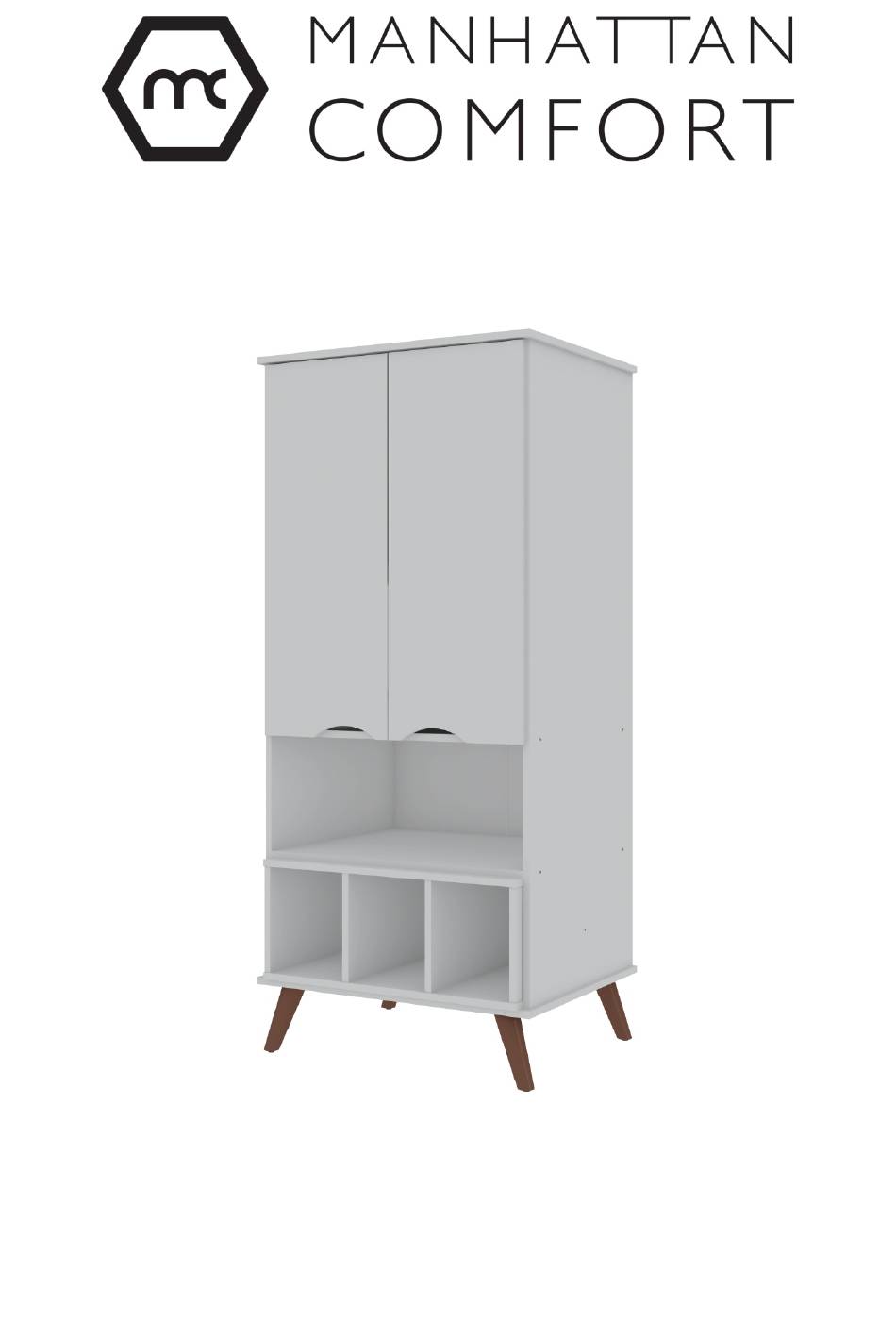

- Page 1 888-230-2225 help@manhattancomfort.com 319 RIDGE RD, DAYTON, NJ08810, NEW JERSEY - UNITED STATES Hampton Cabinet...
- Page 2 Technical information Maximum supported weight Dimension: W: 26.77" H: 60.70" D: 21.26" 11Lb ASSEMBLY VIDEO Tools needed (not included)
- Page 3 FRONT VIEW REAR VIEW PART DESCRIPTION QUANTITY RIGHT SIDE SHELF LEFT SIDE BASE BACK COVER (DRILLED) BACK COVER FEET NICHE TOP/ BASE NICHE DIVISION ADJUSTABLE SHELF RIGHT DOOR LEFT DOOR HARDWARE...
- Page 4 STEP 1 - Insert the hardware (B) in the part (01). - Insert the hardware (H) in the parts (02, 04). STEP 2 - Connect the parts (01, 02) with the hardware (C). - Connect the parts (03) with the hardware (A). STEP 3 - Connect the part (04) onto the part (01) with the hardware (C).
- Page 5 STEP 4 I32x - Connect the hardware (J) as showed above. - Connect the parts (06, 07) with the hardware (I+J). STEP 5 USE THE GLUE (L) BEFORE FASTENING THE FEET (08). - Connect the part (08) under the part (05) using two screws (A) for each one.
- Page 6 STEP 7 - Connect the part (11) and the niche onto the parts (02, 04) with the hardware (G). STEP 8 - Connect the hinges (F) into the parts (12, 13) with the hardware (D). STEP 9 - Connect the part (12) onto the part (02) and the part (13) onto the part (04) with the hardware (D).
- Page 7 Attention! This step is very important! You need to attach the furniture on the wall to avoid any tip over risk. Follow the procedures as showed below. Pass the hardware (M) through the hole of the part (06) as shown in the figure. You will need a pencil to mark where you should Approach as close as drill the wall with a 3/8"...
