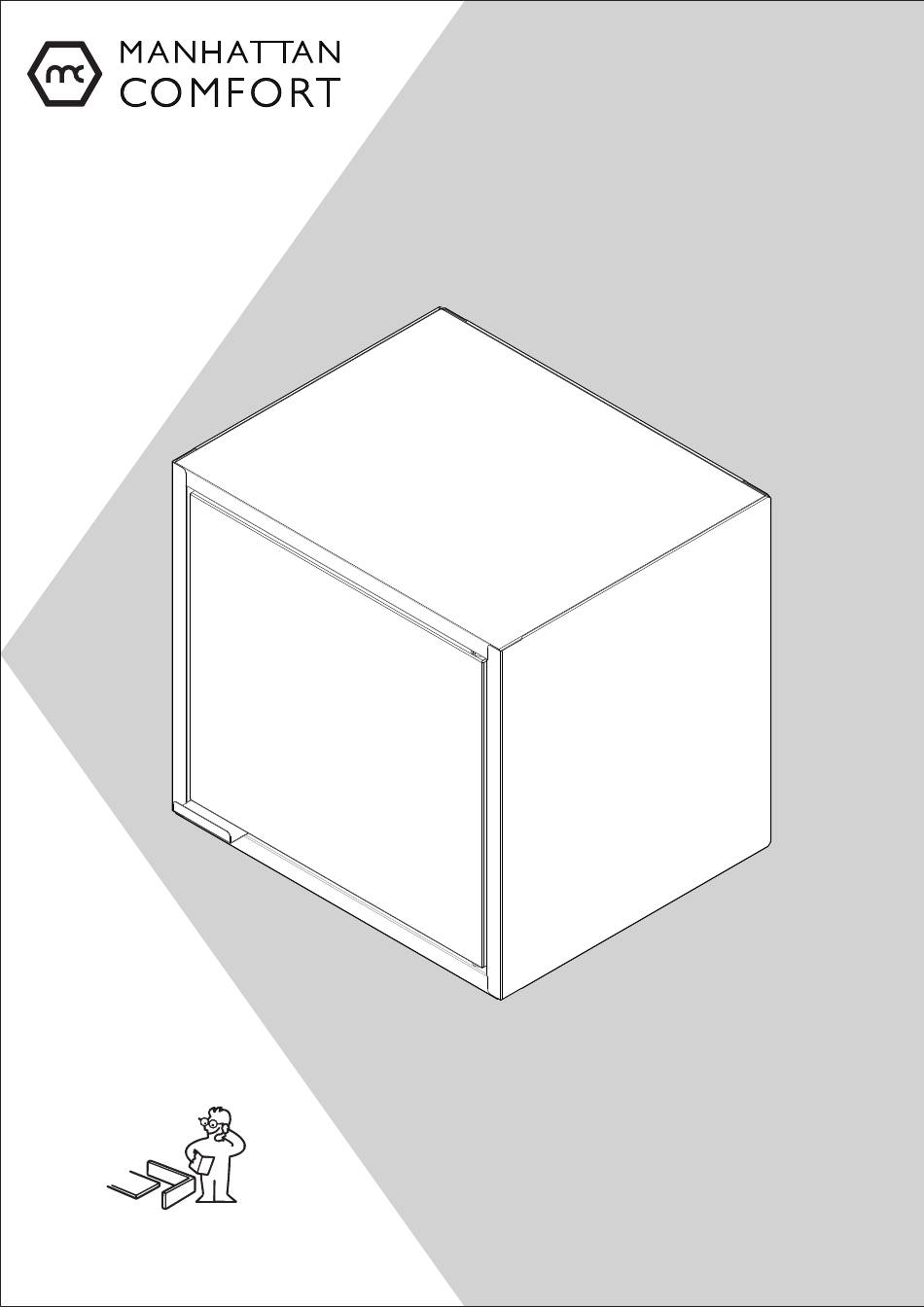

- Page 1 1000010419 - 20/03/2019 Assembly Guide Model: 12GMC1 / 12GMC2 / 12GMC3 / 12GMC4 Floating Square Cabinet Stuck? Questions? We are here to help. 1-888-230-2225 help@manhattancomfort.com...
- Page 2 In order to ease the assembly, you should separate and identify the parts first Do not place the parts directly onto the floor. Use a cardboard sheet or a mat to place the parts, during the separation and assembly. IMPORTANT In order to avoid severe or even fatal injuries, follow the instructions carefully.
-
Page 3: Identification Of Parts
IDENTIFICATION OF PARTS IDENTIFY THE COLOR OF YOUR CABINET Dimension N° DESCRIPTION BLACK MATT WHITE MATT BLUE MATT GREY MATERIAL QUANTITY LENGTH WIDTH THICKNESS 3000009529 STEEL 3000009526 3000009528 12.67'' 11.22'' SIDE 1 DOOR SMART 0.59'' 12.67'' 11.22'' 0.98'' 3000009069 STEEL SIDE SMART 3000009086 3000009096... -
Page 4: Hardware List
Maximum weight supported distributed Hardware list 1000008297 1000008616 1000009033 1000000281 - WHITE 1000007352 - BLACK 1000010221 - BLUE Qty. 4 Qty. 4 Qty. 1 Qty. 4 3000008409 1000010136 1000008285 3000009645 - WHITE 1000008285 3000009643 - BLACK 3000009649 - BLUE 3000009647 - GREY Qty. - Page 5 1 - Attach the parts P1 and P2, under the part P5. Positioning the cut-out of part P5 over the safety grappel of parts P1 and P2. Magnet closure...
- Page 6 1 - Identify the parts as figure below: P4 with hole and P3 with socket. 1 - Slightly incline the part P4, and place it inside the cut - out of the parts P1 and P2. 2 - Slide part P4 into the folds of part P1, P2 and P5.
- Page 7 1 - With the end of F3, smash the safety claw, locking part P4 to part P1 and P5. 2 - Finish folding it mannually. IMPORTANT: REMOVE THIS RIBBON ONLY TO CONTINUE MOUNTING...
- Page 8 1 - Attach the P3 part onto the P1 and P2 parts. 2 - Check all the fittings, before continuing. 1 - With the end of F3, smash the safety claw, locking part P3 to part P1 and P4. 2 - Finish folding it mannually.
- Page 9 1 - Using the F5 template, make markings on the wall as indicated. 2 - It is necessary to use the level. 3 - Drill the wall over the marked points. ½” IMPORTANT: CABINET MUST BE ATTACHED TO THE WALL USE THE CARDBOARD TEMPLATE TO FIX THE WALL CABINET ON THE WALL IT IS IMPORTANT TO USE A LEVEL 2 - Pull the bushing driving it against the wall...
- Page 10 1- Insert the screw F2 into the hole on the wall. 2- Turn the screw clockwise, using the F3 part . 1- Approach the cabinet by fitting the F2 screw.
- Page 11 1 - Align the cabinet with the use of a level. 2 - Mark the wall through the holes in the bottom of the cabinet. 1 - Move the cabinet away 2 - Drill the wall over the marked points. ½”...
- Page 12 2 - Pull the bushing driving it against the wall 1 - Insert the metal part of the bushing into the hole until it overcomes the wall. and then push the plastic ring until it leans close to the wall. WALL Plastic ring WALL...
- Page 13 1 - Press part F4 against the heads of the F2 screws. 2 - Insert F5 into the hole in part P3. 1 - Attach the F8 handle to the door P6 as indicated below...
- Page 14 1 - Attach part P6 to the bottom of the cabinet through part F6 2 - Finish engaging part P6 through the pivoting wrench as shown below. 1 - Attach the F7 into the P6 holes..
- Page 15 IMPORTANT: REMOVE THE RIBBON TO FINISH THE ASSEMBLY 1 - Glue F8 to part P6 in the indicated area. TAKING GOOD CARE OF YOUR CABINET Cleaning and caring instructions: - Avoid dragging objects on top of the cabinet. They might scratch the finishing. - Only non-abrasive natural chemical products are recommended to clean your cabinet.
- Page 16 1. In-home service including, but not limited to, service calls to correct the installation of any Manhattan Comfort Smart Diy products or to instruct the consumer on how to use or install them. 2. Damage resulting from improper handling or shipping of products, or products damaged by accident, alteration, misuse, abuse, fire, flood, improper installation, acts of God, neglect, corrosion,...
