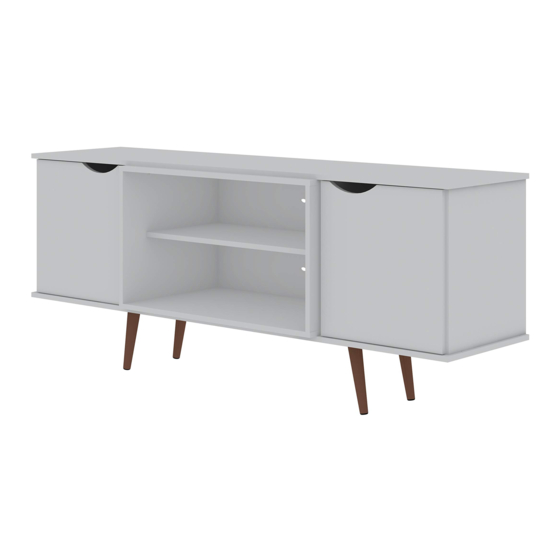

Manhattan Comfort Hampton Quick Start Manual
Tv stand 62.99"
Hide thumbs
Also See for Hampton:
- Manual (11 pages) ,
- Quick start manual (8 pages) ,
- Technical information (7 pages)
Subscribe to Our Youtube Channel
Related Manuals for Manhattan Comfort Hampton
Summary of Contents for Manhattan Comfort Hampton

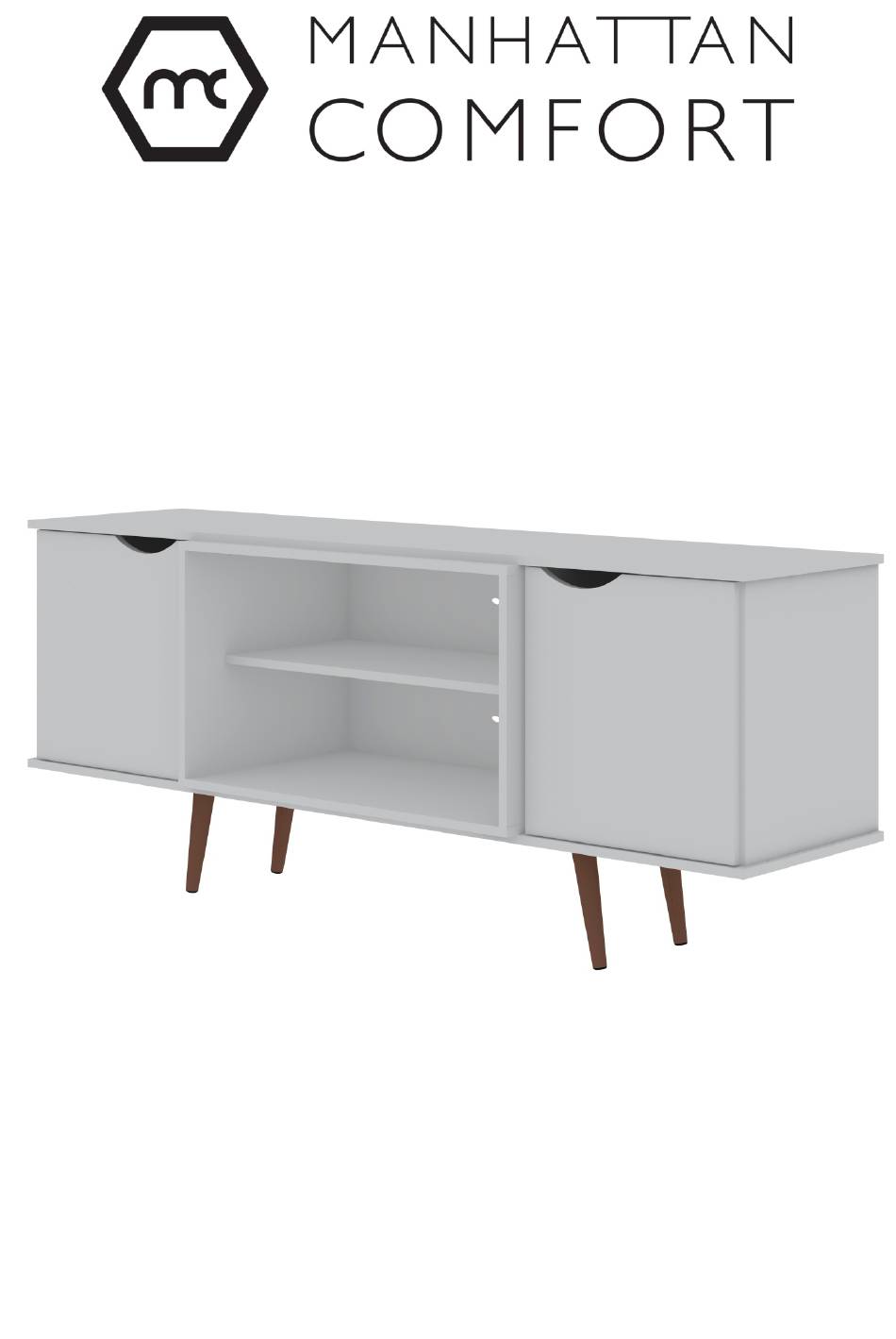

- Page 1 888-230-2225 help@manhattancomfort.com 319 RIDGE RD, DAYTON, NJ08810, NEW JERSEY - UNITED STATES Hampton TV stand 62.99"...
- Page 2 Technical information Maximum supported weight Dimension: W: 62.99" H: 25.98" D: 15.75" 55Lb 11Lb ASSEMBLY VIDEO Tools needed (not included)
- Page 3 FRONT VIEW REAR VIEW PART DESCRIPTION QUANTITY RIGHT SIDE RIGHT PARTITION LEFT PARTITION LEFT SIDE BASE FEET BIGGER BACK COVER SMALLER BACK COVER TOP/ BASE NICHE SIDE NICHE SHELF NICHE RIGHT DOOR LEFT DOOR HARDWARE...
- Page 4 STEP 1 - Insert the hardware (B) in the part (01). STEP 2 - Connect the parts (01, 02, 03) with the hardware (C). STEP 3 - Connect the parts (01, 04, 05) with the hardware (C).
- Page 5 STEP 4 USE THE GLUE (G) BEFORE FASTENING THE FEET (07). - Connect the part (07) under the part (06) with the hardware (H+F). STEP 5 - Connect the part (06) onto the parts (02, 03, 04, 05) with the hardware (A). STEP 6 - Connect the parts (10, 11, 12) with the hardware (A).
- Page 6 STEP 7 - Connect the parts (10, 11, 12) with the hardware (A). STEP 8 - Insert the niche and connect onto the parts (03, 04) with the hardware (J). STEP 9 I 52X - Connect the parts (08, 09) with the hardware (I).
- Page 7 STEP 10 - Connect the hinges (E) into the parts (13, 14) with the hardware (D). STEP 11 - Connect the part (13) onto the part (02) and the part (14) onto the part (05) with hardware (D).
