Manhattan Comfort SB-4GLF Manual

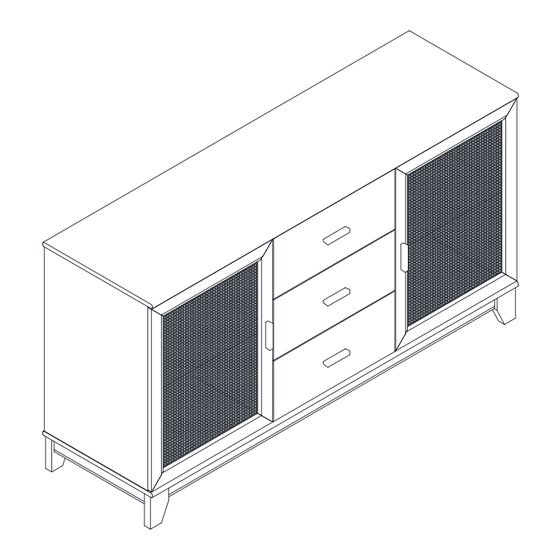

Sheridan sideboard cabinet
Hide thumbs

Advertisement

Quick Links

Download this manual
Sheridan Sideboard Cabinet
SB-4GLF
V.11292022

Advertisement

loading
Need help?

Need help?

Do you have a question about the SB-4GLF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Manhattan Comfort SB-4GLF

Summary of Contents for Manhattan Comfort SB-4GLF

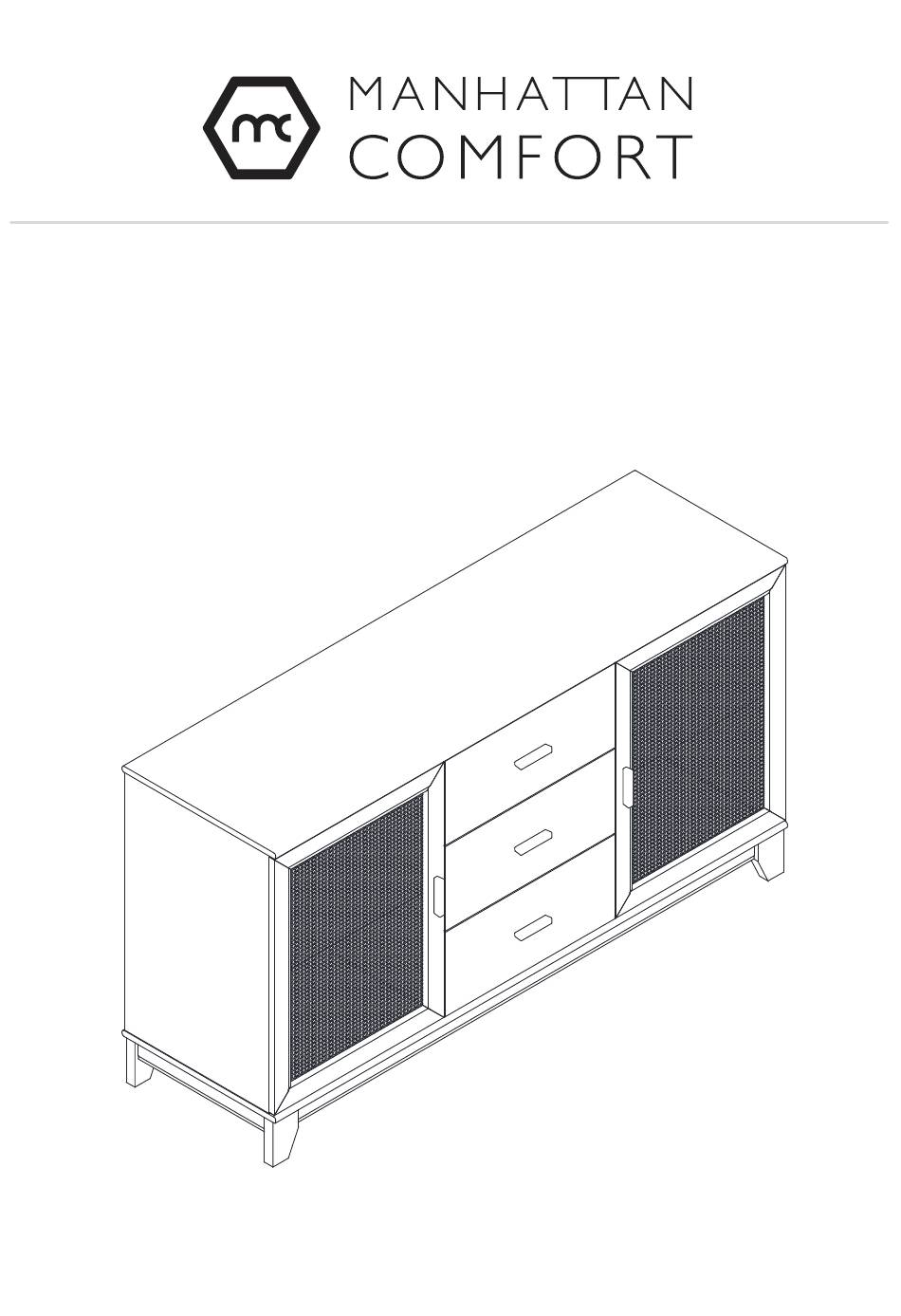

  • Page 1 Sheridan Sideboard Cabinet SB-4GLF V.11292022...

  • Page 2: For Best Results

    • Assemble item on a soft surface, such as cardboard or carpet, to protect finish. • Proper assembly requires two people. TOOLS REQUIRED View our assembly video online: WWW.MANHATTANCOMFORT.COM Stuck? Question? We are here to help. tel: 908-888-0818 e-mail: help@manhattancomfort.com Page 2 SB-4GLF...
  • Page 3 K. LONG BRACE(2) L. SHORT BRACE(2) O. FOOT(2) Y. FOOT(2) P. MIDDLE FOOT(2) Q. DOOR(2) R. DRAWER FRONT(3) S. DRAWER SIDE(3) T. LOWER DRAWER RIGHT SIDE(2) Z. UPPER DRAWER RIGHT SIDE(1) U. DRAWER BACK(3) X. DRAWER BOTTOM(3) Page 3 SB-4GLF...
  • Page 4 Hardware Identifi cation Page 4 SB-4GLF...

  • Page 5: Warranty Policy

    WARRANTY POLICY All Manhattan Comfort furniture products are warranted, to the original purchaser at the time of purchase and for a period of 30 days thereafter. Our warranty is limited to new products purchased in factory sealed cartons. This warranty is valid in the United States of America and Canada.
  • Page 6 Step 1 Assemble your unit on a carpeted floor or on the empty ◆ carton to avoid scratching your unit or the floor. Turn thirty-two CAM SCREWS (3) into the TOP(A), ◆ DRAWER FRONTS(R) and FEET(O and Y). Page 6 SB-4GLF...
  • Page 7 Step 2 Push eight HIDDEN CAMS (4) into the ENDS (C and D) ◆ and the UPRIGHT (E and F). Page 7 SB-4GLF...
  • Page 8 Step 3 Push twenty-four HIDDEN CAMS (4) into the UPPER BACK (H), ◆ DRAWER SIDES (S T and Z) and the SHORT BRACE (L) Page 8 SB-4GLF...
  • Page 9 Fasten the DRAWER SIDES (S and Z) to the DRAWER BACK (U). ◆ Use four PAN HEAD SCREWS (14). NOTE: You should start each SCREW a few turns before ◆ completely tightening any of them. Page 9 SB-4GLF...
  • Page 10 DRAWER SIDES (S and T) and DRAWER BACK (U). ◆ NOTE: Please repeat this step for another drawer. Slide the DRAWER BOTTOM (X) into the ◆ grooves in the DRAWER SIDES (S and Z) and DRAWER BACK (U). Page 10 SB-4GLF...
  • Page 11 NOTE: Please repeat this step for another drawer. ◆ Fasten the LEFT DRAWER FRONT (R) to the DRAWER SIDES (Z and S). Tighten four HIDDEN CAMS. ◆ Be sure the DRAWER BOTTOM inserts into the DRAWER FRONT groove. ◆ Page 11 SB-4GLF...
  • Page 12 Use four FLAT HEAD SCREWS (17) through the exact holes shown. NOTE: Please repeat this step for another drawer. ◆ ◆ Fasten two EXTENSION SLIDES (2) to the DRAWER SIDES (S and Z). Use four FLAT HEAD SCREWS (17) through the exact holes shown. Page 12 SB-4GLF...
  • Page 13 Step 8 Fasten the PULL (6) to the DRAWER FRONT (R). Use ◆ two PAN HEAD SCREWS (16). NOTE : Please repeat this step for another drawers. ◆ Page 13 SB-4GLF...
  • Page 14 Step 9 Fasten six EXTENSION RAILS (1) to the UPRIGHT (E and F). Use twelve FLAT HEAD ◆ SCREWS (17) through the exact holes shown. Page 14 SB-4GLF...
  • Page 15 Step 10 Insert three WOOD DOWELS (10) to the TOP (A). ◆ Fasten the BACK(H) to the TOP (A). Tighten four HIDDEN CAMS ◆ Page 15 SB-4GLF...
  • Page 16 Step 11 ◆ Fasten the UPRIGHTS (E and F) to the TOP (A). Tighten four HIDDEN CAMS. Page 16 SB-4GLF...
  • Page 17 Step 12 ◆ Fasten the BACK (H) to the UPRIGHT (E and F). Use two PAN HEAD SCREWS (20) Page 17 SB-4GLF...
  • Page 18 Step 13 Insert three WOOD DOWELS (10) to the UPPER BACK (H). ◆ Attached the LOWER BACK to the UPPER BACK (H). Page 18 SB-4GLF...
  • Page 19 Step 14 ◆ Fasten the UPPER BACK to the UPRIGHTS (E and F). Use two PAN HEAD SCREWS (20). Page 19 SB-4GLF...
  • Page 20 Step 15 ◆ Fasten the ENDS (C and D) to the TOP (A). Tighten four HIDDEN CAMS. Page 20 SB-4GLF...
  • Page 21 Insert seven WOOD DOWELS to the BACK (J), ◆ ENDS (C and D) and the UPRIGHTS (E and F) Fasten the BOTTOM (B) to the BACK (J), ENDS (C and D) and ◆ the UPRIGHTS (E and F). Use twelve PAN HEAD SCREWS (14). Page 21 SB-4GLF...
  • Page 22 Step 17 Fasten four METAL PLATE (7) to the FEET (O and Y) and the LONG BRACES (K). ◆ Use sixteen PAN HEAD SCREWS (18) SB-4GLF Page 22...
  • Page 23 Step 18 Fasten twelve BRACKETS (9) to the LONG BRACES (K) and ◆ the SHORT BRACES (L).Use twelve PAN HEAD SCREWS (18) Page 23 SB-4GLF...
  • Page 24 Step 19 ◆ Faten two SHORT BRACES (L) to the FEET (Y and O). Tighten eight HIDDEN CAMS. SB-4GLF Page 24...
  • Page 25 Step 20 Fasten the BASE to the BOTTOM (B). Use twelve PAN HEAD SCREWS (18) ◆ Push two GROMMETS (19) into the BACK (J). ◆ Page 25 SB-4GLF...
  • Page 26 To insert the Drawers into your unit, line up the EXTENSION SLIDES on the drawer with the EXTENSION RAILS on the unit and push the drawer into the unit until the drawer is fully inserted. The drawer will push in hard until it is all the way ◆ in, then it will slide in and out easier. SB-4GLF Page 26...
  • Page 27 Step 22 Insert eight METAL PINS (8) into the hole locations of your choice in the ENDS (C and D) and UPRIGHTS (E and F). ◆ Set the ADJUSTABLE SHELVES (G) onto the METAL PINS (8) ◆ Page 27 SB-4GLF...
  • Page 28 Step 23 Fasten the HINGE (13) to the DOORS (Q). Use eight FLAT HEAD SCREWS (17). ◆ Fasten the PULLS (6) to the DOORS (Q). Use four PAN HEAD SCREWS (16) ◆ SB-4GLF Page 28...
  • Page 29 Fasten the DOOR (Q) to the ENDS (C and D). Use sixteen FLAT ◆ HEAD SCREWS (17) through the round holes in each HINGE. Peel the BUMPERS from the BUMPER CARDS (12) and ◆ stick them onto the edges of the Shelves (G) Page 29 SB-4GLF...
  • Page 30 Step 25 ◆ Peel APPLIQUES from the APPLIQUE CARDS (5) and stick them onto each visible HIDDEN CAM. SB-4GLF Page 30...
  • Page 31 Step 26 Page 31 SB-4GLF...
