Tribeca 53.54 Buffet
Model # 244BMC12, 244BMC6, 244BMC62, 244BMC82, 244BMC9
30
lb
6
lb
11
lb
6
lb
11
lb
11
lb
11
lb
The indicated values consider static weights and evenly distributed over the parts.
Les valeurs indiquées tiennent compte des poids statiques et uniformément répartis sur les pièces.
Ed. 001, 2021/07 - Manhattan Comfort.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Manhattan Comfort Tribeca 53.54 Buffet
Summary of Contents for Manhattan Comfort Tribeca 53.54 Buffet

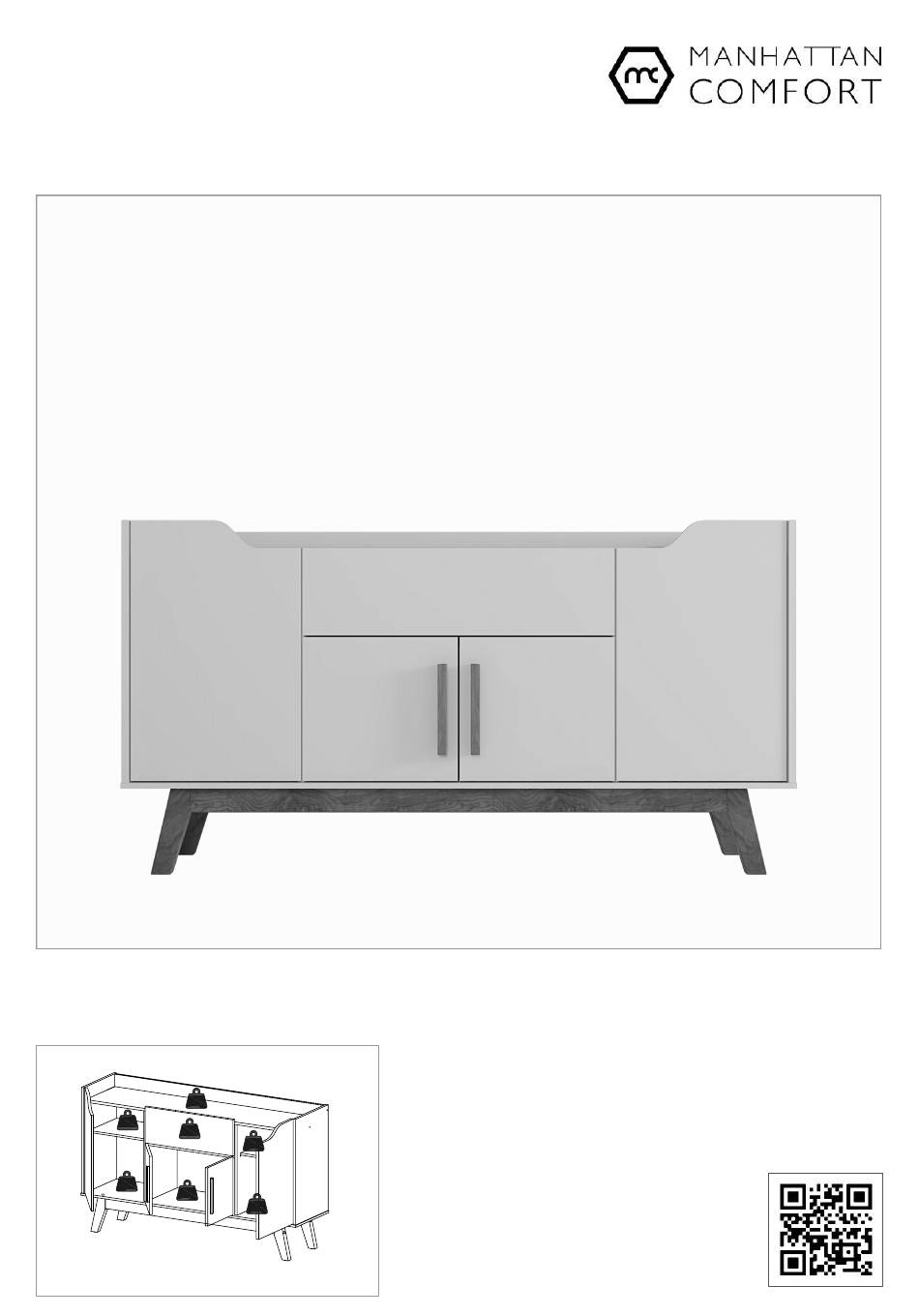

- Page 1 Tribeca 53.54 Buffet Model # 244BMC12, 244BMC6, 244BMC62, 244BMC82, 244BMC9 The indicated values consider static weights and evenly distributed over the parts. Les valeurs indiquées tiennent compte des poids statiques et uniformément répartis sur les pièces. Ed. 001, 2021/07 - Manhattan Comfort.
- Page 2 INCLUDED IN THE PACKAGE / INCLUS DANS LE PACKAGE REAR VIEW / VUE ARRIÈRE FRONT VIEW / VUE DE FACE FINAL APPEARANCE / APPARENCE FINALE n.° ID Parts Identification (Description) / Identification des pièces (Description) Quantity / Quantité Middle Crossbar / Traverse centrale Left Partition / Cloison gauche Right Partition / Cloison droite Top Panel / Panneau du haut...
- Page 3 TOOLS NEEDED / OUTILS NÉCESSAIRES Manual screwdriver. Simple hammer. Electric drill and screwdriver with drill bit Ø10mm and phillips tips. Tournevis manuel. Marteau simple. Perceuse et tournevis électrique avec foret Ø10mm et pointes phillips. IMPORTANT! It is recommended to fix the cabinet on the wall with the anti-tipping bracket, to prevent accidental falls and damage. IMPORTANT! Il est recommandé...
- Page 4 STEP 1 / ÉTAPE 1 Preparing the Feet (20) with the Structural Bars (21): • Fix the Feet (20) in the Structural Bars (21) with dowels (A) and bolts (L). • Fix the brackets (J) with bolts (K) in the Structural Bars (21). •...
- Page 5 STEP 5 / ÉTAPE 5 • Fit the Upper Rear Crossbar (07) between the Side Panels (05) and (06) and over the Top Panel (04), as shown in the drawing, and fix its ends in the Side Panels (05) and (06) with the bolts 5.0 x 50mm (B).
- Page 6 STEP 8 / ÉTAPE 8 DETAIL 2 Preparing the Doors (17), (18) e (19): DÉTAIL 2 • Fix the hinges (H) with bolts 4.0 x 14 (I) in the Doors (17), (18) and (19), as shown in the DETAIL 2. •...
- Page 7 STEP 10 / ÉTAPE 10 • Apply the plastic supports (G) in the Partitions (02) and (03) and in the Side Panels (05) and (06) and install the Removable Shelves (16) on them. Appliquez les supports plastiques (G) sur les Cloisons (02) et (03) et sur les Panneaux latéraux (05) et (06) et installez les Étagères amovibles (16) sur eux.
