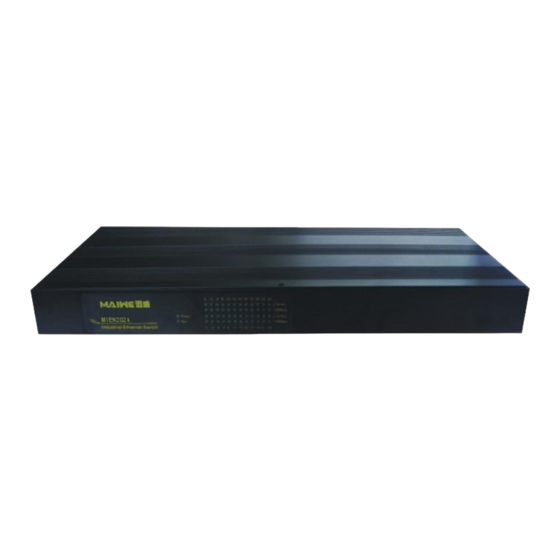

- Page 1 MIEN3024/3026 Rack Mount Industrial Ethernet Switch User Manual Edition: V3.0) Wuhan Maiwe Communication Co., Ltd.
- Page 2 Copyright Copyright © Wuhan Maiwe Communication Co., Ltd. Clarification The user manual is applicable to MIEN3024/3026 series rack-mounted industrial Ethernet switches. Please read the following license agreement carefully before using this manual. The products described in this manual can be used only if you agree on the following license agreement.
- Page 3 MIEN3024/3026 Rack Mount Industrial Ethernet Switch Revision history: Version Date Reason V1.0 2013.08 Document creation V1.1 2013.11 Modified housing size V2.0 2014.07 Product upgrade V3.0 2015.14 Product upgrade...
- Page 4 MIEN3024/3026 Rack Mount Industrial Ethernet Switch Safe Use Instruction This product performance is excellent and reliable in the designed range of use, but it’s necessary to avoid man-made damage or destroy for the equipment. Read the manual carefully and keep this manual for reference if need afterwards.
-
Page 5: Table Of Contents
MIEN3024/3026 Rack Mount Industrial Ethernet Switch Catalogue 1. Introduction..............- 1 - 1.1. Product instruction............... - 1 - 1.2. Product characteristic..............- 1 - 1.2.1. Industry Network features..............- 1 - 1.2.2. Industrial application design............. - 1 - 1.3. Packing list..................- 1 - 1.4. -
Page 6: Introduction
DC power input at the same time. In terms of structural installation, they use the rack mount to meet the industrial site. The MIEN3024 series of industrial Ethernet switches have a total of 24 100M ports, and the MIEN3026-2S/M industrial Ethernet switches have a total of 26 100M ports. -
Page 7: Product Parameters
MIEN3024/3026 Rack Mount Industrial Ethernet Switch Item MIEN3024/3026 industrial Ethernet switch 1pcs User manual 1pcs Certificate and warranty card 1pcs 1.4. Product parameters The rack-mount Ethernet switch can finish Ethernet information exchange. Users must refer to the following data for reasonable selection and use in order... -
Page 8: Product Application
All data ports and copper port have the EMC protection. 2.1.2. Product configuration The MIEN3024 rack-mount industrial Ethernet’s chassis is the 19-inch 1U structure. The whole machine use six-side fully enclosed structure. The left and right side panels of the chassis are made of single-ribbed aluminum material which it is one part of whole cooling system. - Page 9 The Power supply input terminal block This series of switches standard configuration uses 2 channels of AC220V redundant power supply, MIEN3024 and MIEN3024-4/8S/M, MIEN3026-2S/M wiring terminals use 7.62mm pitch terminals to connect 2 power inputs. - 4 -...
- Page 10 MIEN3024/3026 Rack Mount Industrial Ethernet Switch MIEN3024-12/16/24S/M terminal block uses 5.08mm pitch terminal to connect 2 power inputs. The power consumption of the whole series is less than 25W The Power supply input terminal block picture as below: This series rack mount industrial Ethernet switch power requirement is as...
-
Page 11: Hardware Installation
MIEN3024/3026 Rack Mount Industrial Ethernet Switch chart Alarm relay description Power on Power off Normally open closure disconnect Power on alarm relay Power failure alarm Normally closed Disconnect closure Dual power failure relay alarm 2.2. Hardware Installation 2.2.1. Installation requirements This series switch is single structure which can directly installed on 19 inch rack. -
Page 12: The Equipment Installation
Figure 2-6 MIEN3024 and MIEN3026-2S/M upper cover schematic diagram Figure 2-7 shows the schematic diagram of the rear panel of MIEN3024 (24 100M TX). Figure 2-7 Schematic diagram of the rear panel of MIEN3024 (24 100M TX) - 7 -... - Page 13 Figure 2-8 shows the schematic diagram of the rear panel of MIEN3024-4S/M (20 100M TX and 4 100M FX). Figure 2-8 MIEN3024-4S/M (20 100M TX and 4 100M FX) rear panel diagram Figure 2-9 shows the rear panel of MIEN3024-8S/M (16 100M TX and 8 100M FX).
-
Page 14: Cable Connection
MIEN3024/3026 Rack Mount Industrial Ethernet Switch Figure 2-13 MIEN3024-16S/M (8 100M TX and 16 100M FX ) rear panel diagram Figure 2-14 shows the schematic diagram of the rear panel of MIEN3024-24S/M (24 100M FX). Figure 2-14 MIEN3026-24S/M (24 100M FX) rear panel schematic diagram For most industrial applications, 19-inch rack installation is very convenient. -
Page 15: Cable Layout
MIEN3024/3026 Rack Mount Industrial Ethernet Switch For modules with a transmission distance longer than 60km, do not use short optical fibers (below 20km) to connect, so as not to cause the optical saturation and overpower at the receiving end of the module to burn out. -
Page 16: Testing Guide
MIEN3024/3026 Rack Mount Industrial Ethernet Switch When laying pigtails, prevent the optical cable from knotting and minimize the turning points, and the turning radius should not be too small. The lashing should be moderately tight,It should not be too tight. When laying on the cable rack, it should be placed separately from other cables. - Page 17 MIEN3024/3026 Rack Mount Industrial Ethernet Switch PING command examples: The IP address of computer 1 is 192.168.0.10, and the IP address of computer 2 is 192.168.0.11. Make sure that the first item "Allow incoming echo requests" in the ICMP settings of the local connection of the firewall of the two machines is checked.The operation method is to open the windows protection...
-
Page 18: Fiber Port Testing
MIEN3024/3026 Rack Mount Industrial Ethernet Switch 2.3.3. Fiber port testing Combine the two devices into a fiber optic chain network as shown in Figure 2-18. Any fiber port of each device is connected to the test computer through a direct-connected network cable and sends PING commands to each other. -
Page 19: Maintain And Service
3. Maintain and Service The switch has 5 years’ guarantee according to the product specifications of Maiwe. We will maintain or replace the product for free if has any problem during the guarantee.However, the above commitment does not cover damage caused by improper use, accidents, natural disasters, incorrect operation or incorrect installation. -
Page 20: Appendix
MIEN3024/3026 Rack Mount Industrial Ethernet Switch 4. Appendix Selection guide: 100M fiber port single-mode/multi-mode optional, connector SC/ST/FC optional 100M 10/100M Model Base-FX Base-TX MIEN3024 MIEN3026-2S/M MIEN3024-4S/M MIEN3024-8S/M MIEN3024-12S/M MIEN3024-16S/M MIEN3024-24S/M Our company has the right to change the product model without notifying the user. - Page 21 WUHAN MAIWE COMMUNICATION CO.,LTD Add.:Building 2, Area E, Phase ii, Optical valley core center, No.52, Liufang road, East Lake Hi-tech Development Zone,Wuhan,China Phone: 027-87170215/16 Fax: +86-027-87170217 www.maiwe.com...
