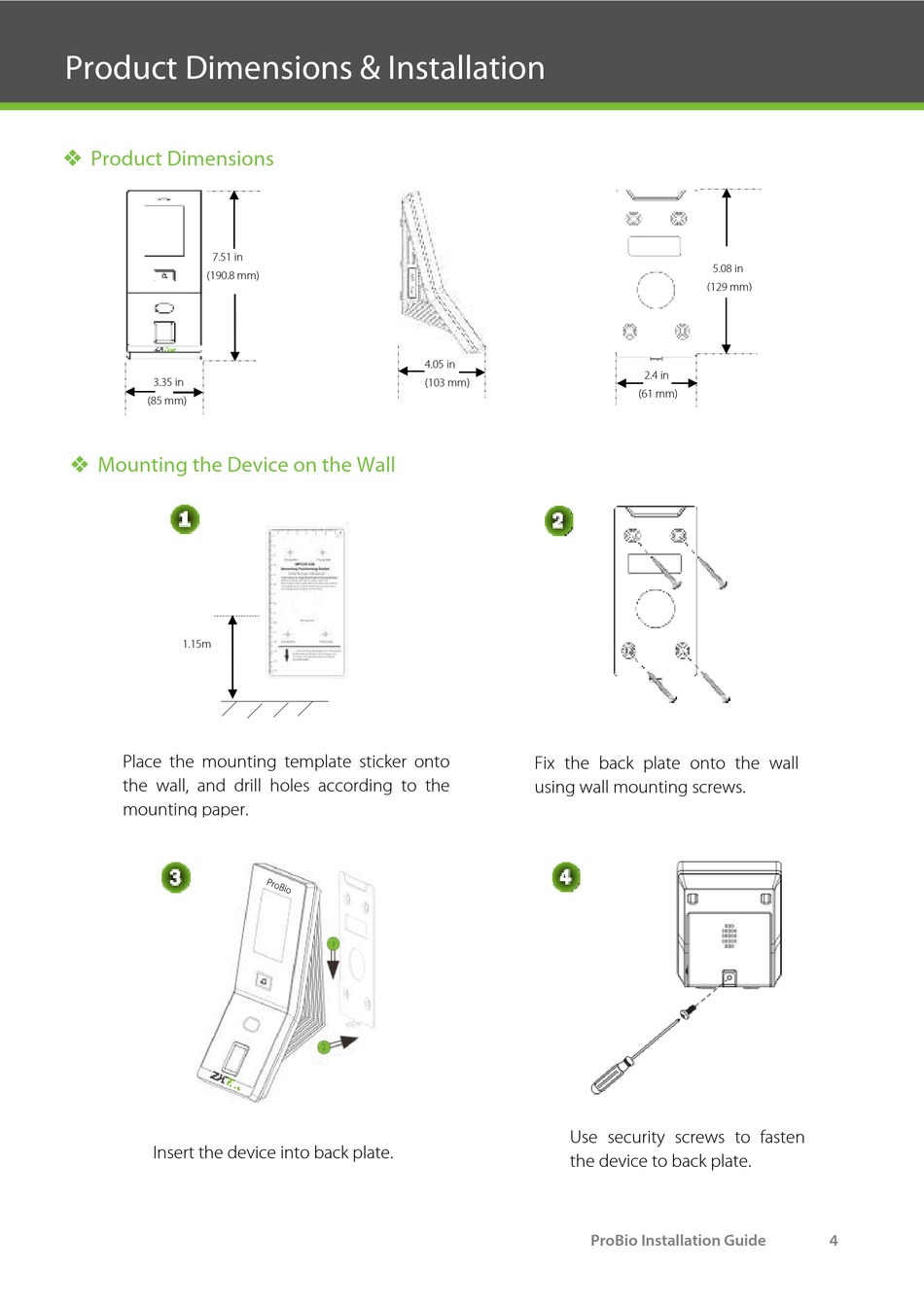

Product Dimensions & Installation
 Product Dimensions
7.51 in
(190.8 mm)
3.35 in
(85 mm)
 Mounting the Device on the Wall
1.15m
Place the mounting template sticker onto
the wall, and drill holes according to the
mounting paper.
Insert the device into back plate.
4.05 in
(103 mm)
Fix the back plate onto the wall
using wall mounting screws.
Use security screws to fasten
the device to back plate.
ProBio Installation Guide
5.08 in
(129 mm)
2.4 in
(61 mm)
