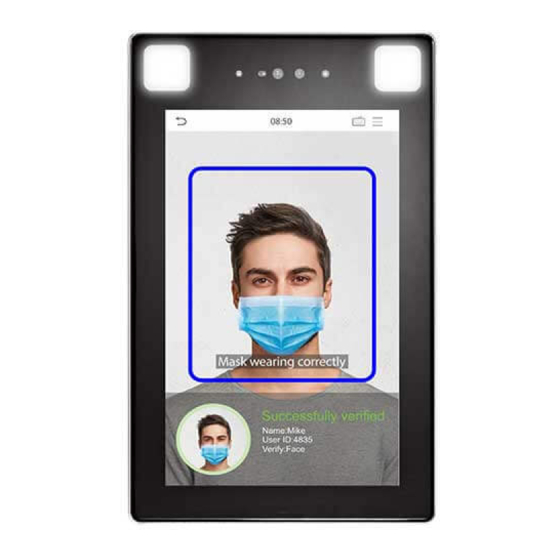

ZKTeco ProFace X SL Quick Start Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Quick Start Guide
ProFace X (SL)
Version: 1.0
Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the
actual product and the written information in this manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProFace X SL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZKTeco ProFace X SL

Summary of Contents for ZKTeco ProFace X SL

  • Page 1 Quick Start Guide ProFace X (SL) Version: 1.0 Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the actual product and the written information in this manual.
  • Page 2 1Overview Proximity Sensor Infrared Camera Flash RGB Camera Near-infrared Flash Dot Projector 8-inch Touchscreen Tamper Switch Speaker Reset Button +12V Power RS232 RXD1 Power Auxiliary TXD1 interface input 485B RS485 485A Sensor Exit button Wiegand Lock INWD1 Wiegand INWD0 Alarm Networkinterface...

  • Page 3: Installation Environment

    2 Installation Environment Please refer to the following recommendations for installation. 10ft KEEP DISTANCE AVOID GLASS AVOID DIRECT KEEP EFFECTIVE REFRACTION SUNLIGHT DISTANCE AND EXPOSURE 0.3-2.5m 3 Device Installation Install on the wall ①Attach the mounting template sticker to the wall, and drill holes according to the mounting paper. ②Fix the backplate on the wall using wall mounting screws.
  • Page 4 3 Device Installation Install on the barrier gate Please thread the wire through the bracket before installation. ①Drill a hole on the barrier gate, insert the bracket into the hole and fix it with a nut. ②Adjust the angle of the device. ①...

  • Page 5: Standalone Installation

    4 Standalone Installation Smoke Alarm Detector Door Sensor Exit Button Reader Lock TCP/IP 5 Door Sensor, Exit Button & Alarm Connection Detector Power SmokeDetector Door Sensor ExitButton Alarm Alarm Power...

  • Page 6: Lock Relay Connection

    6 Lock Relay Connection The system supports Normally Opened Lock and Normally Closed Lock. The NO LOCK (normally unlocked when power-on) is connected with 'NO' and 'COM' terminals, and the NC LOCK (normally locked when power-on) is connected with 'NC' and 'COM' terminals. Take NC Lock as an example below: 1)Device not sharing power with the lock 2)Device sharing power with the lock...
  • Page 7 8 Barrier Connection RXD1 TXD1 485B 485A Barrier gate 9 RS485 Connection +12V RXD1 TXD1 485- 485B 485+ 485A 485 reader Note: 485A and 485B can be connected to the Barrier gate or the 485 Reader, separately, but cannot be connected to the gate and reader at the same time.

  • Page 8: Power Connection

    10 Power Connection 12V3ADC Recommended power supply: 12V - 3A To share the power with other devices, use a power supply with higher current ratings. 11 Ethernet Connection Connect the device and computer software over an Ethernet cable. An example is shown below: ZKBioSecurity Default IP address : 192.168.1.201...

  • Page 9: User Registration

    12 UserRegistration When there is no super administrator set in the device, click on to enter the menu. After setting the super administrator, the system will request for the administrator’s verification before entering the menu. For the security purpose, it is recommended to register a super administrator at the first time you use the device.
  • Page 10 Method2: Register on ZKBioSecurity software Please set the IP address and cloud service server address in the Comm. Menu option on the device. Click [Access] > [Access Device] > [Device] > [Search Device] to search the device on the software. When an appropriate server address and port is set on the device, the searched devices are displayed automatically.
  • Page 11 Method 3: Register on the phone Click [Personnel] > [Parameters], input ‘’http://Server address: Port’’ in the QR Code UGL bar. The software will automatically generate a QR code. Scan the QR code or login onto ‘’http://Server address: Port/app/v1/adreg’’ by the mobile phone to register users. Personnel Registration Personnel Registration Personnel ID Setting...

  • Page 12: Access Control Settings

    13 Access Control Settings Clickon > [Access Control]to enter the access control management interface and set relevant parameters of access control. Access Control Options Main Menu Access Control Gate Control Mode Access Control Options Door Lock Delay (s) User Mgt. System User Role Time Rule setting...
  • Page 13 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright 2021 ZKTECO CO., LTD. All Rights Reserved.
