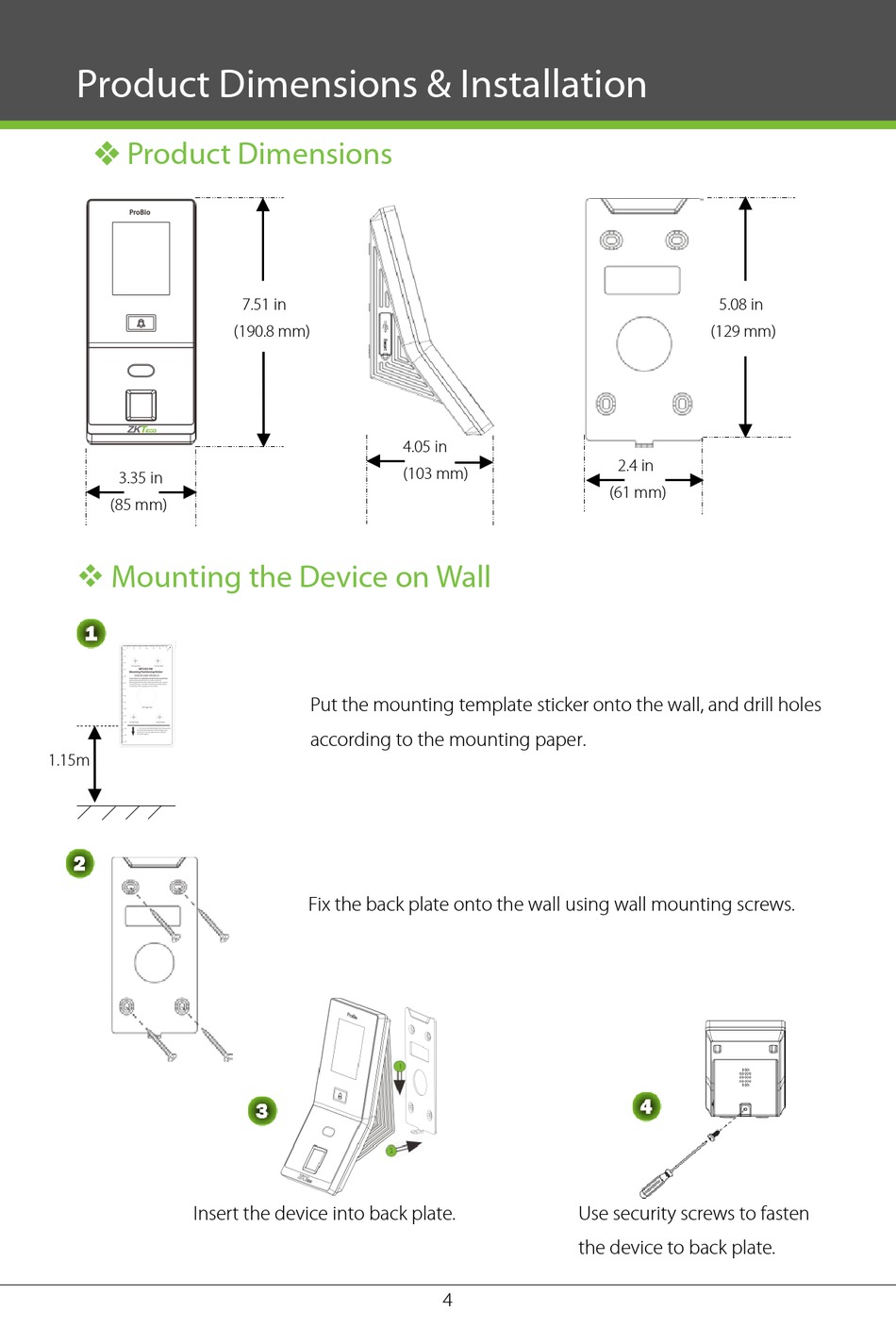

Product Dimensions & Installation
 Product Dimensions
3.35 in
(85 mm)
 Mounting the Device on Wall
1.15m
Power Conne
Insert the device into back plate.
7.51 in
(190.8 mm)
Put the mounting template sticker onto the wall, and drill holes
according to the mounting paper.
Fix the back plate onto the wall using wall mounting screws.
4.05 in
(103 mm)
4
5.08 in
(129 mm)
2.4 in
(61 mm)
Use security screws to fasten
the device to back plate.
