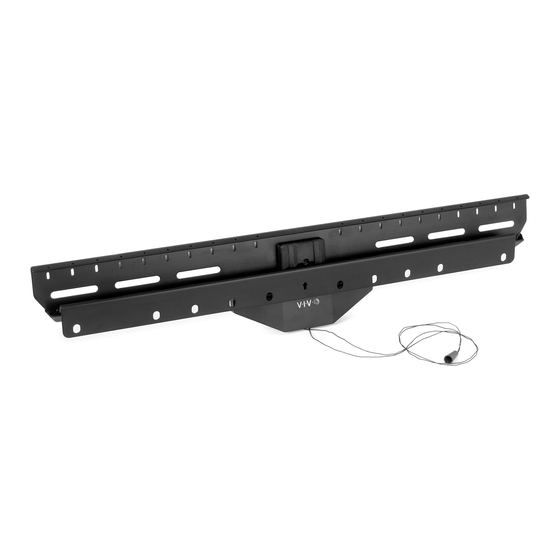

TV Wall Mount
Instruction Manual
SKU: MOUNT-NS80A
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-ns80a
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo MOUNT-NS80A
Summary of Contents for Vivo MOUNT-NS80A
- Page 1 TV Wall Mount Instruction Manual SKU: MOUNT-NS80A Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-ns80a GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 OPTION A: Drywall Installation Position wall plate (A) at desired location on wall. While making sure plate stays level, install x20 nails (W-D) at 45 degree angle through top of plate and drywall using a hammer. Please note, drywall must be greater than 0.4”... - Page 4 STEP 1 (Continued) OPTION C: Concrete/Brick Installation Position wall plate (A) at desired location on wall and mark drilling locations with a pencil. Drill 2.4” (60mm) deep holes using a 3/8” (10mm) drill bit and press concrete anchors (W-B) into holes. Mount plate to wall using screws (W-A) and washers (W-C).
- Page 5 STEP 2 OPTION A: Flat Back Screens Install VESA plate (B) to upper VESA mounting holes on TV using one of the screw/spacer combinations shown below. Make sure the arrow on the VESA plate is facing towards the top of the TV. Install thick bumpers (C) to lower VESA mounting holes on TV using the same screw/spacer combination as the VESA plate.
- Page 6 STEP 2 (Continued) OPTION B: Curved Back Screens Install VESA plate (B) to upper VESA mounting holes on TV using one of the screw/spacer combinations shown below. Make sure the arrow on the VESA plate is facing towards the top of the TV. Install thin bumpers (D) to lower VESA mounting holes on TV using the same screw/spacer combination as the VESA plate.
- Page 7 STEP 3 Hang TV with VESA plate over the raised lip on the TV plate. STEP 4 Pull down on cord to lock or release TV from wall plate.
