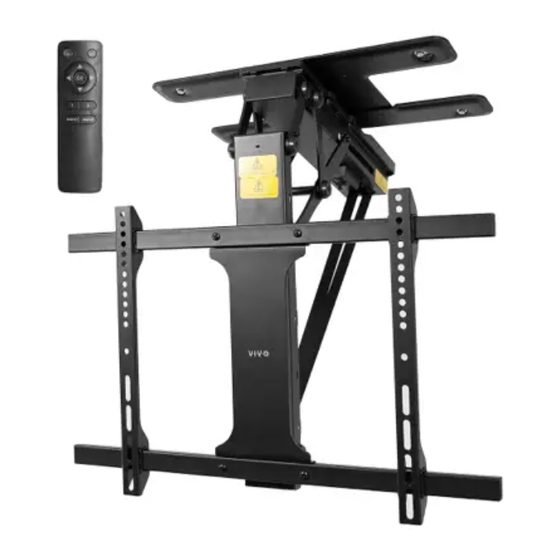

Black Electric Flip Down / Swivel Ceiling TV Mount
SKU: MOUNT-E-FD70S/W
Instruction Manual
ASSEMBLY VIDEO AVAILABLE:
Follow along step-by-step with our video walk through by scanning
the QR code with your mobile device or by following the product
link: vivo-us.com/products/mount-e-fd70s
help@vivo-us.com
www.vivo-us.com
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo MOUNT-E-FD70S/W
Summary of Contents for Vivo MOUNT-E-FD70S/W
- Page 1 Black Electric Flip Down / Swivel Ceiling TV Mount SKU: MOUNT-E-FD70S/W Instruction Manual ASSEMBLY VIDEO AVAILABLE: Follow along step-by-step with our video walk through by scanning the QR code with your mobile device or by following the product link: vivo-us.com/products/mount-e-fd70s www.vivo-us.com...
- Page 2 7AM - 7PM Monday-Friday Give us a Call: Chat Us: Email Us: 309-278-5303 www.vivo-us.com help@vivo-us.com We’re Here for You! Our customer-minded support team is here for YOU, Monday-Friday 7am-7pm CST. We offer immediate assistance with rapid response times from customer service agents and product techncians to...
-
Page 3: Weight Capacity
DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us.com, email at help@vivo-us.com, or call us at 309-278-5303. PITCH CEILING WARNING: DO NOT attempt to install on a pitched ceiling. -
Page 4: Tools Needed
TOOLS NEEDED: DIFFICULTY LEVEL Phillips Screwdriver Drill Pencil Wrench Stud Finder PACKAGE CONTENTS Please consult the parts list below and ensure you have everything you need to assemble your product. If parts are missing or damaged, please contact us. A (x1) B (x1) C (x1) D (x2) -
Page 5: Assembly Steps
ASSEMBLY STEPS STEP 1: Installing the Mounting Brackets For wooden joist mounting, determine what direction the joists run and the direction you want the display mounted. Using the layout images, assemble Mounting Brackets (D) to Mount (A) using M6x10mm Screws (S-F) and 4mm Allen Wrench (T-B). For concrete ceilings, Mounting Brackets (D) can be assembled in either orientation. - Page 6 STEP 2: Mounting VESA Assembly OPTION A: Wood Beam Ceiling Using Ceiling Template (C), mark exact location of mounting holes. Drill pilot holes 2.2” (55mm) deep using a 3/16” (4.5mm) drill bit. Insert two ST6.3x55mm Screws (W-A) inline with the keyhole slots on the mount, leaving a 5mm gap from ceiling.
- Page 7 STEP 3: Assembling VESA Components Assemble Bracket Rails (F) to Center Plate (B) using M6x25mm Screws (S-B), M6 Washers (S-C) and M6 Nuts (S-D). While holding M6 Nuts (S-D) with a wrench, use a Phillips screwdriver to tighten M6x25mm Screws (S-B). Slide VESA Brackets (E) onto Bracket Rails (F) and secure using M4x8mm Screws (S-E) and 3mm Allen Wrench (T-A).
- Page 8 STEP 6: Mounting VESA Assembly Attach VESA assembly to TV using appropriate mounting Screws (M-A through M-D), M8 Washers (M-E), and Spacers (M-F, M-G). M-A (x4) M-B (x4) M-C (x4) M-D (x4) M-E (x4) M-F (x4) M-G (x4) M6x14mm Screw M8x16mm Screw M6x30mm Screw M8x35mm Screw...
-
Page 9: Step 8: Manage Cables
STEP 8: Manage Cables Remove the adhesive backing from Cable Clips (J) and place them on the side of Mount (A). Route Cables through Cable Clips (J) and use Cable Ties (I) to fasten cables to the side of the arm. J (x2) I (x4) Cable Clip... - Page 10 WHO WE ARE VIVO is more than a brand of ergonomic office furniture. We are a team of creative and innovative indivuduals working together to offer high quality, affordable ergonomic solutions. We think and work outside of the box to serve...
-
Page 11: Need Assistance
Call Us: 309-278-5303 Average Resolution Time: 5m 4s Chat Us: www.vivo-us.com Average Resolution Time: < 15m Email Us: help@vivo-us.com Average Resolution Time: 1HR 8M 23% within < 15m 38% within <... - Page 12 LOVE YOUR NEW VIVO SETUP? Ready to share that new amazing setup? Want to brag about that amazing new ergonomic solution? Tag us in your photo! VIVO-us @vivo_us FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM LAST UPDATED: 05/30/2023 REV1.1LF...
