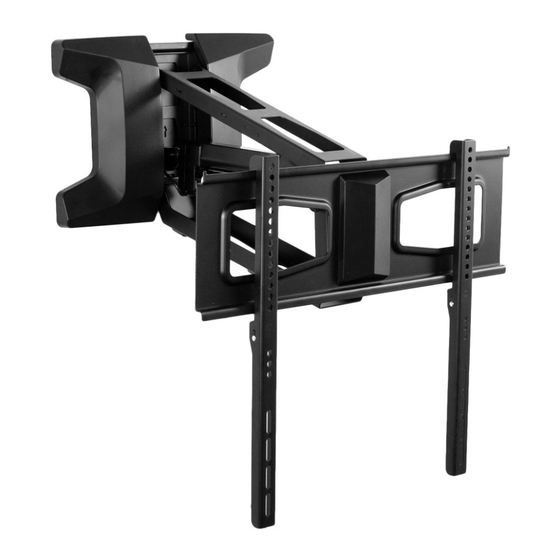

White Electric TV Wall Mount
Instruction Manual
SKU: MOUNT-E-MM070W
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-e-mm070
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo MOUNT-E-MM070W
Summary of Contents for Vivo MOUNT-E-MM070W
- Page 1 White Electric TV Wall Mount Instruction Manual SKU: MOUNT-E-MM070W Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-e-mm070 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303.
- Page 3 TOOLS NEEDED Drill 3/8” Drill Pencil Hammer Ruler Stud Finder Phillips 3/16” Drill 10mm Socket ASSEMBLY STEPS STEP 1 STEP 2 Measure the required mounting height using the Remove pre-installed Nuts (A1), Metal Washers chart below. Ensure the front edge of the mantel (A2) and Plastic Washers (A3) from Mount (A) does not exceed 110°F (43°C).
- Page 4 STEP 3 (Option B) Concrete/Brick Installation Align the bottom edge of Stencil (C) with the measured height from step 1 and mark drilling locations using a pencil. Use of a level is recommended. Remove Stencil (C), drill 2.4” (60mm) deep holes using a 3/8”...
- Page 5 STEP 5 Plug Power Cord (H) into a wall outlet. Press and hold the down button on Remote (G) until the arm is fully lowered. Remove and discard the plastic wedge (A4). WARNING! The arm is not able to fully raise and may cause damage to the mount if the wedge is not removed STEP 6 Remove the nut from each VESA Bracket (E) and flip open the clip.
- Page 6 STEP 7 Attach VESA Brackets (E) to the back of the TV using combination of Screws (M-A - M-E), Washers (M-F) and Spacers (M-G, M-H) appropriate for your TV. The bottom edge of the VESA brackets should be greater than 7-7/8” (200mm) above the bottom edge of the STEP 8 Place previously removed Plastic Washers (A3) on Mount (A).
- Page 7 STEP 10 Manage cables using the cable clips on the arm. Use Remote (G) to raise and lower Mount (A). The TV may be manually swiveled to the left and right. CAUTION: To avoid injury, do not place hand in the arm while operating.
- Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
