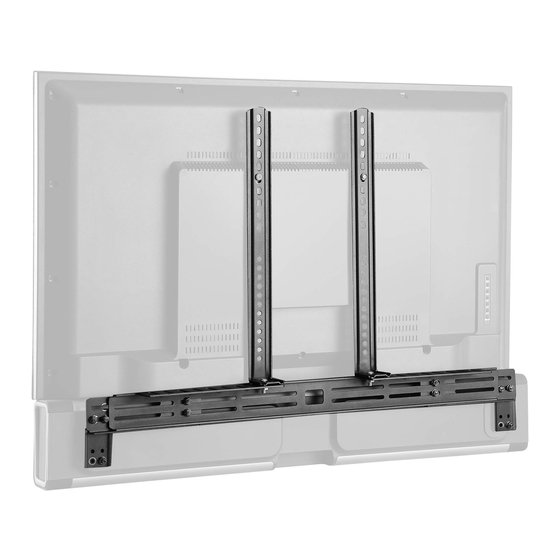

Universal Soundbar Speaker TV Mount
Instruction Manual
SKU: MOUNT-SPSB3
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-spsb3
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo MOUNT-SPSB3
Summary of Contents for Vivo MOUNT-SPSB3
- Page 1 Universal Soundbar Speaker TV Mount Instruction Manual SKU: MOUNT-SPSB3 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-spsb3 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 ASSEMBLY STEPS STEP 1 Measure the distance between mounting holes on your soundbar. STEP 2 If the soundbar mounting hole distance is greater than the width of the crossbar (A), attach left and right extensions (D, E) to ends of crossbar using M6 nuts (F). Attach mounting brackets (H) to extensions at correct spacing to match soundbar using M6 nuts.
- Page 4 STEP 3 Attach VESA brackets (B) to crossbar at correct spacing to match TV mounting holes using M8 nuts (G) and M8x18 bolts (I) and tighten with the wrench (J) and Allen wrench (K). 42m m...
- Page 5 STEP 4 Mount soundbar to assembled bracket using screws (M-A, M-B, M-C) as shown. M- A M- B M- C If your soundbar uses slots for mounting, loosely install M6x12 screws (M-E) to assembled bracket with M6 nuts (M-F). Insert screw heads fully into slots of soundbar, and tighten nuts with the wrench.
- Page 6 STEP 5 OPTION A: Free Standing TV For free standing TV, mount soundbar above TV using bolts (M-C, M-D) in top two VESA mounting holes on back of TV. OPTION B: Wall Mounted TV For wall mounting, set the TV face down on a flat surface. Place soundbar with bracket over/under TV with mounting holes in bracket aligned with holes in TV.
- Page 7 STEP 5 (Continued) Attach TV with soundbar and VESA brackets to your wall mount.
