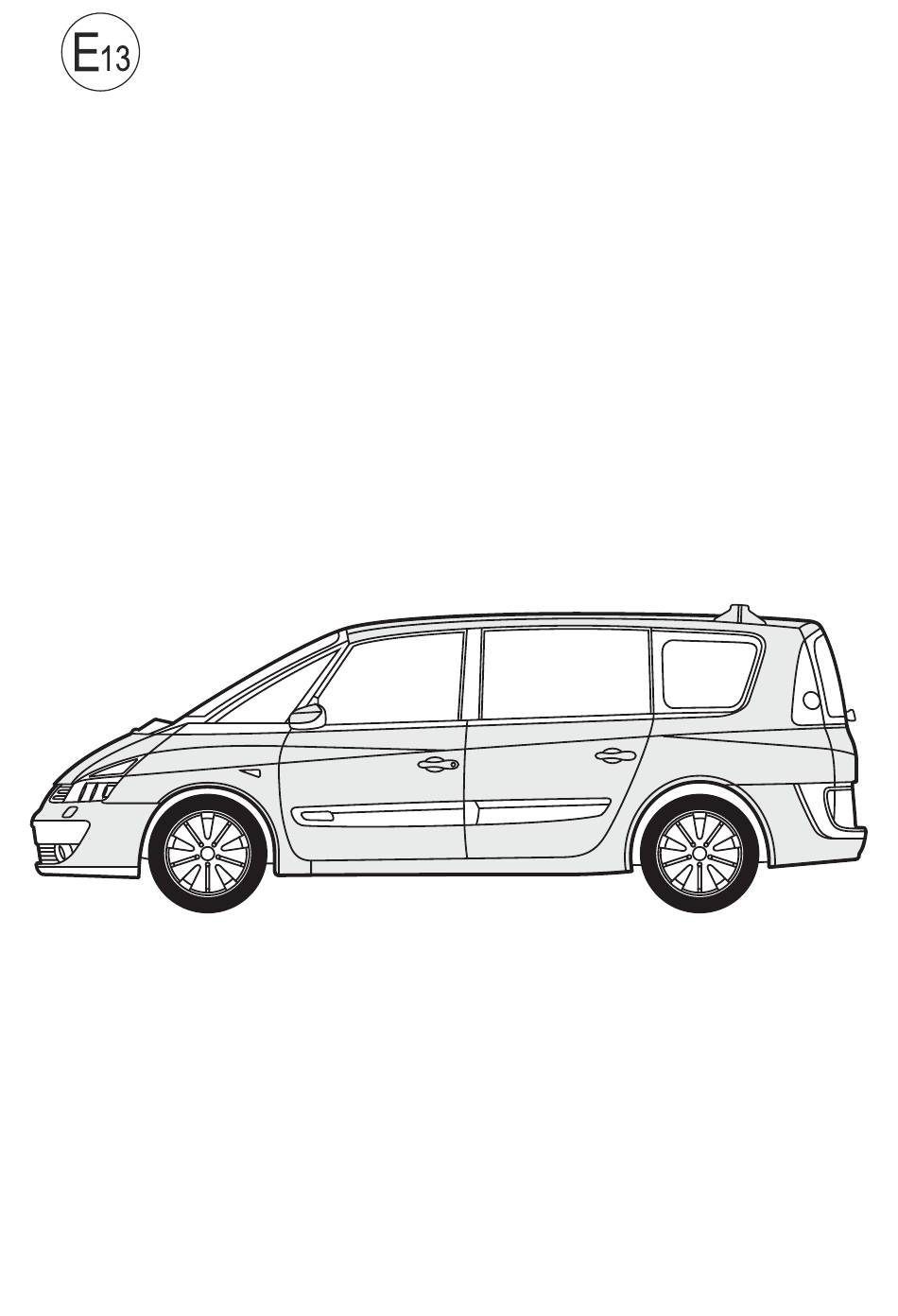

- Page 1 00-1440 Renault Espace IV 2002-12» 652-1230...
- Page 2 rev. 2014-05-06 R.G...
- Page 3 Congratulations on purchasing an ATS towbar Alexo Towbars Sweden offer quality towbars produced as a result of direct market research. Every towbar is sold with a unique 5-year guarantee which covers the functioning of the towbar system. Detachable towbars are to be removed when not used for towing, a common result of not removing the towbar during longer periods of time is oxidation of the inner mechanical parts, which causes the towbar to “stick”...
- Page 4 652-1230 Included Material Inkluderat material 2x M10 1x 10 x 70 (8.8) 1x 10 x 75 (8.8) M10 x 120 (8.8) M12 x 40 (8.8) 10 mm 12 mm 12 mm 50 x 50 75 x 16 mm...
- Page 5 Towbar installation pictogram Dragkrok installation piktogram...
-
Page 6: Fitting Instructions
652-1230 Fitting instructions For this specific towbar the fitting instructions are solely represented using pictograms in order to fa- cilitate the installation process. Before beginning the installation, please review the pictograms several times and check that all material required as well as tools required are available. If the towbar requires cutting of the bumper, make sure you do not trim more then necessary. - Page 7 1.Remove the spare wheel. 2.Remove the plastic plugs situated at the chassis 3.Dismantle the plastic protection situated behind the bumper to both sides. 4.Intorduce A and B pieces to both chassi sides and fix at point 1 using M10X120bolts. 16mm bushings, flat washers and M10 nuts.(Introduce M16 nuts as the drawing.) 5.Fix at points 2 using M12x40 bolts, flat washers and M12 nuts.
- Page 8 652-1230 Removal of type 1 towball Demontering av typ 1 drag Fitting of type 1 towball Montering av typ 1 drag...
- Page 9 Removal of type 2 towball Demontering av typ 2 drag Fitting of type 2 towball Montering av typ 2 drag...
- Page 10 652-1230 652-1230 Maintenance of detachable towballs Underhåll av demonterbara dragkrokar...
- Page 11 © Copyright Alexo ATS This catalogue and all information within it belongs to Alexo ATS, any use of the material other than as an instruction manual is strictly forbidden and will be reported. All kinds of reproduction and /or usage of material from this catalogue is not permitted. ©...
- Page 12 T= 2000 kg D= 10,28 kN S= 80 kg...
