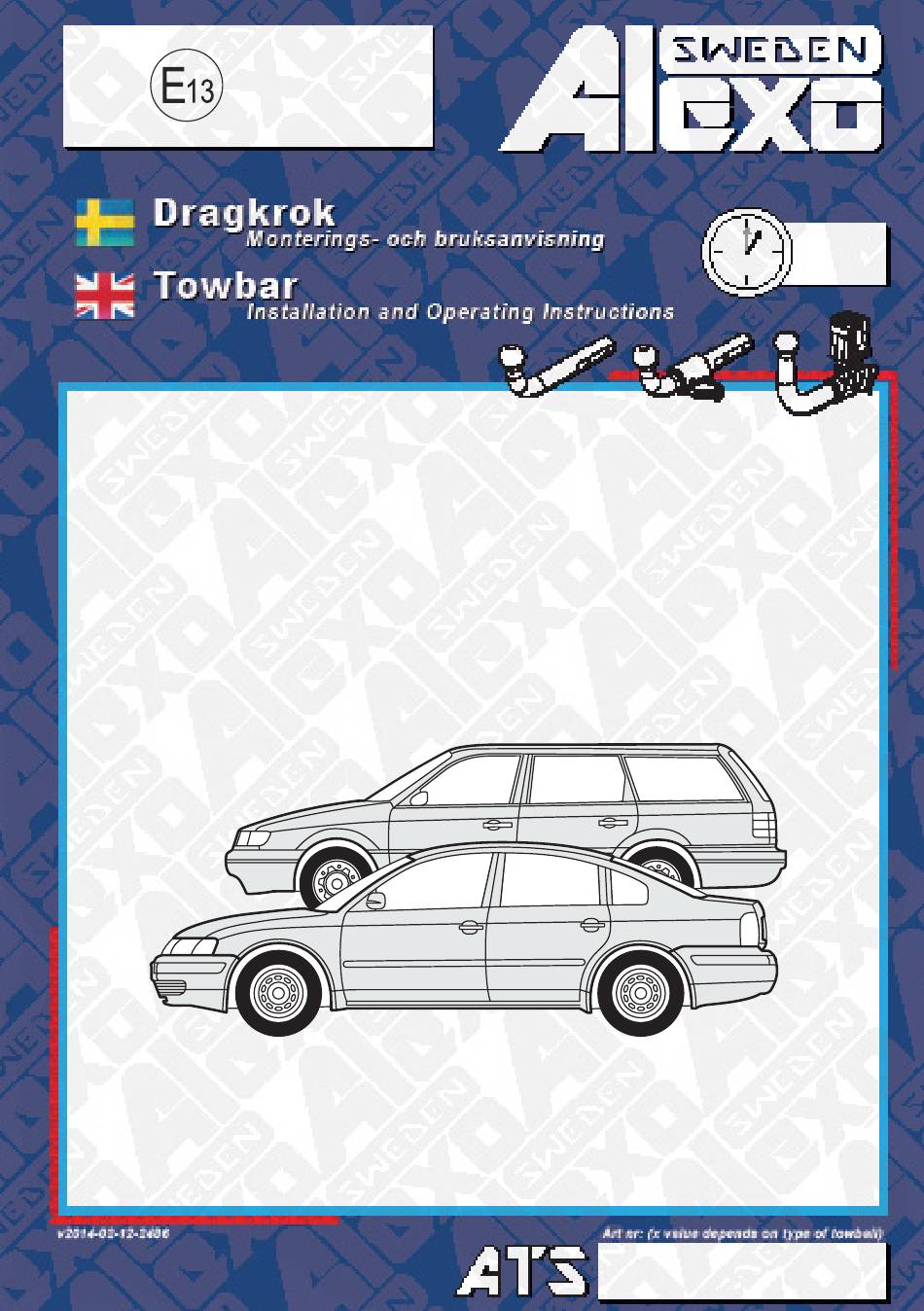

- Page 1 00-1132 120’ Volkswagen Passat Passat Kombi (1997»2000) 667-0220...
- Page 2 rev. 2014-04-04 DC...
- Page 3 Congratulations on purchasing an ATS towbar Alexo Towbars Sweden offer quality towbars produced as a result of direct market research. Every towbar is sold with a unique 5-year guarantee which covers the functioning of the towbar system. Detachable towbars are to be removed when not used for towing, a common result of not removing the towbar during longer periods of time is oxidation of the inner mechanical parts, which causes the towbar to “stick”...
- Page 4 667-0220 Included Material Inkluderat material Elementos de unión de la bola Fixing items of the coupling head 2x M10 Delar för dragkrokens fäste Elementid i unione della sfera Befestigungselemented er Kugel 1x 10 x 70 (8.8) 1x 10 x 75 (8.8)

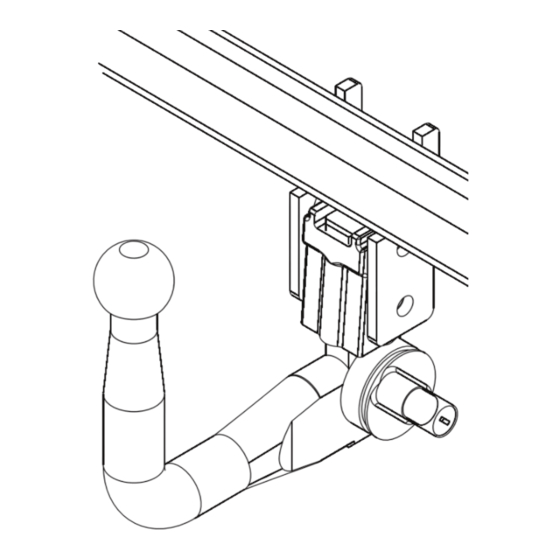

- Page 5 Towbar installation diagram Dragkrok installationsdiagram...
-
Page 6: Fitting Instructions
667-0220 Fitting instructions 1. Dismount the bumper and the aluminum reinforcement material from behind the bumper. (Keep the M8 bolts that hold the reinforcement material, they will be needed later). 2. Introduce towbar the holes of the chassis until holes “1” match. - Page 8 667-0220 Removal of type 1 towball Demontering av typ 1 drag Fitting of type 1 towball Montering av typ 1 drag...
- Page 9 Removal of type 2 towball Demontering av typ 2 drag Fitting of type 2 towball Montering av typ 2 drag...
- Page 10 667-0220 Maintenance of detachable towballs Underhåll av demonterbara dragkrokar...
- Page 11 © Copyright Alexo ATS This catalogue and all information within it belongs to Alexo ATS, any use of the material other than as an instruction manual is strictly forbidden and will be reported. All kinds of reproduction and /or usage of material from this catalogue is not permitted. ©...
- Page 12 T= 1800 kg D= 9,34 kN S= 75 kg...
