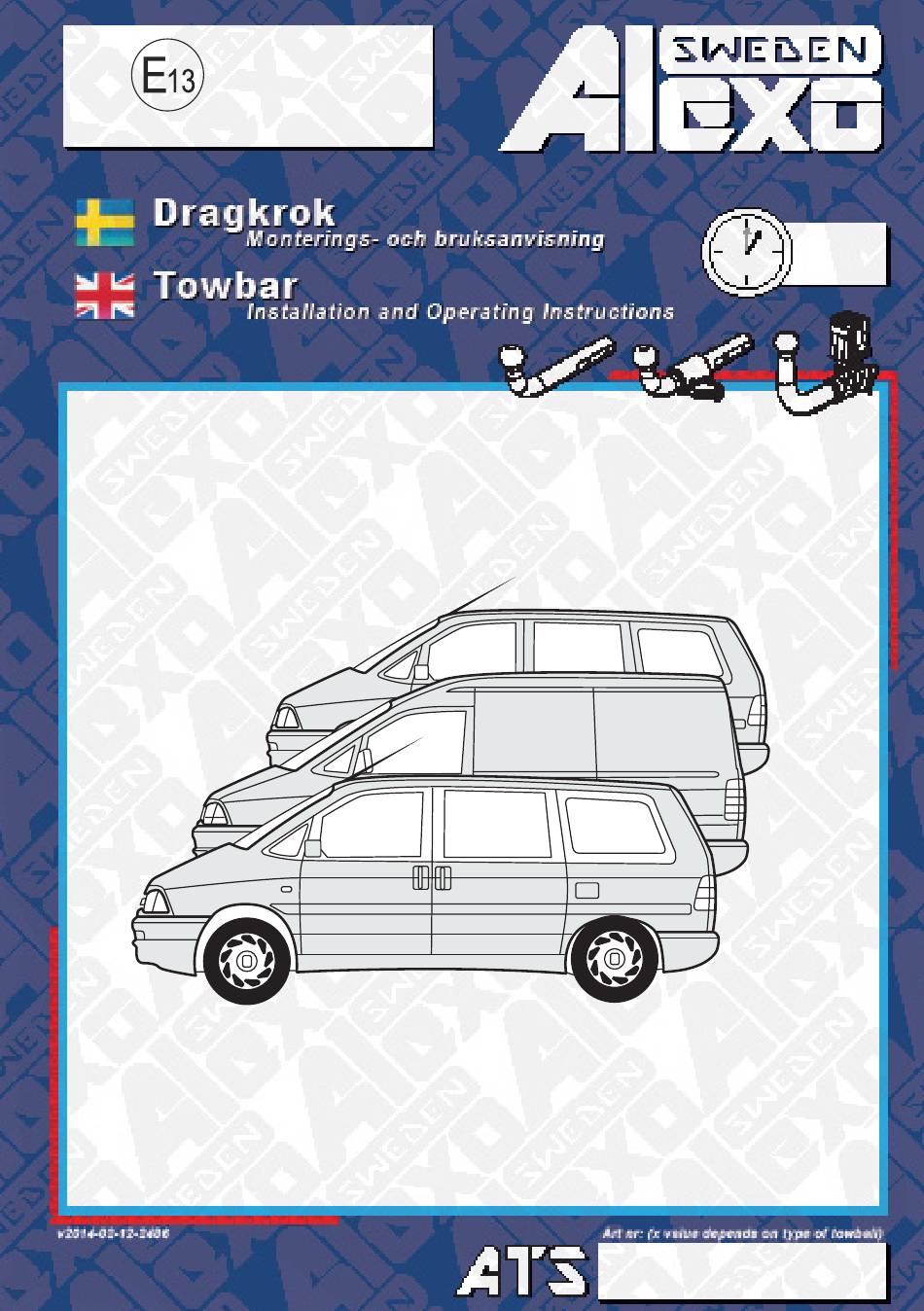

- Page 1 00-0356 120’ CITROEN Jumpy / Evasion PEUGEOT 806 / Expert FIATU lysse / Scudo LANCIA Zeta 612-0900...
- Page 2 rev. 2014-04-04 DC...
- Page 3 Congratulations on purchasing an ATS towbar Alexo Towbars Sweden offer quality towbars produced as a result of direct market research. Every towbar is sold with a unique 5-year guarantee which covers the functioning of the towbar system. Detachable towbars are to be removed when not used for towing, a common result of not removing the towbar during longer periods of time is oxidation of the inner mechanical parts, which causes the towbar to “stick”...
- Page 4 612-0900 Included Material Inkluderat material Fixing itemso ft he coupling head 2x M10 Delar för dragkrokens fäste 1x 10 x 65 (8.8) 1x 10 x 70 (8.8) Provided items Medföljande delar M12 x 30 (933 8.8) M10 x 35 (933 8.8) M10 = L50 1 x Låsbricka...
- Page 5 Towbar installation diagram Dragkrok installationsdiagram 1 , 2 , 3 , 6 , 7 y 8 : 1 s k r u v M - 1 0 x 3 5 / 1 m u t t e r M - 1 0 1 j ä...
-
Page 6: Fitting Instructions
612-0900 Fitting instructions 1. Place the towbar under the vehicle and mount points no 2,3,6,7 and 8 using the special nuts. (in order to mount these nuts, place them on the rectangular hole fitting the nut side pieces on the edge, matching the same time the thread with the round hole) 2. - Page 7 CITROEN Jumpy / Evasion PEUGEOT 806 / Expert FI AT Ulysse / Scudo LANCIA Zeta Make a reces son the marked area. Gör en utskärning a den markerade ytan Stötfångarens mitt Stötfångarens kant. Bumper edge.
- Page 8 612-0900 Removal of type 1 towball Demontering av typ 1 drag Fitting of type 1 towball Montering av typ 1 drag...
- Page 9 Removal of type 2 towball Demontering av typ 2 drag Fitting of type 2 towball Montering av typ 2 drag...
- Page 10 612-0900 Maintenance of detachable towballs Underhåll av demonterbara dragkrokar...
- Page 11 © Copyright Alexo ATS This catalogue and all information within it belongs to Alexo ATS, any use of the material other than as an instruction manual is strictly forbidden and will be reported. All kinds of reproduction and /or usage of material from this catalogue is not permitted. ©...
- Page 12 T= 1300 kg D= 8,33 kN S= 80 kg...
