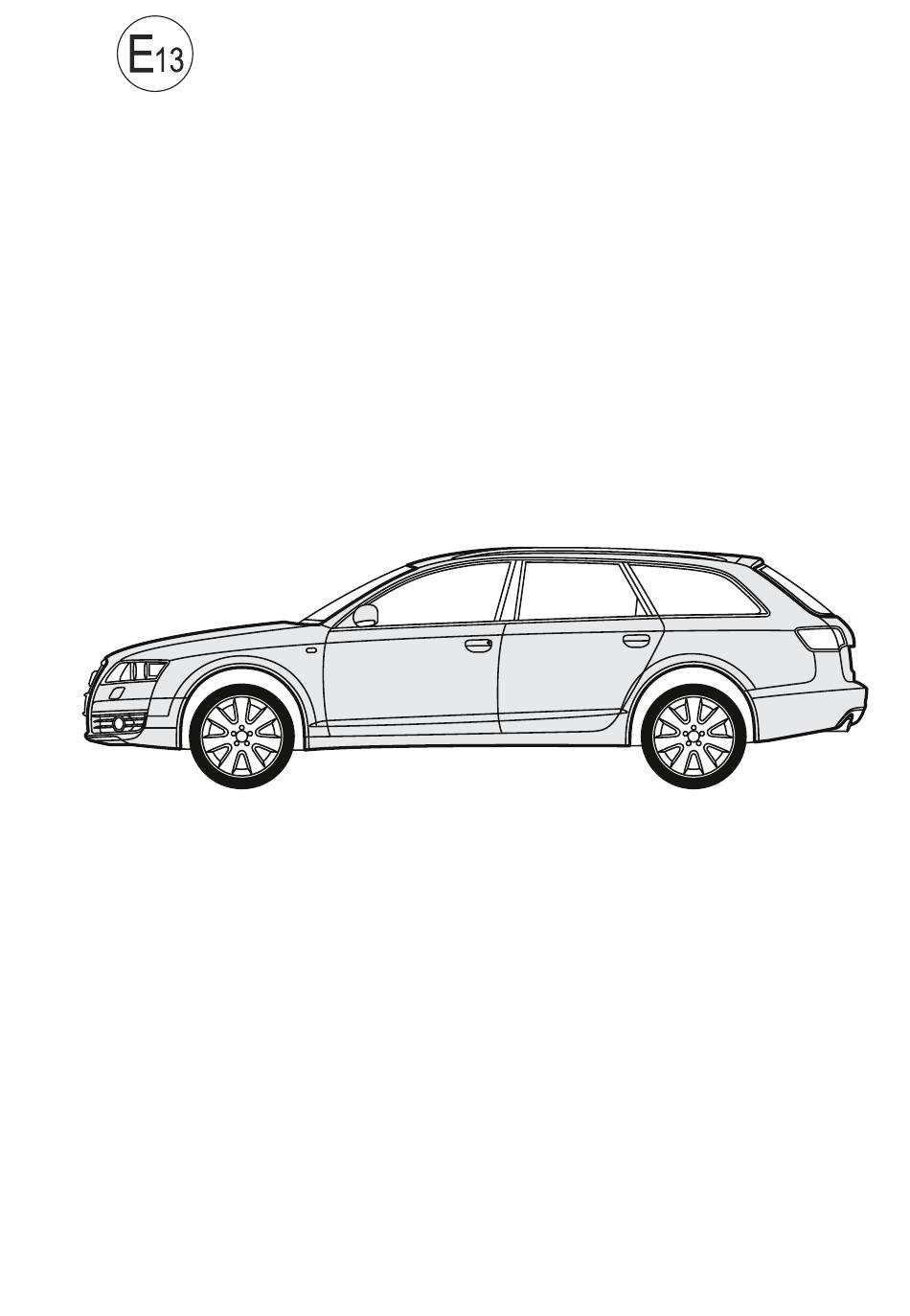

- Page 1 00-1721 120’ Audi A6 Avant (kombi) 2004» Audi A6 Allroad 604-060x...
- Page 2 rev. 2014-04-04 DC...
- Page 3 Congratulations on purchasing an ATS towbar Alexo Towbars Sweden offer quality towbars produced as a result of direct market research. Every towbar is sold with a unique 5-year guarantee which covers the functioning of the towbar system. Detachable towbars are to be removed when not used for towing, a common result of not removing the towbar during longer periods of time is oxidation of the inner mechanical parts, which causes the towbar to “stick”...
- Page 4 604-060x Included Material Inkluderat material Säkerhetskoppling...
- Page 5 Towbar installation diagram Dragkrok installationsdiagram...
-
Page 6: Fitting Instructions
604-060x Fitting instructions Dismantle the bumper and the metallic support behind the bumper. Screws are found within the trunk space as well as on right and left hand sides from inside the trunk. Join pieces A and B at the towbar, fix points 1 using M12x40 bolts. - Page 8 604-060x Removal of type 1 towball Demontering av typ 1 drag Fitting of type 1 towball Montering av typ 1 drag...
- Page 9 Removal of type 2 towball Demontering av typ 2 drag Fitting of type 2 towball Montering av typ 2 drag...
- Page 10 604-060x Maintenance of detachable towballs Underhåll av demonterbara dragkrokar...
- Page 11 © Copyright Alexo ATS This catalogue and all information within it belongs to Alexo ATS, any use of the material other than as an instruction manual is strictly forbidden and will be reported. All kinds of reproduction and /or usage of material from this catalogue is not permitted. ©...
- Page 12 T= 2100 kg D= 10,87 kN S= 85 kg...
