Summary of Contents for Alexo Sweden 652-301 Series

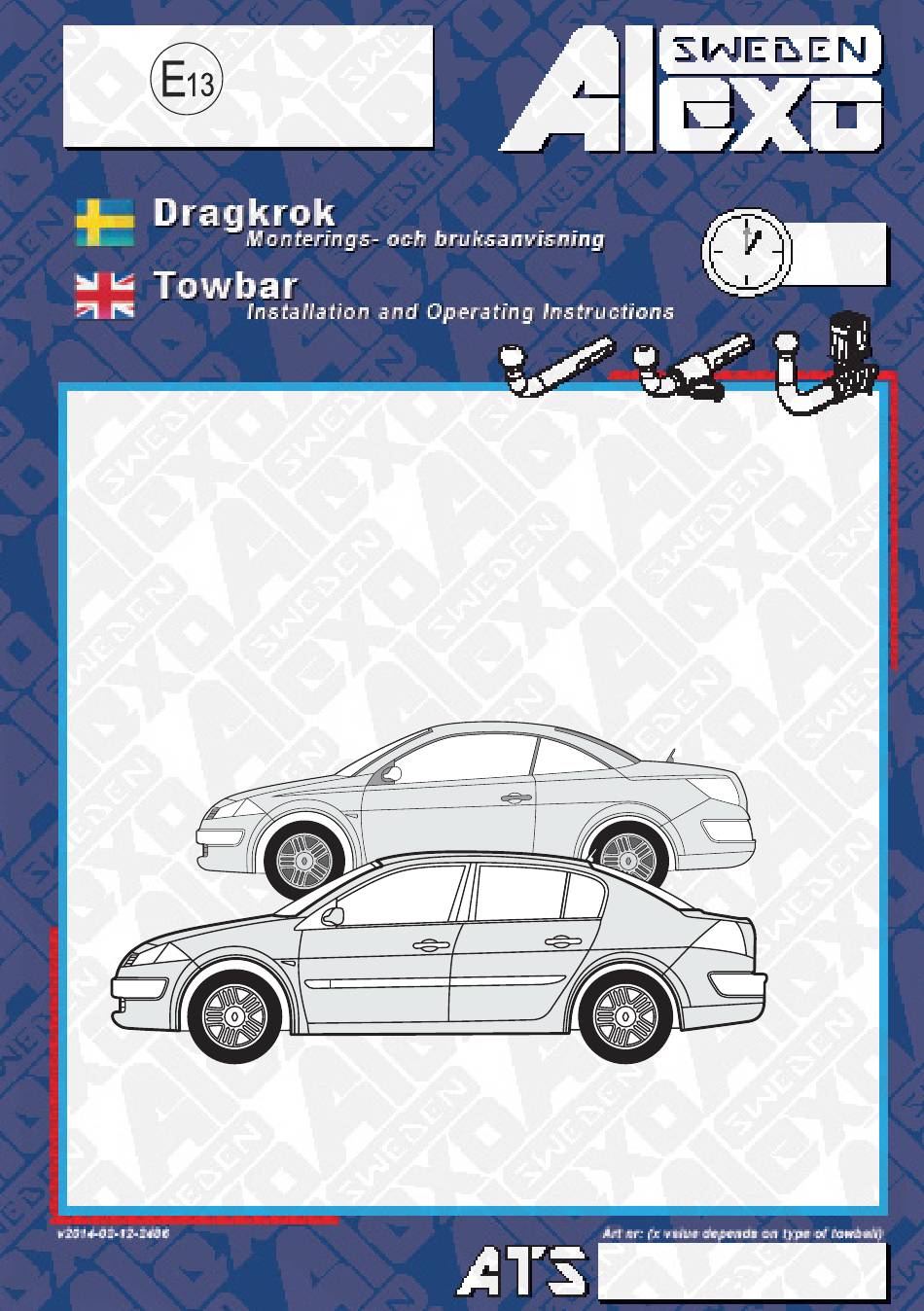

- Page 1 00-1388 120’ Renault Megane CC 2003»2010 652-301x...
- Page 2 rev. 2014-04-04 DC...
- Page 3 Congratulations on purchasing an ATS towbar Alexo Towbars Sweden offer quality towbars produced as a result of direct market research. Every towbar is sold with a unique 5-year guarantee which covers the functioning of the towbar system. Detachable towbars are to be removed when not used for towing, a common result of not removing the towbar during longer periods of time is oxidation of the inner mechanical parts, which causes the towbar to “stick”...
- Page 4 652-301x Included Material Inkluderat material Elementos de unión de la bola 2x M12 Fixing items of the coupling head Elementsd ef ixationd el a boule Elementid i unione della sfera Befestigungselemented er Kugel 2x 12 x 70 (8.8) Elementos ques e aportan Provided items Elementsj oints Elementic he si forniscono...
- Page 5 Towbar installation diagram Dragkrok installationsdiagram...
-
Page 6: Fitting Instructions
652-301x Fitting instructions 1.Dismount the bumper and the beam, (the beam will no longer be needed). Remove bolt that screw down the exhaust pipe. 2.Remove moquettes from lateral and floor from the trunk, remove adhesives fromAand Bpoints. 3.Place adhesive washers fixing 2 and 3 pieces, as shown on drawing. 4.Place side bracket 1 and mountAfitting points, using M10x35 bolts, flat washers 30 and lock wash- ers. - Page 8 652-301x Removal of type 1 towball Demontering av typ 1 drag Fitting of type 1 towball Montering av typ 1 drag...
- Page 9 Removal of type 2 towball Demontering av typ 2 drag Fitting of type 2 towball Montering av typ 2 drag...
- Page 10 652-301x Maintenance of detachable towballs Underhåll av demonterbara dragkrokar...
- Page 11 © Copyright Alexo ATS This catalogue and all information within it belongs to Alexo ATS, any use of the material other than as an instruction manual is strictly forbidden and will be reported. All kinds of reproduction and /or usage of material from this catalogue is not permitted. ©...
- Page 12 T= 1300 kg D= 8,02 kN S= 75 kg...
