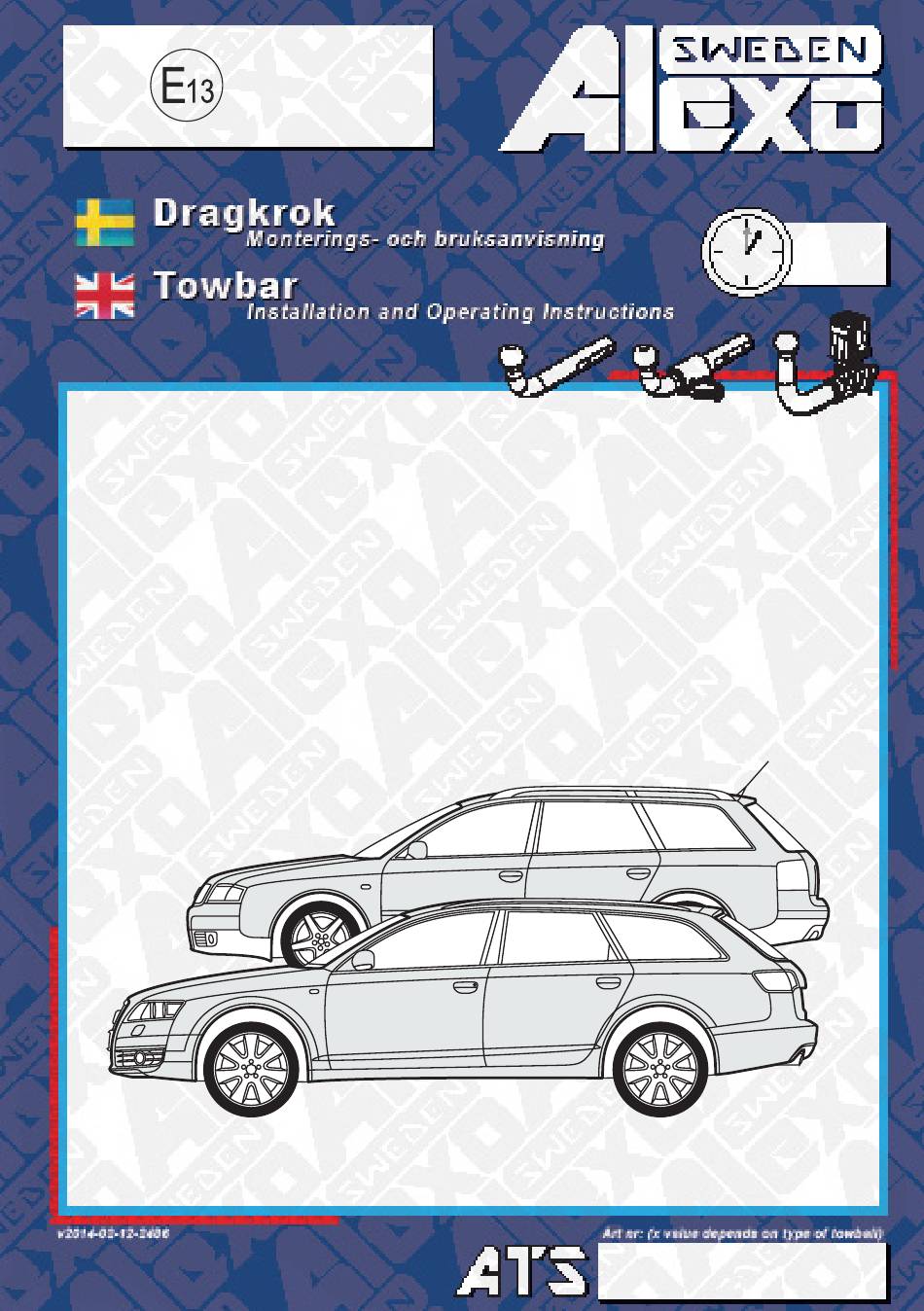

- Page 1 00-1488 120’ Audi A6 Sedan och Avant 1997»2004 604-0510...
- Page 2 rev. 2014-04-04 DC...
- Page 3 Congratulations on purchasing an ATS towbar Alexo Towbars Sweden offer quality towbars produced as a result of direct market research. Every towbar is sold with a unique 5-year guarantee which covers the functioning of the towbar system. Detachable towbars are to be removed when not used for towing, a common result of not removing the towbar during longer periods of time is oxidation of the inner mechanical parts, which causes the towbar to “stick”...
- Page 4 604-0510 Included Material Inkluderat material 2x M10 Elementos de unión de la bola 1x 10 x 70 (8.8) Fixing items of the coupling head 1x 10 x 75 (8.8) Delar för dragkrokens fäste Elementid i unione della sfera 4 x M12...
- Page 5 Towbar installation diagram Dragkrok installationsdiagram...
-
Page 6: Fitting Instructions
604-0510 Fitting instructions 1.Remove the trunk lining and the detachable cover plugs from the sides. 2.Remove the outside bumper loosing 2 bolts from the wheel compartment, 1 bolt located on the lower side and 5. nuts at each side of the rear lights. - Page 7 AUDIA-6 / AUDI A-6 SEDAN+AVANT (1997-2004) RECOR TE DEL PARAGOLPES UTSKÄRNING I STÖTFÅNGAREN COUP E DU PARE-CHOC S Ä Centro del paragolpes The middle of the bumper Stötfångarens mitt Der Mitter von Stossstange Centro del paraurti Linjen markerar stöfångarens mitt 50 mm...
- Page 8 604-0510 Removal of type 1 towball Demontering av typ 1 drag Fitting of type 1 towball Montering av typ 1 drag...
- Page 9 Removal of type 2 towball Demontering av typ 2 drag Fitting of type 2 towball Montering av typ 2 drag...
- Page 10 604-0510 Maintenance of detachable towballs Underhåll av demonterbara dragkrokar...
- Page 11 © Copyright Alexo ATS This catalogue and all information within it belongs to Alexo ATS, any use of the material other than as an instruction manual is strictly forbidden and will be reported. All kinds of reproduction and /or usage of material from this catalogue is not permitted. ©...
- Page 12 T= 2055 kg D= 10,86 kN S= 85 kg...
