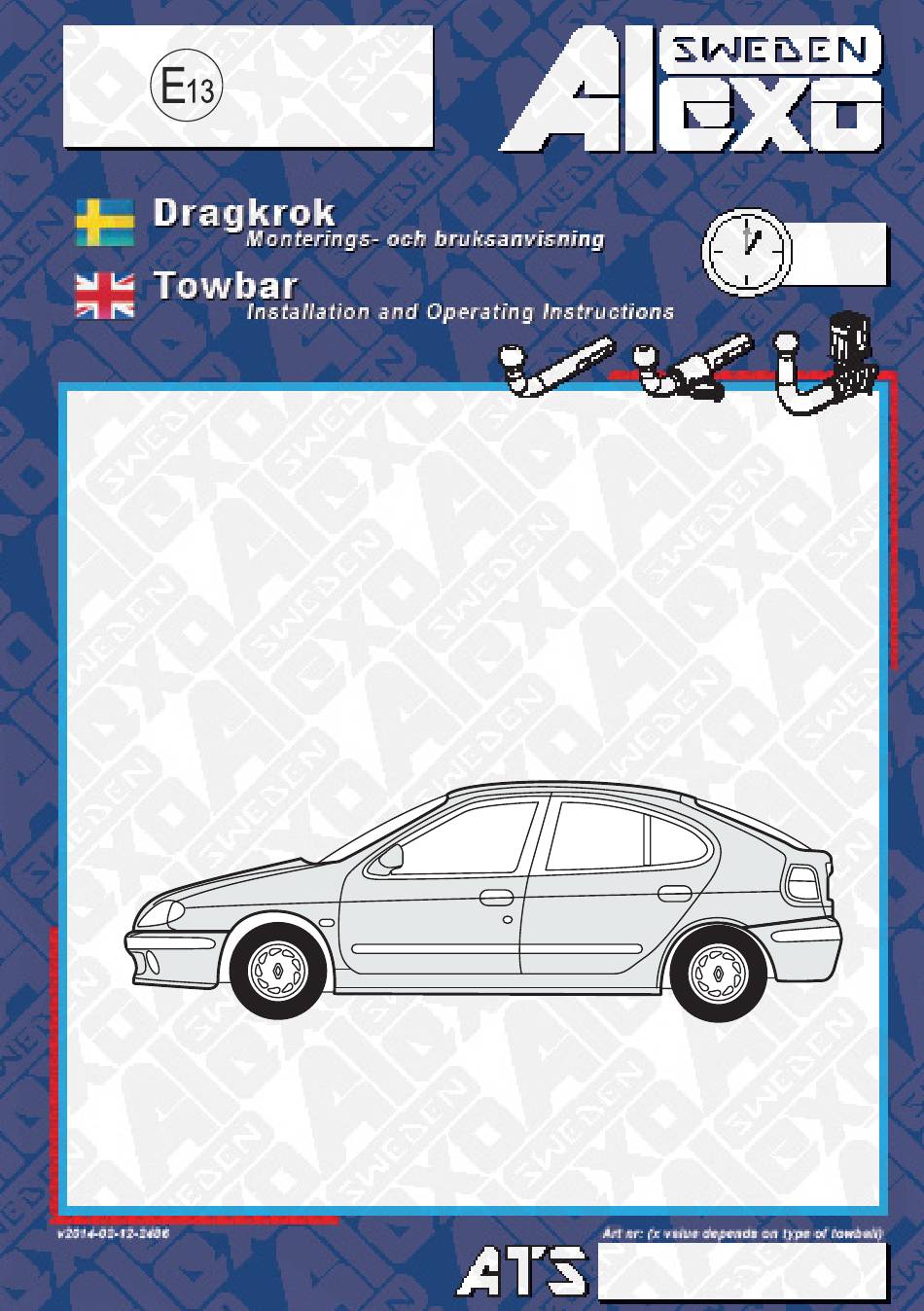

- Page 1 00-0830 120’ Renault Megane 5 p 1995»10/2002 652-1900...
- Page 2 rev. 2014-04-04 DC...
- Page 3 Congratulations on purchasing an ATS towbar Alexo Towbars Sweden offer quality towbars produced as a result of direct market research. Every towbar is sold with a unique 5-year guarantee which covers the functioning of the towbar system. Detachable towbars are to be removed when not used for towing, a common result of not removing the towbar during longer periods of time is oxidation of the inner mechanical parts, which causes the towbar to “stick”...
- Page 4 652-1900 Included Material Inkluderat material Fixing items of the coupling head 2 x M-12 Delar för dragkrokens fäste 2x 12 x 70 Provided items Medföljande delar M8x30 (8.8) M10x100 (8.8) M10x35 (8.8) ø 8 mm ø 10 mm ø 12 mm ø...
- Page 5 Towbar installation diagram Dragkrok installationsdiagram...
-
Page 6: Fitting Instructions
652-1900 Fitting instructions 1 Remove the existing vehicle covers from points A and place two M8 nuts (special or captive accord- ing model ). 2. Mount points A of side arms 1 and 2 using M8x30 bolts and washers 8 mm. Mount points B using M10x35 bolts, flat washers 10 mm. - Page 8 652-1900 Removal of type 1 towball Demontering av typ 1 drag Fitting of type 1 towball Montering av typ 1 drag...
- Page 9 Removal of type 2 towball Demontering av typ 2 drag Fitting of type 2 towball Montering av typ 2 drag...
- Page 10 652-1900 Maintenance of detachable towballs Underhåll av demonterbara dragkrokar...
- Page 11 © Copyright Alexo ATS This catalogue and all information within it belongs to Alexo ATS, any use of the material other than as an instruction manual is strictly forbidden and will be reported. All kinds of reproduction and /or usage of material from this catalogue is not permitted. ©...
- Page 12 T= 1350 kg D= 7,57 kN S= 75 kg...
