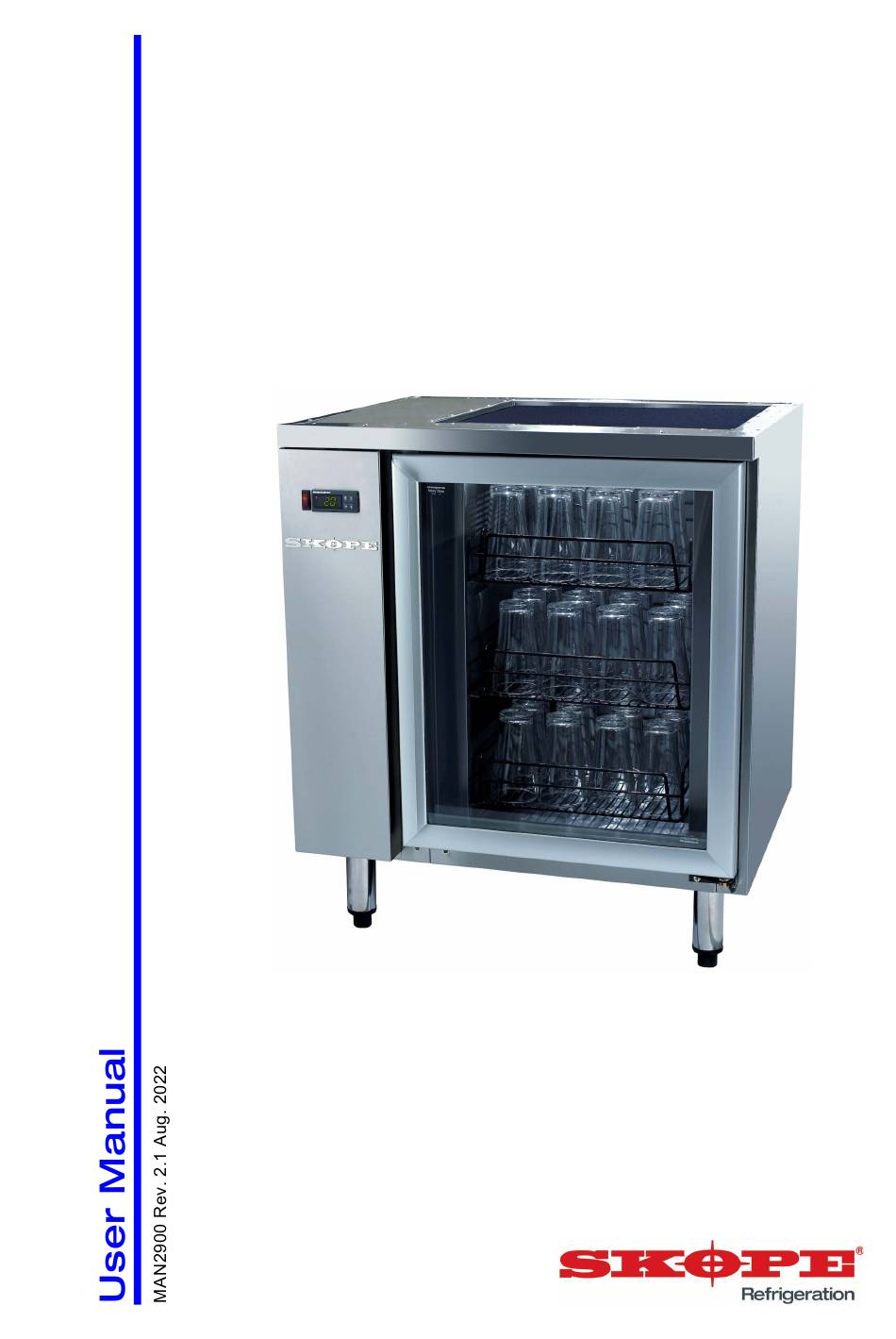

- Page 1 SKOPE Remote Glass Chiller GC110r...
- Page 2 E-mail: skope@skope.com Website: www.skope.com Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after its state, condition, get-up or packaging has been altered in any manner •...
-
Page 3: Table Of Contents
Troubleshooting ........11 SKOPE Remote Glass Chiller – GC110r... -
Page 4: Installation

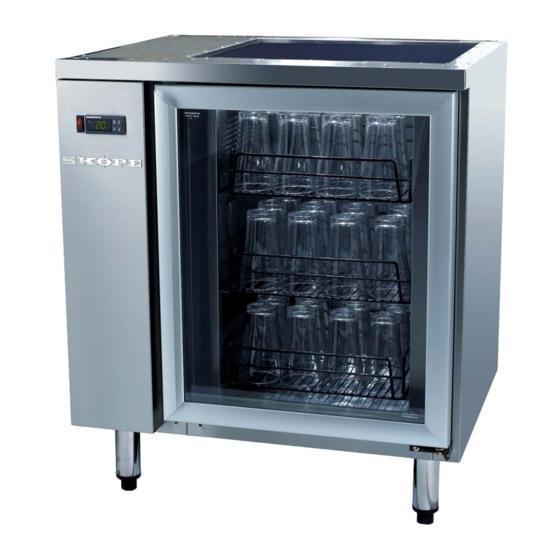

Function The SKOPE Remote Glass Chiller is designed to chill glasses. The chiller can hold three standard 14” wide x 17” deep (355 mm x 432 mm) glass racks. The racks of glasses (not included with the cabinet) are loaded from the front of the cabinet by opening the glass door. -
Page 5: Positioning The Cabinet
The four adjustable legs can adjust the cabinet height up to 30 mm. To adjust the height of each leg, turn the black plastic foot at the bottom of the leg counter-clockwise to raise the height or clockwise to lower the height of the cabinet. SKOPE Remote Glass Chiller – GC110r Installation... -
Page 6: Refrigeration System Installation
18 / 24 hours * Maximum 40°C ambient (optimised at 32°C/65% relative humidity) Model Refrigerant Refrigeration duty – R134a / R404A GC110r-C R134a 450 watts (at -5°C SST) GC110r-D R404A 450 watts (at -5°C SST) SKOPE Remote Glass Chiller – GC110r Installation... - Page 7 10°C. Optional solenoid valve connection cover On/off power switch 3/8” suction line and 1/4” liquid line outlets Mains supply power cord Evaporator drain spigot (3/4” O.D.) Figure 3: Refrigeration Services SKOPE Remote Glass Chiller – GC110r Installation...
-
Page 8: Electronic Controller
Flashes when activating the compressor is temporarily delayed. Fan: ON when the internal cabinet fans are activated. Flashes when activating the fans is temporarily delayed. Alarm: ON when an alarm is signalled. SKOPE Remote Glass Chiller – GC110r Electronic Controller... -
Page 9: Temperature Setpoint
The chiller temperature setpoint is factory set at 2.0°C. If necessary the standard setting can be adjusted between 0.5°C and 4.5°C. SKOPE does not recommend that the setpoint be changed unless it is absolutely necessary, and then only by small increments at a time. - Page 10 High voltage alarm. An alarm sounds. The mains voltage is high. The controller switches the compressor off. The controller will automatically reset the alarm once the mains voltage drops. Electronic controller fault. SKOPE Remote Glass Chiller – GC110r Electronic Controller...
-
Page 11: Maintenance
Servicing Servicing should be carried out by an authorised service agent. Detailed service and spares information is available in the SKOPE Remote Glass Chiller Service Manual (MAN2901). Warranty To receive a warranty for your purchased cabinet, you MUST register your cabinet within four weeks from the date of invoice by filling out either: •... - Page 12 SKOPE Industries Limited ABN: 73 374 418 306 AU: 1800 121 535 NZ: 0800 947 5673 skope@skope.com www.skope.com...
