Summary of Contents for Skope OD460

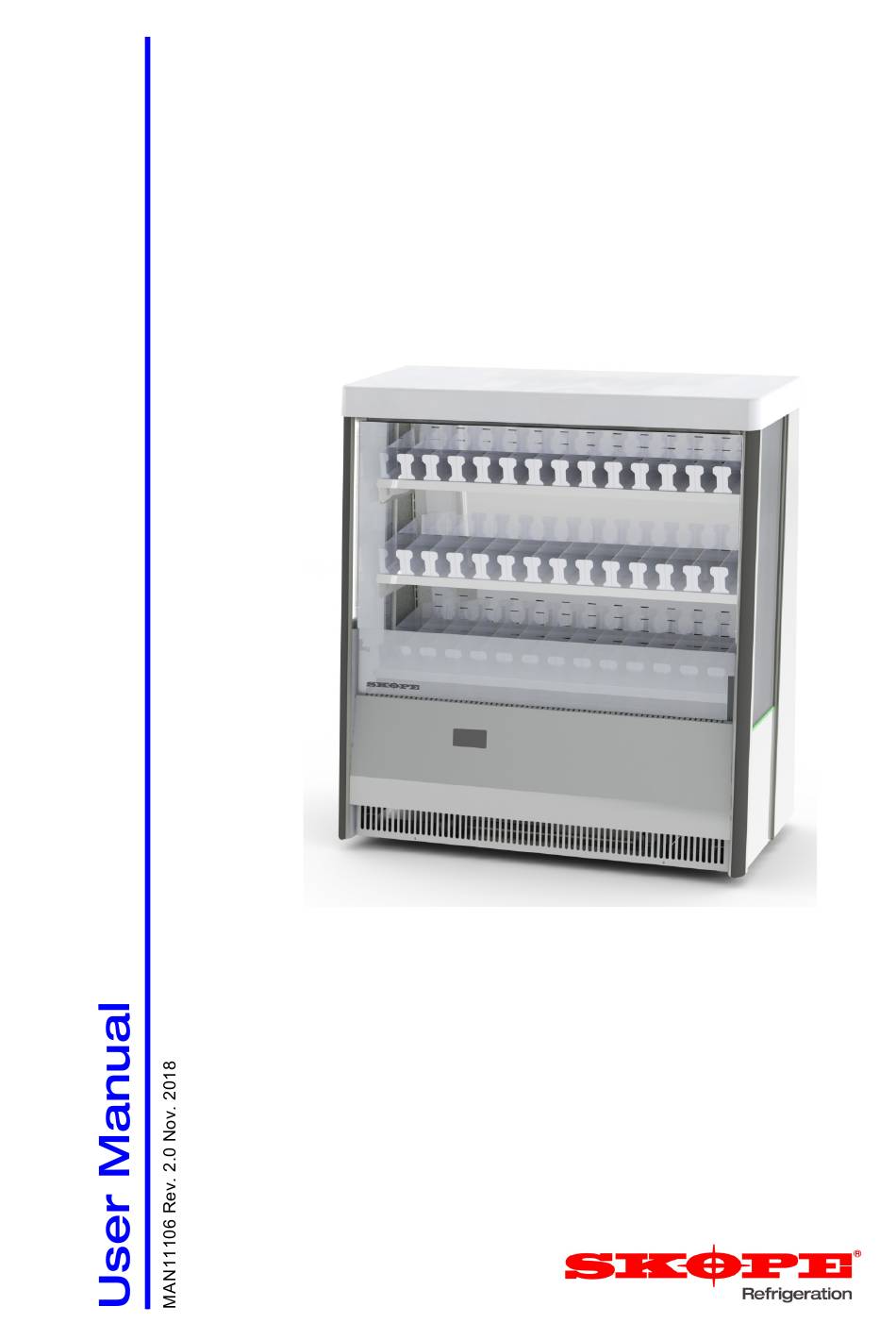

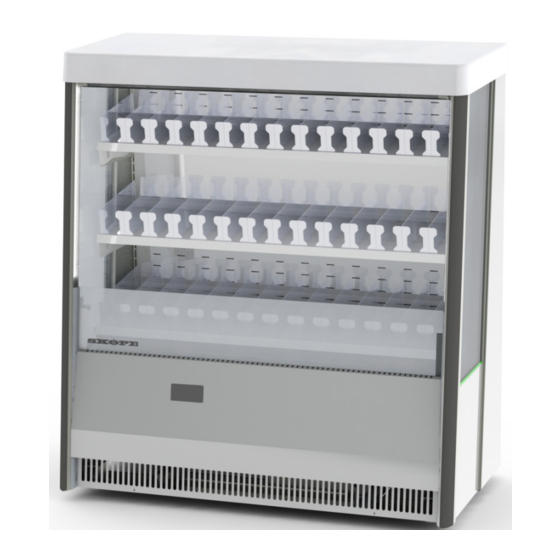

- Page 1 OD460 SKOPE Open Deck Chiller...
-
Page 3: Table Of Contents
Troubleshooting......... 18 SKOPE OD460... -
Page 4: Installation
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. Please contact SKOPE Customer Services for advice regarding disposal of this appliance. WARNING Disconnect the cabinet from the mains power supply before attempting any cleaning or maintenance. -
Page 5: Positioning The Cabinet
Positioning the Cabinet Climate Class The OD460 chiller is designed to operate within a climate class 3 environment (25°C @ 60% RH). We recommend that you put the chiller in the coolest place possible because it will use less power and last longer. - Page 6 SKOPE OD460 60mm 60mm 30mm (min) (min) (rear spacer) 200mm (min) Front Exhaust air Exhaust air Back wall intake Free-standing installation ventilation requirements Enclosed installations Enclosed installations must have the following minimum clearances around the cabinet, and include the following features: 75mm behind the cabinet.
-
Page 7: Shelves
SKOPE OD460 Shelves Installing the The chiller is supplied with three metal shelves. The shelves are different Shelves depths, with the top shelf being the shallowest and the bottom shelf the deepest. The bottom shelf is fixed in position, and the two top shelves are height and angle adjustable, and removable. -
Page 8: Optional Gravity Shelf System
SKOPE OD460 Optional When the chiller is ordered with the optional gravity feed matting, each shelf Gravity Shelf is supplied with corresponding gravity feed matting and shelf dividers. The gravity shelf system comes in three sizes to suit the three different size System shelves. -
Page 9: Operation
SKOPE OD460 Operation Automatic Start-Up After the cabinet has been positioned in a suitable place, plug it in and check the following activity. Item Activity An electronic controller runs the chiller and is visible behind Electronic the front panel. The display panel first flashes start-up controller messages before stabilising on the cabinet temperature. -
Page 10: Loading Product
SKOPE OD460 Loading Product Let the chiller run for 30 minutes before loading it with product for the first time. When loading the cabinet shelves with product: Allow adequate air space around each item to ensure even cooling and ... -
Page 11: Electronic Controller
SKOPE OD460 Electronic Controller Introduction The OD460 chiller is fitted with a Carel ir33 electronic controller which is visible through a cut-out in the cabinet front panel. The electronic controller switches the chiller between Day and Night modes depending on the night blind position, and uses temperature probes to control and display the chiller temperature, collect data, signal temperature alarms and force a defrost cycle when required. -
Page 12: Faceplate
SKOPE OD460 Faceplate Because the electronic controller plays such an important role, it’s helpful to know the parts of the faceplate you may use. No. Item Description Mute (program): Button. Mutes the audible controller alarm. Also used for controller programming. -
Page 13: Defrost
SKOPE OD460 Defrost To ensure efficient operation, the electronic controller forces a defrost cycle when required. During a defrost cycle, the compressor stops, DEF and the will display on the electronic controller faceplate. The cabinet will resume normal operation once the defrost cycle has finished. A manual defrost can also be initiated by pressing and holding the button. -
Page 14: Temperature Setpoint
Temperature The chiller is manufactured with a pre-set control temperature set point Setpoint which can be adjusted if required. SKOPE do not recommend that the set point be changed unless absolutely necessary. To view and adjust the temperature setpoint 1. To view the setpoint: press and hold the... -
Page 15: Controller Alarms
1 temperature alarm minute, then reconnect to power supply. (auto reset) Flashing If alarm persists, contact SKOPE. Refrigeration system 1. Check refrigeration ventilation. Ensure clear high temperature airpath at the top and front of the cabinet (to pre-warning (auto extract hot air). -
Page 16: Maintenance
SKOPE OD460 Maintenance Isolating Electrics The chiller cabinet should be isolated from the power supply before attempting any maintenance. Use the isolating switch and plug, located in the refrigeration unit compartment, to turn off the electrics to the cabinet and refrigeration unit without unplugging the cabinet from the wall. -
Page 17: Maintenance
SKOPE OD460 Maintenance To ensure the chiller continues to run efficiently and reliably, the following maintenance should be carried out: Cleaning Cabinet Keep the interior and exterior of the cabinet clean by regular wiping with a damp cloth. The bottom shelf can be removed to assist with cleaning by undoing the two side fixing screws. -
Page 18: Troubleshooting
SKOPE OD460 Troubleshooting For questions about the electronic controller, see page 11. For problems with the cabinet and refrigeration cassette, use the following table. Problem Possible Cause Suggestions • Chiller not operating • Loss of power supply • Check mains power supply. - Page 19 Website: www.skope.com.au OD460 SKOPE Open Deck Chiller User Manual MAN11106 Rev. 2.0 Nov. 2018 © 2015 SKOPE Industries Limited. All rights reserved. SKOPE Industries Limited reserve the right to alter specifications without notice. is a registered trademark of SKOPE Industries Limited.
