Skope SK1000 Operating And Service Manual

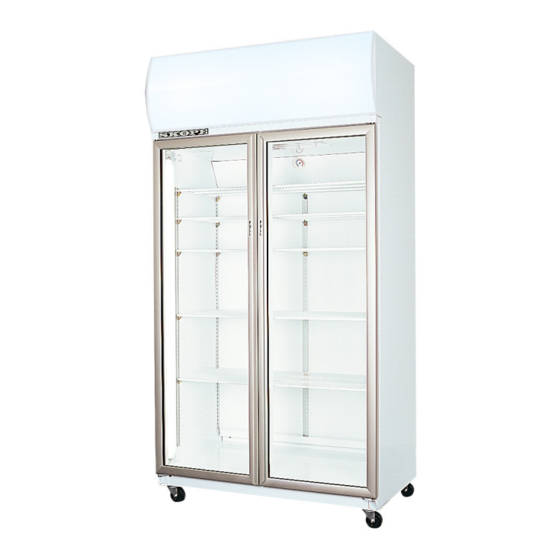

Top mounted two door chiller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Vertical Display and Storage
SK1000
SKOPE Top Mounted Two Door Chiller

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SK1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Skope SK1000

Summary of Contents for Skope SK1000

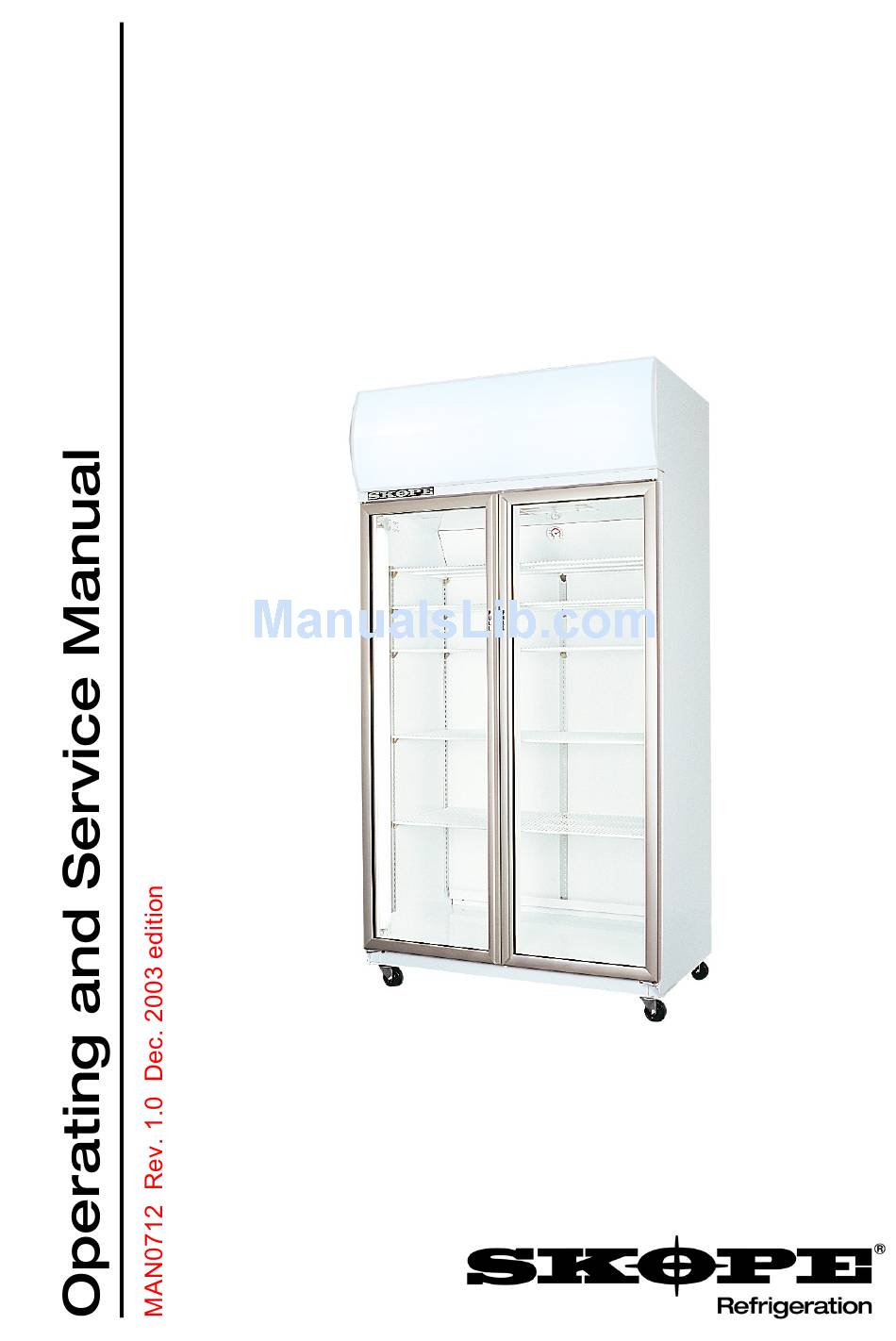

  • Page 1 Vertical Display and Storage SK1000 SKOPE Top Mounted Two Door Chiller...
  • Page 3 E-mail: enquiry@skope.co.nz Website: www.skope.co.nz Australia SKOPE AUSTRALIA PTY LTD A.C.N. 000 384 270 PO Box 7543, Baulkham Hills B.C. NSW 2153, Australia Freephone: 1800 121 535 Fax: 1800 121 533 E-mail: enquiry@skope.com.au Website: www.skope.com.au SK1000 SKOPE Top Mounted Vertical Chiller...
  • Page 4 SKOPE Industries Limited, Christchurch, New Zealand. Copyright © 2003 SKOPE Industries Limited. All rights reserved. SKOPE and CYCLONE are registered trademarks of SKOPE Industries Limited. SKOPE Industries Limited reserve the right to alter specifications without notice. SK1000 SKOPE Top Mounted Vertical Chiller...
  • Page 5 WIRING DIAGRAM Model: SK1000 ........30 SPARES Cabinet Assembly .

  • Page 6: Cabinet And Refrigeration Unit

    370mm high flat sign: 1 x 30 Watt fluorescent tube, Ø26 x 915mm Doors Self-closing, aluminium framed, double glazed, toughened safety glass Shelves Adjustable height, white powder coated, steel wire shelves Table 1: Specifications SK1000 SKOPE Top Mounted Vertical Chiller...

  • Page 7: Positioning Of Machine

    Maximum recommended operating ambient temperature is 40°C. Never store cardboard cartons or other items on top of the refrigeration unit. SK1000 SKOPE Top Mounted Vertical Chiller...

  • Page 8: Safety Information

    • Do not use this appliance for other than its intended use. • Only use this appliance with voltage specified on the rating label. • Ensure adequate ventilation of SKOPE refrigeration unit. • Condenser coil MUST be kept clean. To ensure trouble free...

  • Page 9: Operation Of Machine

    Do not allow products to overhang the front of the shelf as this could prevent the door from shutting or cause glass breakage. Leave an airspace of at least 75mm (3") above packages etc. on the top shelf. SK1000 SKOPE Top Mounted Vertical Chiller...

  • Page 10: Cleaning

    Caution: The cabinet MUST be disconnected from the mains power supply before cleaning the condenser coil. 3.5 Servicing Servicing should be carried out by an authorised service agent. SK1000 SKOPE Top Mounted Vertical Chiller...

  • Page 11: Interior Side Light

    5. When refitting the diffuser, engage back section into side light housing, and compress and snap front section of diffuser back into place working progressively down the full length of light. COMPRESS Tube Holder Diffuser Starter Fluorescent Tube PUSH Figure 1: Interior Side Light SK1000 SKOPE Top Mounted Vertical Chiller...

  • Page 12: Glass Doors

    This will lessen the possibility of the gasket rolling. Should the gasket be out of shape when in place, use hot air (i.e. from hair drier) to realign. Gasket Retainer Door Gasket Door Frame Figure 2: Door Gasket Removal SK1000 SKOPE Top Mounted Vertical Chiller...
  • Page 13 In the event the door tension can no longer be adjusted, the torsion bar may need replacing (see ‘Torsion bar replacement’, page 14). Bottom Hinge Bracket Door Split Pin Door alignment adjustment screw Ø2.5mm steel rod Capstan Figure 3: Door Tension SK1000 SKOPE Top Mounted Vertical Chiller...
  • Page 14 6. Lightly tap bottom of capstan into hinge hole, until the bush is flush with Bush door frame. Refit the door to cabinet, and Capstan adjust tension (see ‘Glass Door Tension’, page 13). Figure 4: Torsion Bar Assembly SK1000 SKOPE Top Mounted Vertical Chiller...

  • Page 15: Solid Doors

    Ensure the square notch in the hinge plate mates with the door hinge, when replacing. Solid Door Hinge Mechanism Square Locating Notch Spring Stop Washer (2) Solid Door Hinge Bracket Bottom Hinge Screw Figure 5: Solid Door Hinge Mechanism SK1000 SKOPE Top Mounted Vertical Chiller...

  • Page 16: Sign Unit

    5. The fluorescent tube can now be accessed for replacement (see figure 13, page 17). Sign Top Cover Sign Top Cover Corner Notch Corner Notch Sign Panel End Strip Sign Panel Figure 11: Removing Sign Panel Figure 12: Sign Corner Detail SK1000 SKOPE Top Mounted Vertical Chiller...
  • Page 17 Centre Tie Wire Fluorescent Tube Sign Wiring Cover Sign Top Cover Sign Unit Sign Panel End Strip Sign Panel Sign Bottom Cover Sign ENSTO 3-pole Plug Figure 13: Sign Unit (with sign panel removed) SK1000 SKOPE Top Mounted Vertical Chiller...
  • Page 18 2. Loosen the keyhole screws, holding side panels to cabinet top. 3. Slide the side panels forward to disengage the keyholes. Sign Retaining Clip Sign Side Panel Sign Back Panel Figure 15: Sign Retaining Clip Figure 16: Sign Back Panel SK1000 SKOPE Top Mounted Vertical Chiller...

  • Page 19: Refrigeration Unit

    SERVICE INSTRUCTIONS 4.5 Refrigeration Unit The SKOPE Cyclone® unit is a self-contained refrigeration module, which aligns with port holes on top of the cabinet. Air is drawn through the evaporator and blown down the back duct. Air returns to the evaporator through the roof port hole.
  • Page 20 3. Remove the cover from control box, or undo the thermostat bracket and remove thermostat (see page 37 for spare parts). 4. When refitting thermostat, ensure the capillary is fitted back in the original position. SK1000 SKOPE Top Mounted Vertical Chiller...
  • Page 21 SERVICE INSTRUCTIONS Recommended Service Procedures SKOPE recommend the SKOPE Cyclone® demountability and exchangeability philosophy, which in essence means: The customer must not be inconvenienced during system maintenance. In the unlikely event of Refrigeration failure, an exchange unit is simply swapped in a matter of minutes. There is no cabinet down time or unloading product.
  • Page 22 Finally, pinch-off the gauge process lines (or remove line piercing valves) and braze the system closed. SKOPE recommend against leaving service valves in the system as these are prone to leak (and are open to abuse). Perform a final system leak test.
  • Page 23 • The drier must be replaced every time the system is opened. • Clean work practices are essential. • SKOPE recommend brazing the system closed after service - as valves are prone to leak due to the nature of R134a.

  • Page 24: Pressure Temperature Chart

    22.0 26.6 23.0 28.4 25.0 30.2 26.0 32.0 28.0 33.8 29.0 35.6 31.0 37.4 33.0 39.2 34.0 41.0 36.0 42.8 38.0 44.6 40.0 46.8 42.0 48.2 44.0 50.0 46.0 Table 2: Pressure Temperature Chart SK1000 SKOPE Top Mounted Vertical Chiller...

  • Page 25: Trouble Shooting Chart

    Compressor motor has a winding Check resistance values. open or shorted. Replace compressor if neces- sary. Internal mechanical trouble in com- Replace compressor. pressor. Table 3: Trouble Shooting Chart - continued on next page SK1000 SKOPE Top Mounted Vertical Chiller...

  • Page 26: Trouble Shooting

    Check refrigerant charge (fix suction gas cooling. leak), add if necessary. Check return vapour temperature and suction superheat. Comp’r motor has a winding shorted. Replace compressor. Table 3: Trouble Shooting Chart - continued on next page SK1000 SKOPE Top Mounted Vertical Chiller...
  • Page 27 Compressor not pumping Replace compressor. efficiently. Filter dirty (if applicable). Clean or replace. Faulty fan motor. Check rotation. Replace if necessary. Table 3: Trouble Shooting Chart - continued on next page SK1000 SKOPE Top Mounted Vertical Chiller...
  • Page 28 11. Unit noisy. Loose parts or mountings. Find and tighten. Tubing rattle. Reform to be free of contact. Bent fan blade causing vibration. Replace blade. Fan motor bearing worn. Replace motor. Table 3: Trouble Shooting Chart SK1000 SKOPE Top Mounted Vertical Chiller...
  • Page 29 SERVICE INSTRUCTIONS Notes SK1000 SKOPE Top Mounted Vertical Chiller...

  • Page 30: Model: Sk1000

    WIRING DIAGRAM 5.1 Model: SK1000 Figure 8: SK1000 Wiring Diagram SK1000 SKOPE Top Mounted Vertical Chiller...

  • Page 31: Wiring Diagram

    Condenser Fan Motor Evaporator Fan Motor Socket Box ENSTO Connector (2) Control Panel Connector Block (3) 58/65 Watt Ballast (2) Side Light Assembly (2) 58 Watt Fluorescent Tube (2) Centre Pillar Assembly Centre Pillar Element SK1000 SKOPE Top Mounted Vertical Chiller...

  • Page 32: Cabinet Assembly

    SKOPE Badge V5000/770BF-99 Wire Shelf V5000/583-32 Shelf Bracket V0973-99 Dial Thermometer V5000/95 Fused Connector Block ELZ6461 Fuse Holder ELZ6462 3.0 Amp Ceramic Fuse ELZ6467 58/65 Watt Ballast (for interior sidelight) ELZ8103 Swivel Castor SXX4339 SK1000 SKOPE Top Mounted Vertical Chiller...

  • Page 33: Interior Side Light

    SKOPE Part Number Side Light Assembly - L/H V5060/670L-32 Side Light Assembly - R/H V5060/670R-32 58 Watt Fluorescent Tube ELL6267 Side Light Diffuser V5060/E71 Starter ELZ2840 Lamp Holder ELZ6270 Lamp & Starter Holder ELZ6271 SK1000 SKOPE Top Mounted Vertical Chiller...

  • Page 34: Glass Door

    TUR5100 Top Hinge Assembly - R/H V5301/388 Top Hinge Assembly - L/H V5301/389 Bottom Hinge - R/H V5000/393-32 Bottom Hinge - L/H V5000/394-32 * If ordering a door assembly, please quote the finish colour. SK1000 SKOPE Top Mounted Vertical Chiller...

  • Page 35: Solid Door

    HIN5780 Top Hinge Assembly - R/H V5301/388 Top Hinge Assembly - L/H V5301/389 Bottom Hinge - R/H V5000/393-32 Bottom Hinge - L/H V5000/394-32 * If ordering a door assembly, please quote the finish colour. SK1000 SKOPE Top Mounted Vertical Chiller...

  • Page 36: Illuminated Sign

    ELZ6271 Fused Connector Block ELZ6461 Fuse Holder ELZ6462 3.0 Amp Ceramic Fuse ELZ6467 * If ordering a packed sign assembly, or the sign outer panels, please quote this part number plus the painted colour. SK1000 SKOPE Top Mounted Vertical Chiller...

  • Page 37: Refrigeration Unit

    DRY8783 Thermostat - Saginomiya ELO7702 Unit Base V5000/210-32 Discharge Line V5020/255 Suction Line Assembly E5020/378 Condenser / Evaporator Motor ELM5304 R/H Fan Blade (clockwise) FAN4100 Relay - Danfoss SC12B ELR2729NC RFI Suppression Capacitor ELC8068 SK1000 SKOPE Top Mounted Vertical Chiller...
