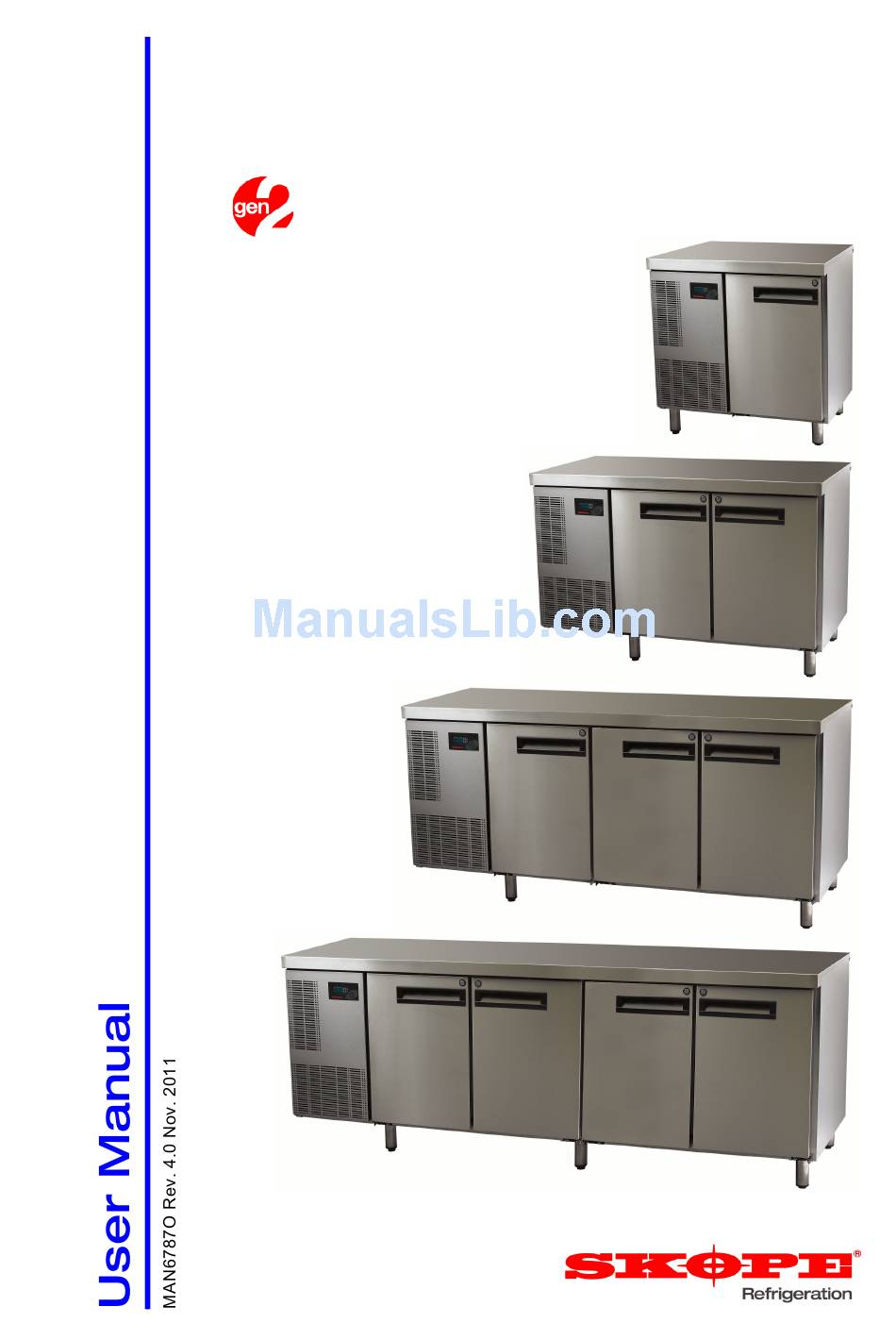

SKOPE PEGASUS
PG100/250/400/550HC-2
Horizontal Chiller - INTEGRAL
PG100HC-2
PG250HC-2
PG400HC-2
PG550HC-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pegasus PG100HC-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Skope Pegasus PG100HC-2

  • Page 1 SKOPE PEGASUS PG100/250/400/550HC-2 Horizontal Chiller - INTEGRAL PG100HC-2 PG250HC-2 PG400HC-2 PG550HC-2...
  • Page 2 E-mail: enquiry@skope.co.nz Website: www.skope.co.nz Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after their state, condition, get-up or packaging has been altered in any manner •...
  • Page 3: Table Of Contents

    Troubleshooting......... 20 SKOPE Pegasus Horizontal Chiller - Integral...
  • Page 4: Installation

    SKOPE Pegasus Horizontal Chiller - Integral Installation Safety First Always observe safety precautions when using any electrical appliance. Read these instructions carefully and retain them for future reference. When the appliance is used by or near young children or infirm persons, ...
  • Page 5: Fitting The Legs Or Castors

    SKOPE Pegasus Horizontal Chiller - Integral Fitting the Legs or Castors Packed inside the the cabinet is a set of adjustable height legs and a set of adjustable height castors. Either of these sets can be fitted to the cabinet depending on specific height and manoeuvrability requirements.
  • Page 6: Positioning The Cabinet

    Adequate allowance should be made for door opening. Always ensure that the top of the cabinet is shielded from impact and moisture, with either a SKOPE provided bench top or with a custom or existing bench top. Ventilation For efficient operation of the chiller, it is essential that adequate ventilation be provided around the front of the refrigeration unit.
  • Page 7: Shelving

    SKOPE Pegasus Horizontal Chiller - Integral Shelving The cabinet is supplied with two sets of shelves and shelf support brackets per door. The shelves can be positioned at different heights to suit various products. To fit the shelves 1. Unpack the shelving items from inside the cabinet.
  • Page 8: Operation

    11 for controller alarms). To replace a LED tube see service instructions on page 12. HACCP If Hazard Analysis Critical Control (HACCP) functions are required, to monitor food storage temperature, please contact SKOPE to arrange for an authorised SKOPE service technician to setup the electronic controller. Operation User Manual...
  • Page 9: Electronic Controller

    SKOPE Pegasus Horizontal Chiller - Integral Electronic Controller Controller Display Figure 7: Controller Display Item Icon Function Prg / mute: n.a. UP / aux: To scroll settings UP (in programme mode). Set: If pressed for more than 2 seconds displays and / or enables changing the temperature setpoint (see page 10).
  • Page 10: Controller Overview

    Setpoint standard setting can be adjusted between 1.5°C and 3.5°C. SKOPE do not recommend that the setpoint be changed unless it is absolutely necessary, and then only by small increments at a time. To view and adjust the temperature setpoint 1.
  • Page 11: Controller Alarms

    SKOPE Pegasus Horizontal Chiller - Integral Controller Alarms Code Display Buzzer Alarm Action 1. Check the cabinet product loading to ensure ventilation Product HIGH slots are not blocked, and that product does not overhang temperature alarm the shelves. Ensure the doors are closed.
  • Page 12: Servicing

    SKOPE Pegasus Horizontal Chiller - Integral Servicing Lighting Cabinet Depending on the model, the cabinet interior is lit by one or two 5 Watt T8 Interior Lights LED tubes, fitted behind the centre pillars. The single door model, without a centre pillar, has the interior interior LED light tube fitted on the ceiling of the cabinet.
  • Page 13: Cleaning

    Over time, dust may accumulate within the condenser that cannot be removed with a brush. If this occurs, contact SKOPE to arrange for a SKOPE authorised service agent to clean the condenser with compressed air. The condenser coil is located inside the refrigeration unit compartment and is accessed by opening the unit front cover.
  • Page 14: Wiring

    SKOPE Pegasus Horizontal Chiller - Integral Wiring Cabinet Wiring Diagram Cabinet Wiring Component Key Item Description Item Description Foamed cabinet Single pole door activated switch Cabinet stepped front top 4-Core link flex Cabinet supply flex with 4-Pole ENSTO plug Link flex earth connections...
  • Page 15 SKOPE Pegasus Horizontal Chiller - Integral Cabinet Wiring Component Key (continued) Item Description Item Description Centre pillar fascia heater wire (chiller, otherwise freezer) Mains isolation box assembly (**NOT on remote cabinets) Heated lit centre pillar back assembly Mains supply flex (with 3-Pin plug fitted)
  • Page 16: Refrigeration Unit Wiring Diagram

    SKOPE Pegasus Horizontal Chiller - Integral Refrigeration Unit Wiring Diagram Models: UE50/60ACD Wire Colour Key Black Blue Brown Grey White Orange GNYE Green-Yellow Green Based upon IEC 757 Standard Servicing User Manual...
  • Page 17 SKOPE Pegasus Horizontal Chiller - Integral Refrigeration Unit Wiring Component Key Models: UE50/60ACD Item Description Item Description Refrigeration Unit Assembly Terminal Box (for evaporator fan flex extension) Unit Wiring Junction Box Evaporator Fan (CW rotation LE*) Refrigeration Unit Supply Isolation Flex (with 3-Pole Blue ENSTO Cabinet Ambient Temperature Probe (1.5m)
  • Page 18: Advanced Servicing

    Advanced Servicing Servicing should be carried out by an authorised service agent. Detailed service and spares information is available in the SKOPE Pegasus Service Manual (MAN6787S) and detailed technical information on the SKOPE ir33 Controller can be found in the SKOPE Pegasus Technicians Manual (MAN3224).
  • Page 19 SKOPE Pegasus Horizontal Chiller - Integral 5. Pull the top clamp mechanism fully forward, into the relocation position on the front flange of the cabinet (this keeps the mechanism up out of the way). 6. Remove the bottom clamp screw from the front of the refrigeration unit.
  • Page 20: Troubleshooting

    SKOPE Pegasus Horizontal Chiller - Integral Troubleshooting Complaint Possible Cause Repair 1. Cabinet not • Loss of power supply. • Check mains power supply. operating and • Check that the cabinet no controller isolating switch is turned on display: (see page 6).
  • Page 21 SKOPE INDUSTRIES LIMITED NEW ZEALAND CONTACT Head Office PO Box 1091, Christchurch New Zealand Freephone: 0800 947 5673 Fax: (03) 983 3896 E-mail: enquiry@skope.co.nz Website: www.skope.co.nz AUSTRALIAN CONTACT A.B.N. 73 374 418 306 PO Box 7543, Baulkham Hills B.C. NSW 2153, Australia...
