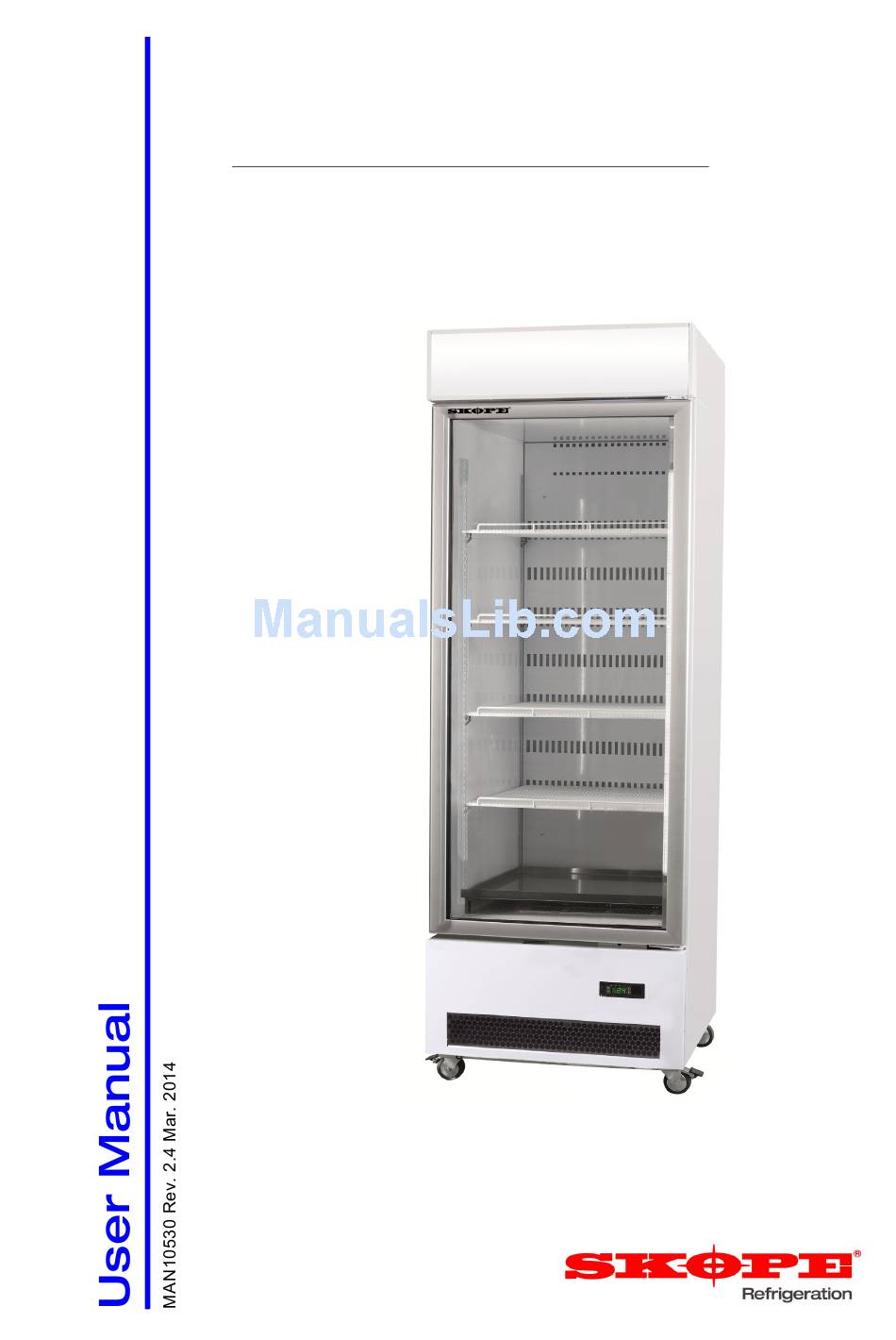

B600-2/B600G-2
SKOPE Single Door Vertical Chiller
B600-2 (no sign)
B600G-2 (lit sign)
G60EV/X5990
G60EV
B600G-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B600G-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Skope B600G-2

  • Page 1 B600-2/B600G-2 SKOPE Single Door Vertical Chiller B600-2 (no sign) G60EV/X5990 B600G-2 (lit sign) G60EV B600G-2...
  • Page 2 For pricing information on an extended warranty visit www.skope.com/warrantyprotection Service & Support We know you will get years of satisfaction from your new SKOPE product when you follow a few simple preventative maintenance guidelines.
  • Page 3: Table Of Contents

    Troubleshooting......... 15 SKOPE B600-2/B600G-2...
  • Page 4: Installation

    SKOPE B600-2/B600G-2 Installation Safety First Always observe safety precautions when using any electrical appliance. Read these instructions carefully and retain them for future reference. When the appliance is used by or near young children or infirm persons,  close supervision is necessary, especially to ensure children do not play with it.
  • Page 5: Positioning The Cabinet

    SKOPE B600-2/B600G-2 Positioning the Cabinet Chiller The location of the chiller may be the single most important decision that will Location extend its life and ensure economical, high performance. We recommend that you put the chiller in the coolest place possible because it will use less power and last longer.
  • Page 6: Shelves

    SKOPE B600-2/B600G-2 Shelves The chiller is supplied with four wire shelves and one solid bottom stainless steel shelf. Bottom Shelf The solid bottom shelf is fixed into place on the floor of the chiller. It is important that this shelf is always in place as it directs the interior air circulation.
  • Page 7: Operation

    The condenser fan starts when the chiller is plugged in. The lights that illuminate the cabinet interior and top sign Lighting (top sign fitted to B600G-2 only) will come on when the chiller is turned on. An electronic controller runs the chiller and is visible Electronic behind the front panel.
  • Page 8: Ems Controller Operations

    SKOPE B600-2/B600G-2 EMS Controller Operations Introduction The Energy Management System (EMS) controller is located inside the refrigeration unit compartment, with the faceplate visible behind the front panel. The EMS controller detects variable business hours and switches the chiller to active mode approximately two hours prior to opening, and then changes to stand-by mode at close of business.
  • Page 9: Faceplate

    SKOPE B600-2/B600G-2 Faceplate Because the EMS controller plays such an important role, it’s helpful to know the parts of the faceplate you will use. Item Description DEFROST button. Manually activates an additional defrost cycle, and used to program the controller.
  • Page 10: Temperature Setpoint

    The chiller temperature setpoint is factory set at 1°C. If necessary the Setpoint standard setting can be adjusted between 0°C and 4.0°C. SKOPE do not recommend that the setpoint be changed unless it is absolutely necessary, and then only by small increments at a time.
  • Page 11: Messages And Alarms

    SKOPE B600-2/B600G-2 7. Push the down button to nagivate to the parameter menu. PS will show on the display. 8. Push the set button to enter the parameter menu. 9. Push and hold the set button to scroll through the parameter menu.
  • Page 12: Servicing

    SKOPE B600-2/B600G-2 Servicing Isolating Electrics You should isolate the cabinet from the power supply before attempting any maintenance. Use the isolating switch to turn off electrics to the cabinet and refrigeration unit without unplugging the cabinet from the wall. The isolating switch is located on the right hand side of the refrigeration unit compartment.
  • Page 13: Lighting

    SKOPE B600-2/B600G-2 Lighting This chiller is designed for use with LED tubes and is not compatible with fluorescent tubes. IMPORTANT DO NOT use fluorescent tubes. Interior Light The cabinet interior is lit by one 19 Watt T8 LED tube (Ø26mm x 1200mm), which can be replaced without moving shelves or removing product.
  • Page 14: Sign Light

    SKOPE B600-2/B600G-2 Sign Light B600G-2 only. The sign unit is lit by one 11 Watt T8 LED tube (Ø26mm x 600mm), which can be replaced by removing the front sign panel. To replace the sign light 1. Remove the front panel and isolate the chiller from the mains power supply (see page 12).
  • Page 15: Troubleshooting

    SKOPE B600-2/B600G-2 Troubleshooting For questions about the EMS controller, see “Messages and Alarms” on page 11. For problems with the cabinet and refrigeration cassette, use the following table. Problem Possible Cause Suggestions • Cabinet not • Loss of power • Check mains power supply.
  • Page 16 E-mail: enquiry@skope.com.au Website: www.skope.com.au Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after their state, condition, get-up or packaging has been altered in any manner •...
