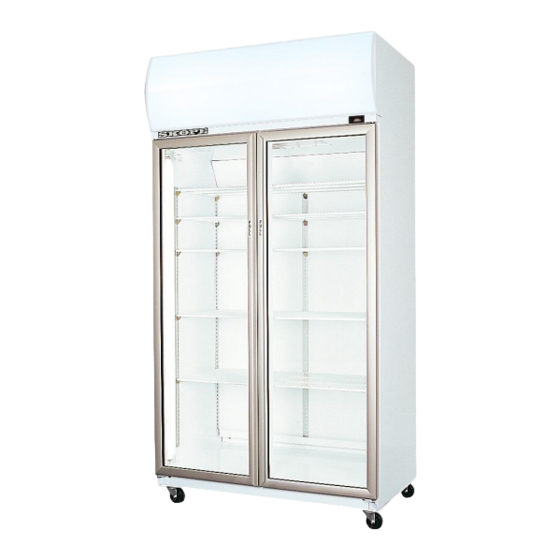

  • Page 1 Vertical Display and Storage TME650/1000 SKOPE One and Two Door Vertical Chillers...

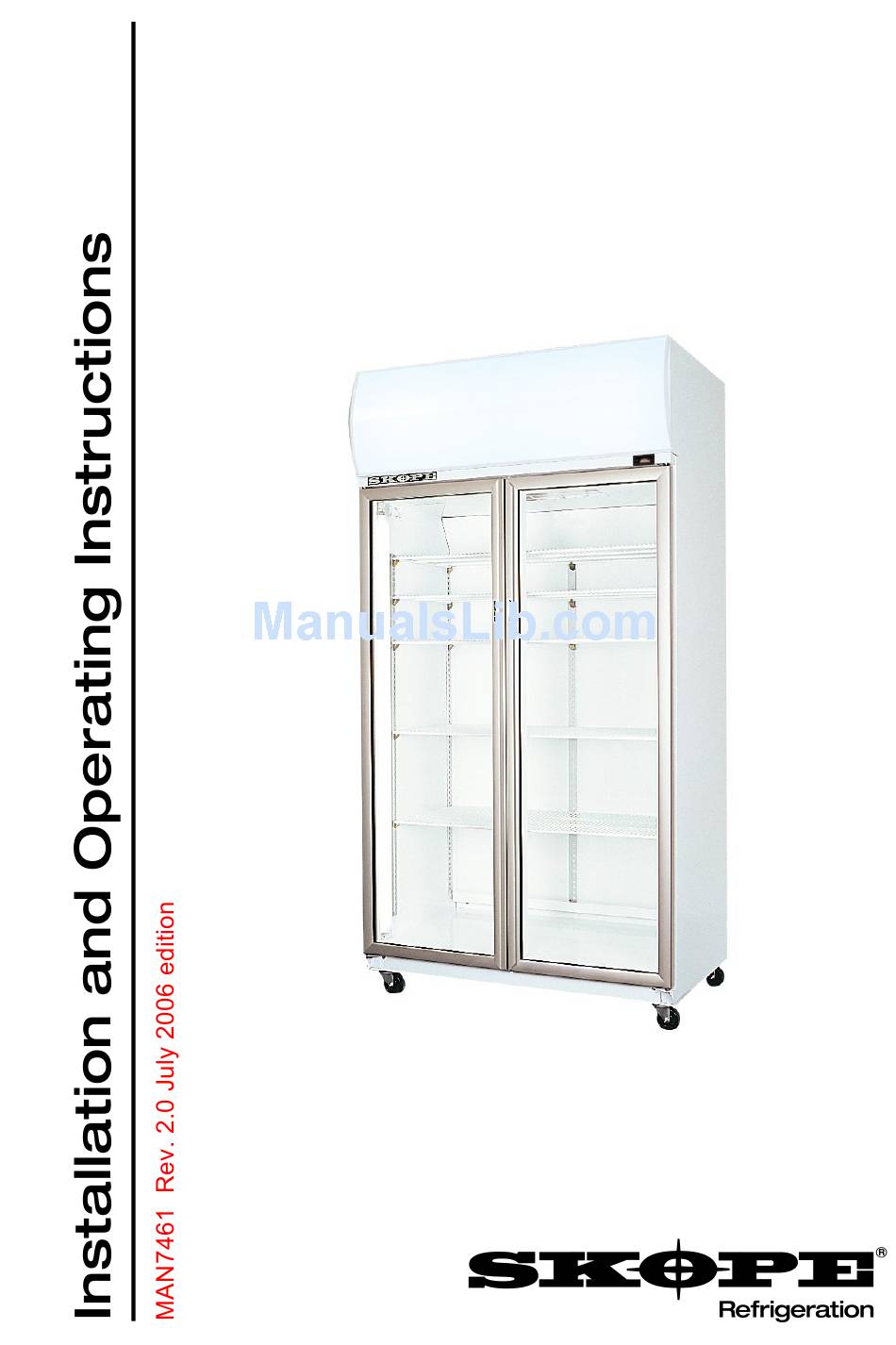

  • Page 2 TME650/1000 SKOPE One and Two Door Vertical Chillers Installation and Operating Instructions MAN7461 Rev. 2.0 July 2006 edition. Copyright © 2006 SKOPE Industries Limited. All rights reserved. SKOPE Industries Limited reserve the right to alter specifications without notice. is a registered trade mark of SKOPE Industries Limited.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INSTALLATION Safety Information ....... . . 4 Positioning the Cabinet .

  • Page 4: Installation

    INSTALLATION Safety Information When using any electrical appliance, safety precautions should always be observed. Read these instructions carefully and retain for future reference. • When used by, or near, young children or infirm persons, close supervision is necessary. Young children should be supervised to ensure that they do not play with the appliance.

  • Page 5: Positioning The Cabinet

    • Do not overload the power supply. Model TME650 is rated at 3.45A. Model TME1000 is rated at 4.46A. Important: For efficient operation of the cooler, it is essential that adequate ventilation be provided above the refrigeration unit.

  • Page 6: Fitting The Sign Unit

    INSTALLATION 1.3 Fitting the Sign Unit For transit purposes the sign unit and sign side panels are packed inside the cabinet. To fit the sign unit assembly to the top of the cabinet: 1. Fit both the sign side panels over the four retaining screws on top of the cabinet.

  • Page 7: Fitting The Shelves

    INSTALLATION 1.4 Fitting the Shelves The chiller is supplied with five cabinet shelves, which may be positioned at different heights to suit various products. Depending on the model cabinet, each shelf is held in place with either four or six shelf clips, which engage in the shelf support strips. The support strips are marked with a ‘+’...

  • Page 8: Operation

    OPERATION 2.1 Cabinet Operation Connect the cabinet to the mains power supply and check operation of the refrigeration unit and cabinet lighting. NOTE: After moving the chiller, allow the cabinet to stand for at least 30 minutes before connecting to the power supply. Refrigeration Unit The compressor, and evaporator and condenser fans should all operate continuously from the time the cabinet is plugged in.

  • Page 9: Maintenance

    MAINTENANCE 3.1 Lighting Cabinet Interior lights Depending on the model cabinet, the chiller has either one or two interior side lights. Each side light houses a 35 Watt T5 fluorescent tube (Ø16mm x 1450mm), which may be replaced without removing shelves or product from the cabinet.
  • Page 10 MAINTENANCE Sign Light The TME1000 sign unit is fitted with a 21 Watt T5 fluorescent tube (Ø16mm x 850mm). The TME650 sign unit is fitted with a 14 Watt T5 fluorescent tube (Ø16mm x 550mm).To replace the fluorescent tube: 1. Disconnect the cabinet from the mains power supply.

  • Page 11: Cleaning

    MAINTENANCE 3.2 Cleaning When necessary, wipe both the interior and exterior of the cabinet with a damp cloth. Ensure the cabinet is disconnected from the mains power supply before cleaning the cabinet. Periodic cleaning of the condenser coil is also recommended. Condenser coil The condenser coil MUST be kept clean for efficient and reliable operation.

  • Page 12: Advanced Servicing

    MAINTENANCE 3.3 Advanced Servicing Advanced servicing should be carried out by an authorised service agent. SKOPE Cyclone unit service instructions can be found on top of the refrigeration unit. More detailed service and spares information is available in the SKOPE TME650/1000 Service Manual (P/No. MAN7462). 3.4 Contact Addresses New Zealand (Head Office) SKOPE INDUSTRIES LIMITED...
