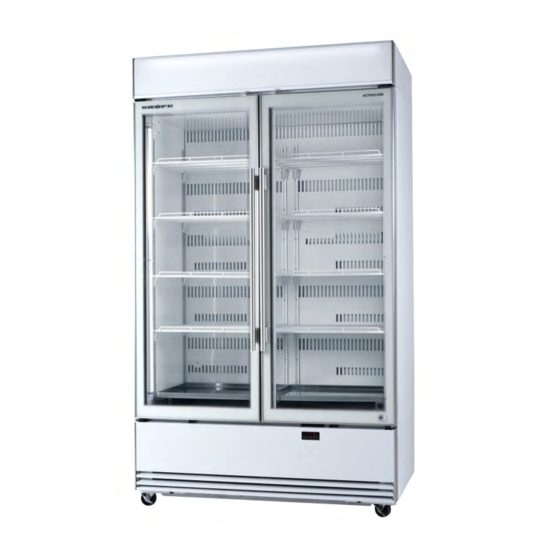

SKOPE Bottom Mount Vertical Chiller
BME1200-AC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BME1200-AC and is the answer not in the manual?

Questions and answers

Summary of Contents for Skope BME1200-AC

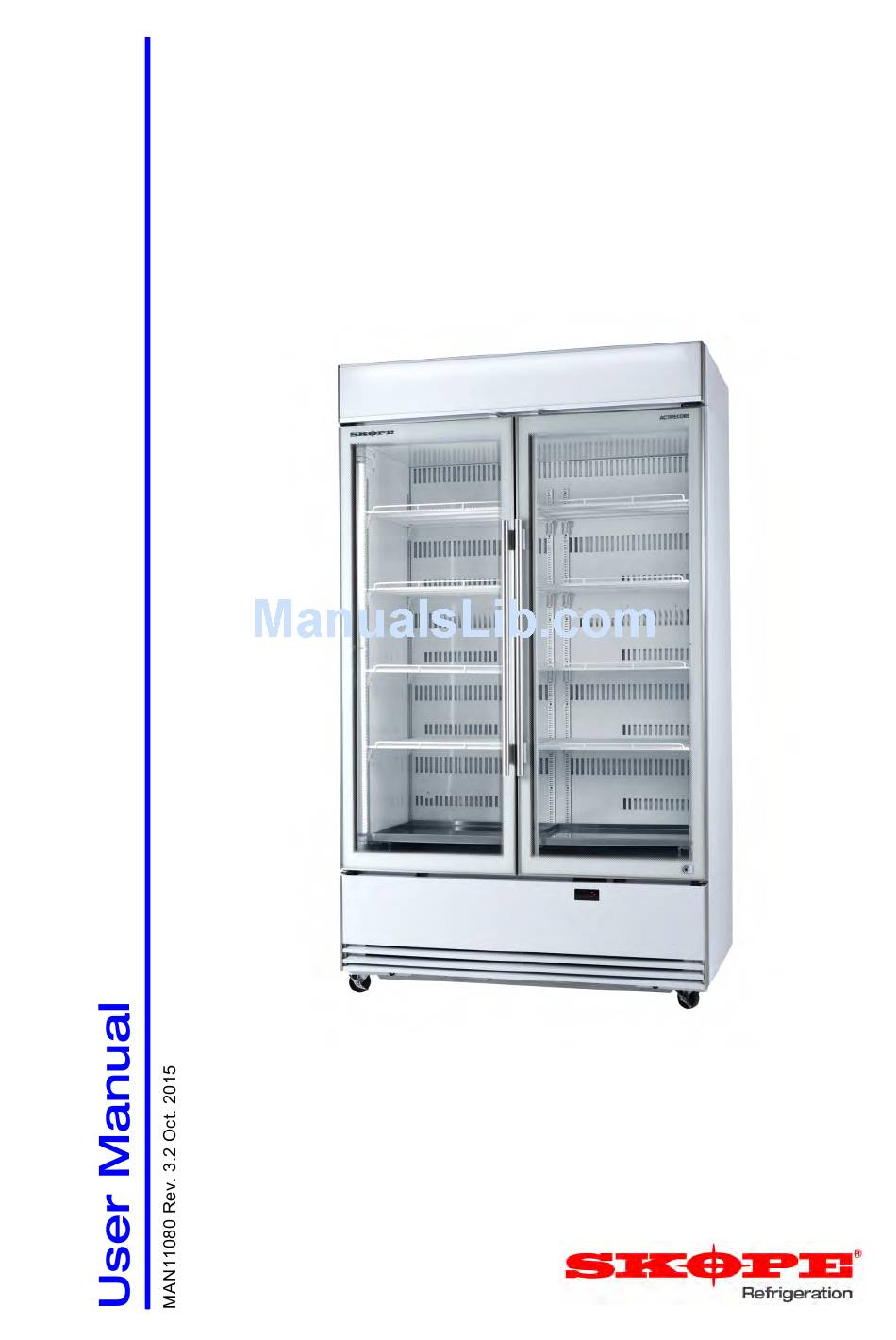

  • Page 1 BME ActiveCore SKOPE Bottom Mount Vertical Chiller BME1200-AC...
  • Page 2 For pricing information on an extended warranty visit www.skope.com/warrantyprotection Service & Support We know you will get years of satisfaction from your new SKOPE product when you follow a few simple preventative maintenance guidelines.
  • Page 3: Table Of Contents

    Troubleshooting......... 19 SKOPE BME ActiveCore...
  • Page 4: Installation

    Do not store explosive substances such as aerosol cans with a  flammable propellant in this appliance. Please contact SKOPE Customer Services for advice regarding  disposal of this appliance. CAUTION Never overload the power supply, which could damage the chiller and product.
  • Page 5: Positioning The Cabinet

    SKOPE BME ActiveCore Positioning the Cabinet Climate Class The chiller is designed to operate within a climate class 5 environment (40°C @ 40% RH). We recommend that you put the chiller in the coolest place possible because it will use less power and last longer.
  • Page 6: Door Handles

    SKOPE BME ActiveCore Door Handles Fitting Door For transit purposes the door handles may be packed separately inside the Handles cabinet. If the door handles are packed separately, follow the steps below to fit them to the door/s. To fit a door handle 1.
  • Page 7: Removing Door Handles

    SKOPE BME ActiveCore Removing The door handles can be removed for transporting and moving the cabinet Door Handles through doorways. To remove a door handle 1. Open the door, and peel back the door gasket from behind the handle mounts on the inside of the door frame.
  • Page 8: Shelves

    SKOPE BME ActiveCore Shelves The chiller is fitted with wire shelves, which may be positioned at different heights to suit various products, and solid bottom shelf/ves. Solid bottom shelves are held in place by brackets attached to the floor of the chiller. It is important that solid bottom shelf/ves are always in place as they direct the interior air circulation.
  • Page 9: Repositioning Shelves

    SKOPE BME ActiveCore Repositioning When repositioning standard shelves, unload and remove the shelf, Shelves establish the desired position and slide the shelf clip in each of the shelf support strips to the desired position (see “To slide a shelf clip up and down”...
  • Page 10: Operation

    COMPRESSOR light is lit on the electronic controller. The Condenser Fan compressor and condenser fan will turn off when the product temperature reaches around +2°C, and on again when it reaches about +4°C (SKOPE BME ActiveCore default settings). The evaporator fan starts approximately three seconds after Evaporator Fan the compressor and condenser fan.
  • Page 11: Loading Product

    SKOPE BME ActiveCore Loading Product Let the chiller run 30 minutes before loading it with product the first time. When loading the shelves with product: Allow adequate air space around each item to ensure even cooling and  efficient operation of the chiller.
  • Page 12: Electronic Controller

    The chiller is fitted with a Carel S4 electronic controller which is visible through a cutout in the cabinet front panel. The electronic controller is pre- programmed and requires no initial setup or additional programming. SKOPE does not recommend that the settings be changed unless it is absolutely necessary. CAUTION The electronic controller must only be adjusted by an authorised service agent.
  • Page 13: Normal And Energy Saving Modes

    SKOPE BME ActiveCore Normal and The electronic controller is programmed to run the chiller in ‘Normal’ mode Energy Saving or ‘Energy Saving’ mode. Modes When plugged in, the chiller will run in ‘Normal’ mode. If the front door/s are not opened for a specified time period (default setting is three hours), the electronic controller will switch the chiller from ‘Normal’...
  • Page 14: Door Switch

    1°C and 15°C for other specialist applications if required (see below). SKOPE do not recommend that the setpoint be changed unless it is absolutely necessary, and then only by small increments at a time.
  • Page 15: Servicing

    SKOPE BME ActiveCore Servicing Isolating Electrics The chiller MUST be isolated from the power supply before attempting any maintenance. Either unplug the cabinet from the wall or use the isolation switch to turn off electrics to the cabinet and refrigeration unit. The isolation switch is located behind the cabinet front kick panel, on the right-hand side of the refrigeration unit compartment.
  • Page 16: Cleaning

    SKOPE BME ActiveCore Cleaning Cabinet Periodically wipe the inside and outside of the cabinet with a damp cloth, taking care to keep moisture away from electrical parts. As with any maintenance, ensure the chiller is isolated from the power supply before cleaning.
  • Page 17 SKOPE BME ActiveCore To clean the condenser coil 1. Remove the front panel and isolate the chiller from the power supply (see “Isolating Electrics” on page 15). 2. Brush the condenser coil with a soft brush to remove any dust and fluff.
  • Page 18: Lighting

    Sign Light BME600-AC and BME1200-AC chillers are fitted with a lit sign. In the event of sign light failure, a service call should be arranged so that a replacement LED tube can be fitted.
  • Page 19: Troubleshooting

    SKOPE BME ActiveCore Troubleshooting For questions about the electronic controller, see page 12. For problems with the cabinet and refrigeration unit, use the following table. Problem Possible Cause Suggestions • Cabinet not operating. • Loss of power supply. • Check mains power supply.
  • Page 20 E-mail: enquiry@skope.com.au Website: www.skope.com.au Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after their state, condition, get-up or packaging has been altered in any manner •...
