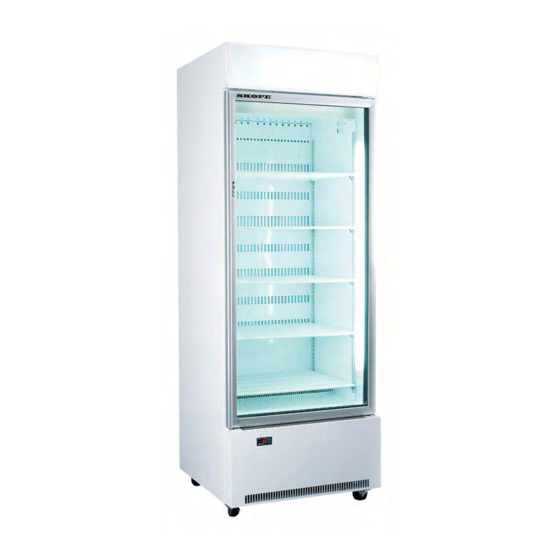

- Page 1 Vertical Display and Storage B550/660-2 BME550-2 SKOPE Gen2: Single Door Chiller...
- Page 3 E-mail: enquiry@skope.co.nz Website: www.skope.co.nz Australia SKOPE AUSTRALIA PTY LTD A.C.N. 000 384 270 PO Box 7543, Baulkham Hills B.C. NSW 2153, Australia Freephone: 1800 121 535 Fax: 1800 121 533 E-mail: enquiry@skope.com.au Website: www.skope.com.au B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller...
- Page 4 SKOPE Industries Limited. TRADE MARK INFRINGEMENT The SKOPE trade mark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after their state, condition, get-up or packaging has been altered in any manner •...
- Page 5 Sign Unit ........29 B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller...
- Page 6 Refrigeration Unit: UB40AAC ..... . . 60 Refrigeration Unit: UB30AAC ..... . . 61 B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller...
-
Page 7: Cabinet And Refrigeration Unit
800mm 750mm Floor area: 0.56m 0.6m 0.56m Internal volume: 558 litres 658 litres 558 litres Refrigeration Electronic controlled, bottom mounted SKOPE refrigeration unit Model: UB40AAC UB30AAC Nominal capacity: 581 Watts 581 Watts Compressor: Electrolux GLY90RA Electrolux GLY90RA Refrigerant: R134a / 465 grams... -
Page 8: Safety Information
• Do NOT probe any opening. • Only use this appliance with voltage specified on the rating label. • Ensure adequate ventilation of the SKOPE refrigeration units. • Be careful not to touch moving parts and hot surfaces. • Regulations require that all electrical work be carried out by authorised persons. -
Page 9: Operation Of Machine
The compressor ‘on’ LED will indicate when the compressor is operating. The controller is located in the front kick panel (see page 14 for further controller operation). B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 10: Cabinet Lighting
Ensure the mains isolating switch is turned back on after servicing. IEC Socket Refrigeration Unit Isolating Switch Mains Flex Figure 1: Isolating Switch B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 11: Shelving
• Leave an airspace of at least 75mm (3") above packages etc. on the top shelf. Shelf Support Strip Shelf Shelf Clip ‘+’ Mark Figure 2: Shelf Clip B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 12: Cleaning
Periodic cleaning of the condenser coil is also recommended (see page 40 for cleaning instructions). Caution: Disconnect the cabinet from the mains power supply before cleaning. B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 13: Controller Display
Press both keys simultaneously, to lock and unlock the keypad Press both keys simultaneously, to enter the programming mode Press both keys simultaneously, to return to room temperature display Table 2: Controller Operation B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 14: Meaning Of Leds
Temperature alarm (see page 19) Table 3: LED Functions 3.2 Controller Operation The SKOPE electronic controller controls and displays the cabinet temperature. The preset temperature setting controls the product temperature between 2°C and 4°C. The electronic controller also signals system and temperature alarms (see Table 5 on page 19). -
Page 15: Programming Controller
LED will start blinking. 3. To change the Set value, push the UP or DOWN keys. 4. To memorise the new Set Point value, push the SET key again or wait 15 seconds. B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 16: Electronic Controller
1. The Set value is stored even when the procedure is exited, by waiting for the time-out to expire. 2. Dependent on customer requirements, the SKOPE electronic controller may have different parameter configurations (see ‘Controller Parameters’ in Table 4 on pages 18). To ensure the... - Page 17 1. Press and hold the SET key for more than 3 seconds, while the maximum or minimum temperature is displayed. The ‘rSt’ message will be displayed. 2. To confirm the operation, the ‘rSt’ message starts flashing and the normal temperature will be displayed. B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller...
-
Page 18: Parameters
0 to 23.5 hours Condenser alarm temperature delay at start up OP / CL Alarm relay polarity OTHER PARAMETERS Thermostat probe read out Condenser probe read out Software release Map code Table 4: Controller Parameters B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 19: Alarm Displays
• Condenser Stage TWO over-temperature alarm (CSd) recovers by disconnecting and reconnecting the cabinet mains power supply (or isolation switch), which will reset all the alarms. • Cabinet temperature alarms (LO and HI) automactically stop at temperature recovery. B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 20: Replacement
ELECTRONIC CONTROLLER 3.6 Replacement If the SKOPE electronic controller has a suspected fault, care must be taken to ensure accurate diagnosis. The controller has various programmable parameters that effect operation such as time delay and defost modes (see Table 4 on page 18). -
Page 21: Controller Removal
7. Fitting the controller is a reversal of these instructions. Push-on Terminals Controller Controller Box Controller Keyhole Fixing Screws Cabinet Kick Panel Controller Fixing Clip Figure 4: Figure 5: Removing the Controller Box Removing the Controller B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 22: Replacement Controller
This change is effective from February 2005, cabinet serial no. A050212714. Figure 6: Figure 7: Dixell XR30C ELZ0471B Dixell XR30C ELZ0471 Rev B Controller Rev A Controller B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 23: Dixell Controller Wiring
However, the connections at the refrigeration system electrical junction box remain the same. Figure 9: Figure 8: Dixell XR30C ELZ0471 Dixell XR30C ELZ0471B Rev A Controller Rev B Controller B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 24: Interior Side Light
5. When refitting the diffuser, engage the back section into the housing, and then compress and snap the front section of diffuser back into place working down the full length of the light. Diffuser Fluorescent Tube Figure 10: Replacing the Fluorescent Tube B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 25: Door
(see Figure 11 below). Should the gasket be out of shape when in place, use hot air (i.e. from hair drier) to realign. Gasket Retainer Door Gasket Door Frame Figure 11: Door Gasket Removal B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... - Page 26 In the event the door tension can no longer be adjusted, the torsion bar may need replacing (see ‘Torsion Bar Replacement’, page 27). Door Bottom Hinge Bracket Split Pin Cabinet Kick Panel Capstan Figure 12: Door Tension B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller...
- Page 27 7. Refit the door to the cabinet and adjust the tension (see ‘Door Tension’ on page 26). Door Frame Torsion Bar ‘round hook end’ Door Bush Capstan Figure 13: Door Torsion Bar Assembly B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller...
- Page 28 4. Refit torsion bar assembly into the opposite end of the door. 5. Refit top door bush. 6. Refit the door to the cabinet (see ‘Door Removal’, above). 7. Re-tension the door (see ‘Door Tension’ on page 26). B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller...
-
Page 29: Sign Unit
5. The fluorescent tube can now be accessed for replacement (see figure 16 on page 30). Sign Top Cover Sign Top Cover Corner Notch Corner Notch Sign Panel End Strip Sign Panel Figure 14: Removing Sign Panel Figure 15: Sign Corner Detail B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... - Page 30 Fluorescent Tube Sign Wiring Cover Sign Top Cover Sign Unit Sign Panel End Strip Sign Panel Sign Bottom Cover Sign ENSTO 3-pole Plug Figure 16: Sign Unit (with sign panel removed) B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller...
- Page 31 6. The electronic ballast, mounted on the back of the sign wiring cover, can now be accessed for replacement (see Figure 17 below). Electronic Ballast Sign Wiring Cover Connector Block Figure 17: Electronic Ballast B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller...
- Page 32 2. Loosen the keyhole screws, holding side panels to cabinet top. 3. Slide the side panels forward to disengage the keyholes. Sign Retaining Clip Sign Side Panel Sign Back Panel Figure 18: Sign Retaining Clip Figure 19: Sign Back Panel B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller...
-
Page 33: Refrigeration Unit
SERVICE INSTRUCTIONS 4.4 Refrigeration Unit The SKOPE Cyclone® unit is a self-contained refrigeration module, which aligns with port holes in the floor of the cabinet. Air is drawn through the evaporator and blown up the back duct. Air returns to the evaporator through the floor port hole. -
Page 34: To Remove The Refrigeration Unit
Refrigeration Unit Junction Box 3-Pole Socket Unit Side Baffle Guide Rail Keyhole Cabinet Wiring Screws Junction Box Unit Bottom Cabinet Sidelight Baffle 5-Pole Plug Cabinet Roof Top 3-Pole Plug Figure 21: Cabinet Wiring Junction Box B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... - Page 35 12. Important: ensure the cabinet sidelight and roof top supply flexes are drawn safely clear of the unit. IEC Socket Refrigeration Unit Isolating Switch Mains Flex Figure 22: Isolating Switch B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller...
-
Page 36: To Re-Install The Refrigeration Unit
6. Refit the cabinet wiring junction box and cabinet kick panel. 7. Reconnect the cabinet to the mains power supply. Refrigeration Unit Junction Box 3-Pole Socket Unit Handle Unit Side Baffle Unit to Mains Isolating Box Flex Figure 23: Removing Refrigeration Unit B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 37: Refrigeration Unit Junction Box
Fan Reversing Timer Resistor Condenser Fan Shroud Evaporator Box Fan Motor Capacitor Unit Junction Box Earth Wire Condenser Compressor Fan Motor Refrigeration Unit Junction Box Cabinet Supply Socket Figure 24: Refrigeration Unit Junction Box B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 38: Evaporator Fan Motor Assembly
Evaporator Fan Evaporator Motor Junction Box Motor Assembly Evaporator Motor Fan Blade Refrigeration Unit Junction Box Evaporator Motor Flex Fan Motor Capacitor Figure 25: Figure 26: Evaporator Fan Motor Assembly Evaporator Motor Junction Box B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 39: Condenser Fan Motor Assembly
Mounting Bracket Condenser Fan Fixing Screws (2) Motor Assembly Unit Junction Box Condenser Fan Motor Fan Blade Condenser Coil Condenser Fan Motor Flex (disconnected from unit junction box) Figure 27: Condenser Fan Motor Assembly B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 40: Cleaning The Condenser Coil
The cabinet MUST be disconnected from the mains power supply before cleaning the condenser coil. Cabinet Door (open) Kick Panel Keyhole Fixing Screw Condenser Coil Cabinet Wiring Junction Box Keyhole Fixing Screw Cabinet Kick Panel Figure 28: Condenser Coil B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 41: Recommended Service Procedures
SERVICE INSTRUCTIONS Recommended Service Procedures SKOPE recommend the SKOPE Cyclone® demountability and exchangeability philosophy, which in essence means: The customer must not be inconvenienced during system maintenance. In the unlikely event of Refrigeration failure, an exchange unit is simply swapped in a matter of minutes. There is no cabinet down time or unloading product. -
Page 42: Compressor Not Pumping Efficiently
Finally, pinch-off the gauge process lines (or remove line piercing valves) and braze the system closed. SKOPE recommend against leaving service valves in the system as these are prone to leak (and are open to abuse). Perform a final system leak test. -
Page 43: Refrigerant R134A Handling Precautions
• The drier must be replaced every time the system is opened. • Clean work practices are essential. • SKOPE recommend brazing the system closed after service - as valves are prone to leak due to the nature of R134a. -
Page 44: Cabinet Wiring Junction Box
9. When refitting the cabinet wiring junction box to the cabinet, ensure the cabinet roof top supply and sidelight flexes are both plugged in and the cabinet wiring junction box is plugged into the refrigeration unit junction box. B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... - Page 45 SERVICE INSTRUCTIONS ENSTO 5-Pole Socket 3 Amp Ceramic Fuse ENSTO 3-Pole Socket Electronic Ballast Screw Keyhole Cabinet Junction Box Lid Cabinet Junction Box to Unit Junction Box Flex Figure 29: Cabinet Wiring Junction Box B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller...
-
Page 46: Mains Isolating Box
4. The isolating switch, IEC socket and mains supply flex can now be replaced if necessary. See Spares section for component part numbers. IEC Socket Refrigeration Unit Isolating Switch Mains Flex Figure 30: Mains Isolating Box B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 47: Pressure Temperature Chart
26.6 23.0 28.4 25.0 30.2 26.0 32.0 28.0 33.8 29.0 35.6 31.0 37.4 33.0 39.2 34.0 41.0 36.0 42.8 38.0 44.6 40.0 46.8 42.0 48.2 44.0 50.0 46.0 Table 7: Pressure Temperature Chart B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 48: Troubleshooting
Replace if necessary. Compressor motor has a winding Check resistance values. open or shorted. Replace compressor if neces- sary. Internal mechanical trouble in com- Replace compressor. pressor. Table 8: Troubleshooting - continued on next page B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... - Page 49 Check refrigerant charge (fix suction gas cooling. leak), add if necessary. Check return vapour temperature and suction superheat. Comp’r motor has a winding shorted. Replace compressor. Table 8: Troubleshooting - continued on next page B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller...
- Page 50 Compressor not pumping Replace compressor. efficiently. Filter dirty (if applicable). Clean or replace. Faulty fan motor. Check rotation. Replace if necessary. Table 8: Troubleshooting - continued on next page B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller...
- Page 51 12. Unit noisy. Loose parts or mountings. Find and tighten. Tubing rattle. Reform to be free of contact. Bent fan blade causing vibration. Replace blade. Fan motor bearing worn. Replace motor. Table 8: Troubleshooting B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller...
-
Page 52: Model: B550/660-2, Bme550-2
WIRING DIAGRAM 5.1 Model: B550/660-2, BME550-2 Dixell XR30C Rev. B Controller B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 53: Wiring Diagram
* LE denotes fan motor orientation as viewed from the lead end. ** The wiring diagram opposite shows the Rev A electronic controller, with an insert showing the Rev B controller (see page 22 for more information on the two variations). B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 54: Cabinet Assembly
(B660-2) Shelf (B550-2) WRKV6000/J70 Shelf (BME550-2) V6000/J70-32 Shelf (B660-2) WRKC7200/J70 Shelf Bracket V0973-99 Light Junction Box - R/H V48BA/170 Condenser Baffle UB40AA/A62-GT Bottom Baffle UB40AA/C93-GT Swivel Castor SXX4339 Swivel Castor - lockable SXX4539 B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 55: Interior Side Light
6.2 Interior Side Light Part Description SKOPE P/No. Customer P/No. T5 Side Light Assembly - R/H V48BA/L85-32 T5 Side Light Assembly - L/H V48BB/L85-32 28 Watt T5 Fluorescent Tube ELL0603 T5 Lampholder ELZ0600 Light Cover V48BA/E71 B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 56: Cabinet Wiring Junction Box
ENSTO Socket - 5 Pole ELZ0499-5 ENSTO Adaptor - 3 Pole PLM0497-3 ENSTO Adaptor - 3 Pole PLM0497-5 Single Electronic Ballast ELZ0605 3 Amp Ceramic Fuse ELZ9654 Fused Terminal Block ELZ9655 Cabinet Supply Flex V48BA/X03 B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... - Page 57 6.4 Mains Isolation Box Part Description SKOPE P/No. Customer P/No. Mains Isolation Box Ass’y V48BA/E80 Mains Isolation Box Base V48BA/E81-GT Mains Isolation Box Cover V48BA/E82-GT IEC Socket Outlet ELK8880 2-Pole Isolating Switch ELS0495 Mains Flex V4800/E53 B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller...
-
Page 58: Door
(B660-2) Gasket Retainer - Vertical D6660/765 Torsion Bar Assembly REF5014 Bush PLM5075 Capstan TUR5100 Cotter Pin FAS5076 Top Hinge Assembly - R/H V4750/388 Bottom Hinge - R/H V48BA/393 Bottom Hinge - L/H V48BA/394 B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 59: Sign Unit
(B660-2) Sign End - R/H D66BA/S13 Sign End - L/H D66BA/S14 Sign Reflector (B550-2) V48BA/S15-32 Sign Reflector (B660-2) D66BA/S15-32 Curved Sign Panel (B550-2) V4800/S17V Curved Sign Panel (B660-2) Wiring Cover Assembly V48BA/S18 (B550-2) Wiring Cover Assembly D66BA/S18 (B660-2) Wiring Cover (B550-2) -
Page 60: Refrigeration Unit: Ub40Aac
UB40AA/R87-GT Junction Box Cover UB40AA/R88-GT RFI Suppression Capacitor ELC8068 Motor Capacitor ELC9142NC HONGFA Relay ELR0494 OMRON Relay ELR6183 ENSTO Socket ELZ0499-3 Resisistor ELZ7157 Controller Flex Assembly UB40AA/E19 Mains Flex (with IEC plug) UB40AA/E53 B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller... -
Page 61: Refrigeration Unit: Ub30Aac
UB40AA/R87-GT Junction Box Cover UB40AA/R88-GT RFI Suppression Capacitor ELC8068 Motor Capacitor ELC9142NC HONGFA Relay ELR0494 OMRON Relay ELR6183 ENSTO Socket ELZ0499-3 Resisistor ELZ7157 Controller Flex Assembly UB40AA/E19 Mains Flex (with IEC plug) UB40AA/E53 B550/660-2, BME550-2 SKOPE Gen2: Single Door Chiller...
