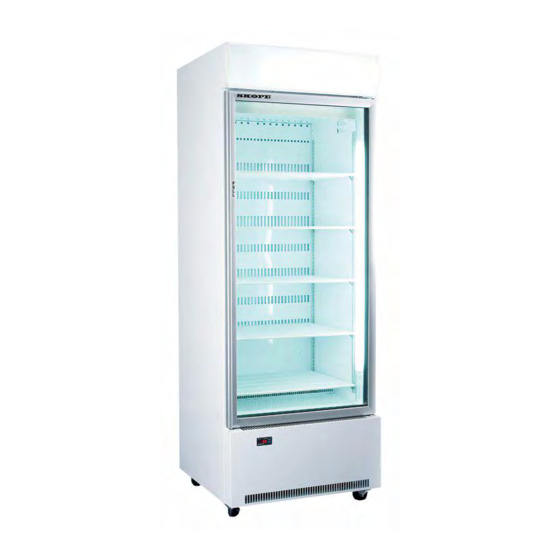

SKOPE Gen2: Single Door Chiller
Type:
B550-2
B660-2
BME550-2
V48BA / V48SA
D66BA
E48BA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B550-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Skope B550-2

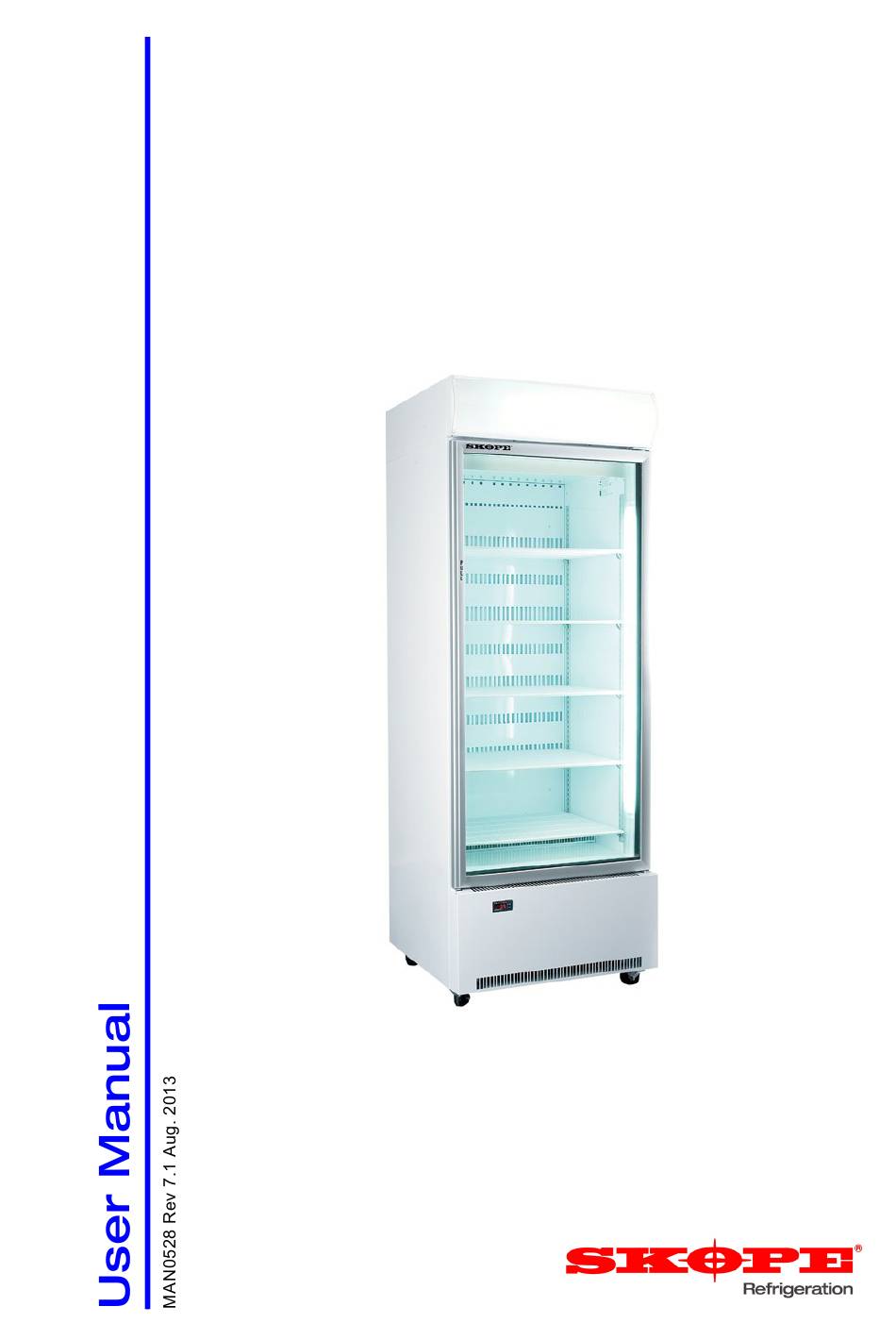

  • Page 1 B550/660-2 BME550-2 SKOPE Gen2: Single Door Chiller Type: B550-2 V48BA / V48SA B660-2 D66BA BME550-2 E48BA...
  • Page 2 E-mail: enquiry@skope.co.nz Website: www.skope.co.nz Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after their state, condition, get-up or packaging has been altered in any manner •...
  • Page 3: Table Of Contents

    Troubleshooting......... 15 SKOPE B550/660-2 and BME550-2...
  • Page 4: Installation

    SKOPE B550/660-2 and BME550-2 Installation Safety First Always observe safety precautions when using any electrical appliance. Read these instructions carefully and retain them for future reference. When the appliance is used by or near young children or infirm persons, ...
  • Page 5: Positioning The Cabinet

    SKOPE B550/660-2 and BME550-2 Positioning the Cabinet Location When positioning the cabinet, avoid direct sunlight and warm draughts etc. The cabinet must NOT be situated where it is affected by hot air from adjacent equipment, as this will compromise the airflow and performance of the chiller.
  • Page 6: Fitting The Kick Panel

    SKOPE B550/660-2 and BME550-2 Fitting the Kick Panel For transit purposes the kick panel is packed inside the cabinet, with the electronic controller temporarily attached to the front of the refrigeration unit. Before fitting the kick panel to the cabinet the controller must be attached to the inside of the kick panel.
  • Page 7: Fitting The Shelves

    SKOPE B550/660-2 and BME550-2 Sign Retaining Clip Sign Side Panel Sign Back Panel Figure 4: Sign Retaining Clip Figure 5: Sign Back Panel Fitting the Shelves Depending on the model, the chiller is supplied with four or five wire shelves which may be positioned at different heights to suit various products.
  • Page 8: Operation

    SKOPE B550/660-2 and BME550-2 Operation Automatic Start-Up After the cabinet has been positioned in a suitable place, plug it in and check the following activity. Item Activity The lights which illuminate the top sign and cabinet interior will initially come on when the machine is turned on. The lights will require a period of time to stabilise following initial start up.
  • Page 9: Electronic Controller

    SKOPE B550/660-2 and BME550-2 Electronic Controller Controller Because the controller plays such an important role, it’s helpful to know the Display parts of the faceplate you will use. Figure 7: Controller Display Item Description Prg / mute: To initiate programme sets, press for 5 seconds. Mutes the audible alarm (buzzer) and deactivates the alarm relay.
  • Page 10: Controller Alarms

    12-13). temperature 4. Unplug cabinet from the power supply for 1 alarm Flashing minute, then reconnect to power supply. If problems persist, contact SKOPE Refrigeration 1. Clean the condenser coil (see pages 12- system high 13). temperature 2. Check refrigeration ventilation. Ensure...
  • Page 11: Temperature Setpoint

    Setpoint standard setting can be adjusted between 1°C and 3.5°C (see below). SKOPE do not recommend that the setpoint be changed unless it is absolutely necessary, and then only by small increments at a time. To view and adjust the temperature setpoint: 1.
  • Page 12: Servicing

    SKOPE B550/660-2 and BME550-2 Servicing Isolating Electrics The refrigeration unit can be totally isolated from the mains power, irrespective of whether the refrigerator is plugged into the mains. To achieve this, switch off the mains isolating switch and disconnect the refrigeration...
  • Page 13: Cleaning

    SKOPE B550/660-2 and BME550-2 Cleaning When necessary, wipe the interior and exterior of the cabinet with a damp cloth. Ensure the cabinet is disconnected from the mains power supply before cleaning. Periodic cleaning of the condenser coil is also recommended.
  • Page 14: Lighting

    SKOPE B550/660-2 and BME550-2 Lighting The cabinet is equipped with interior and sign lighting. On some models (type B39SB) the lights can be turned off and on via the UP/AUX button on the electronic controller (see page 9 for details).
  • Page 15: Troubleshooting

    SKOPE B550/660-2 and BME550-2 Sign Top Cover Sign Top Cover Corner Notch Corner Notch Sign Panel End Strip Sign Panel Figure 11: Removing Figure 12: Sign Sign Panel Corner Detail Troubleshooting Complaint Possible Cause Repair 1. Cabinet not • Loss of power •...
